Setup and Configuration
Adding Port Costs and Priorities 719

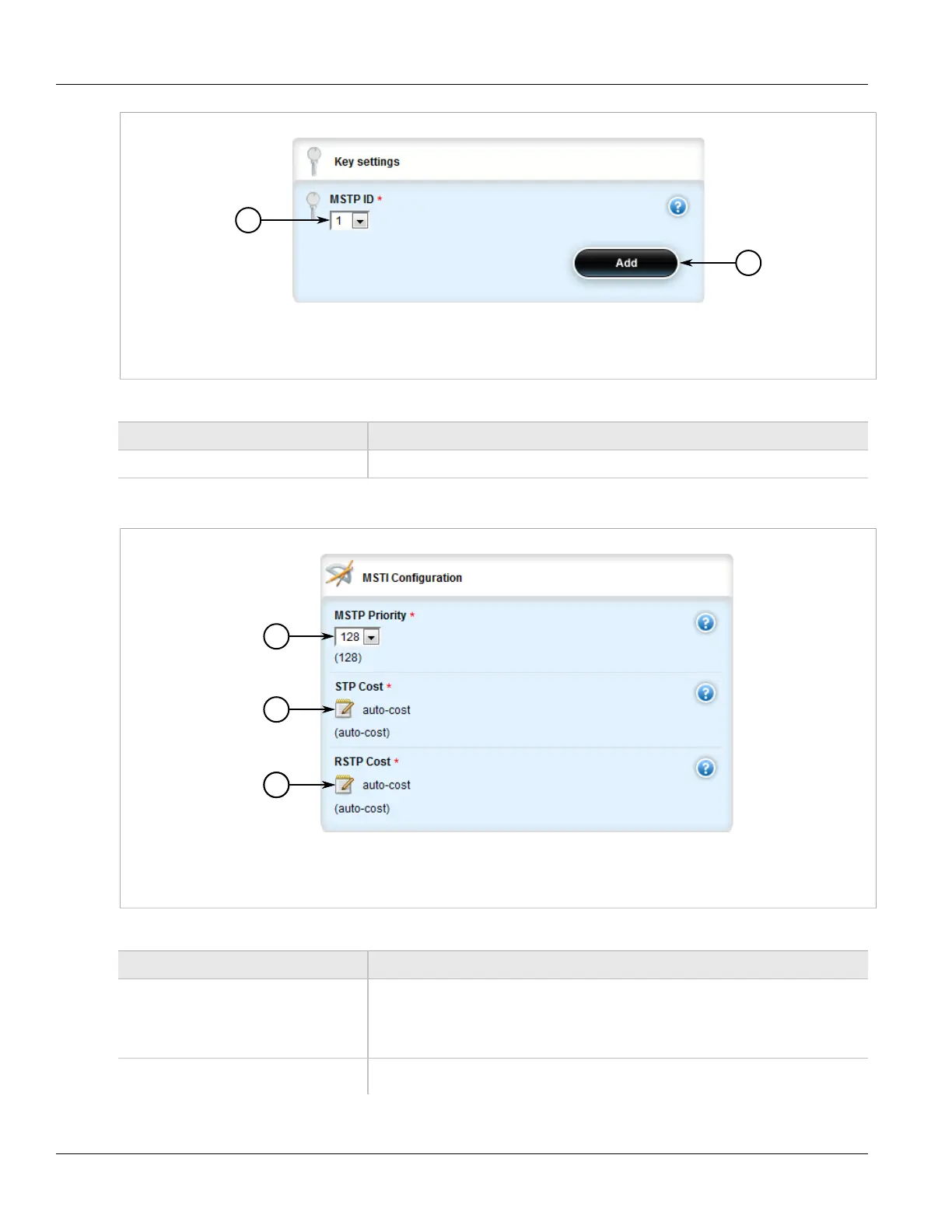

Figure 831: Key Settings Form
1. MSTP ID List 2. Add Button
4. Configure the following parameter(s) as required:
Parameter Description
MSTP ID MSTP Instance Identifier
5. Click Add to create the instance. The MSTI Configuration form appears.
Figure 832: MSTI Configuration Form
1. MSTP Priority List 2. STP Cost List 3. RSTP Cost List
6. Configure the following parameter(s) as required:
Parameter Description
MSTP Priority Synopsis: 16, 32, 64, 96, 112, 128, 144, 160, 176, 192, 208, 224, 240
Default: 128
The STP port priority. Ports of the same cost that attach to a common LAN will select the
port to be used based upon the port priority.
STP Cost Synopsis: auto-cost,
Default: auto-cost
