778 Configuring QoS Marking
Parameter Description
Sets the mark on either a packet or a connection.
mark A mark that corresponds to a class mark (decimal value).
mask (optional) A mask to determine which mark bits will be set.
chain-options Synopsis: forward, postrouting, prerouting
Default: forward
A chain where the set operation will take place.
Configuring a Modify Mark
1. In the menu, click modify. The Mark Choice Modify form appears.

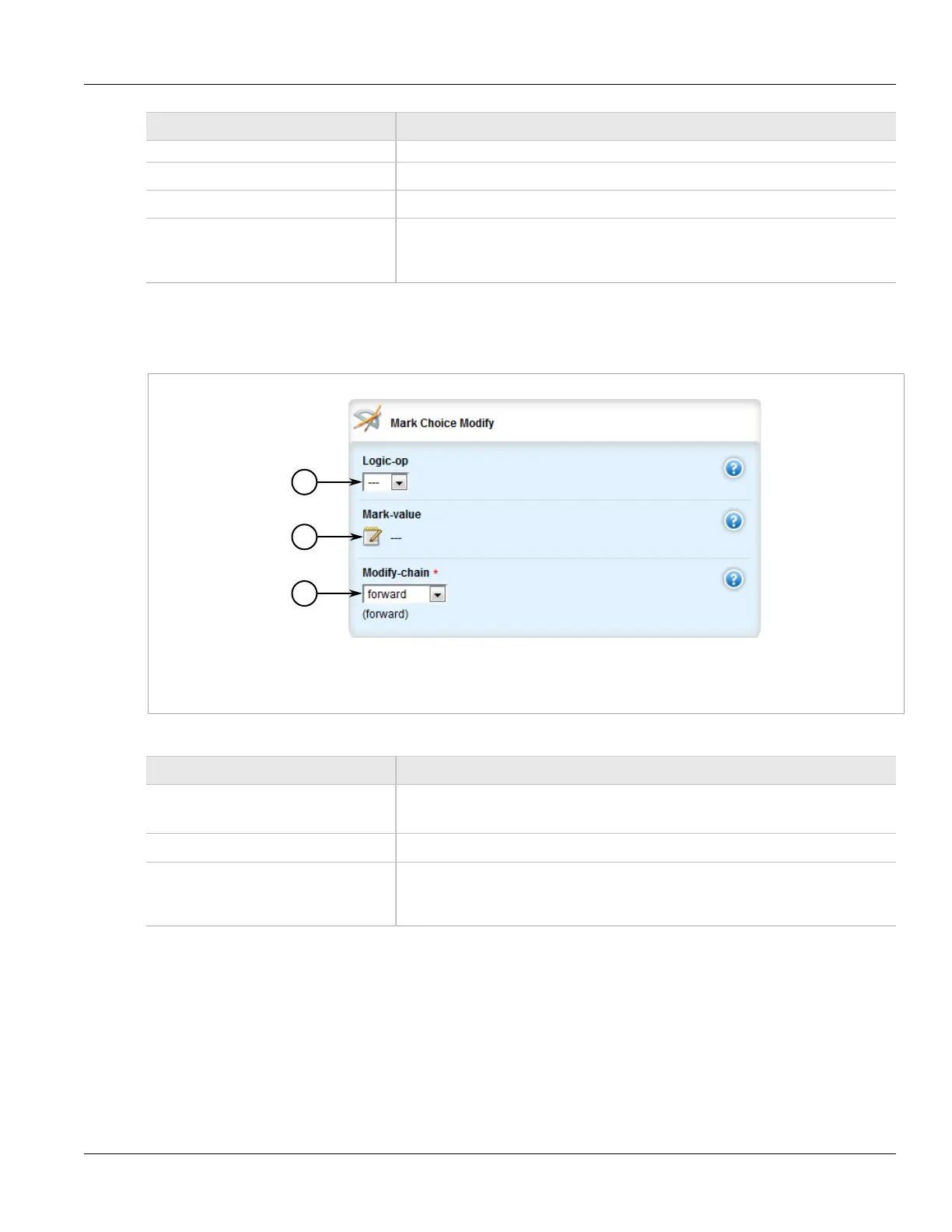

Figure 892: Mark Choice Modify Form
1. Logic Operation List 2. Mark Value Box 3. Modify Chain List
2. Configure the following parameter(s) as required:
Parameter Description
logic-op Synopsis: and, or
A logical operation to perform on the current mark: AND/OR.
mark-value A mark to perform the operation with (decimal value).
modify-chain Synopsis: forward, postrouting, prerouting
Default: forward
A chain in which the operation will take place.
Configuring a Save Mark
1. In the menu, click save. The Mark Choice Save form appears.
