Configuring a Continue Mark
1. In the menu, click continue. The Mark Choice Continue form appears.

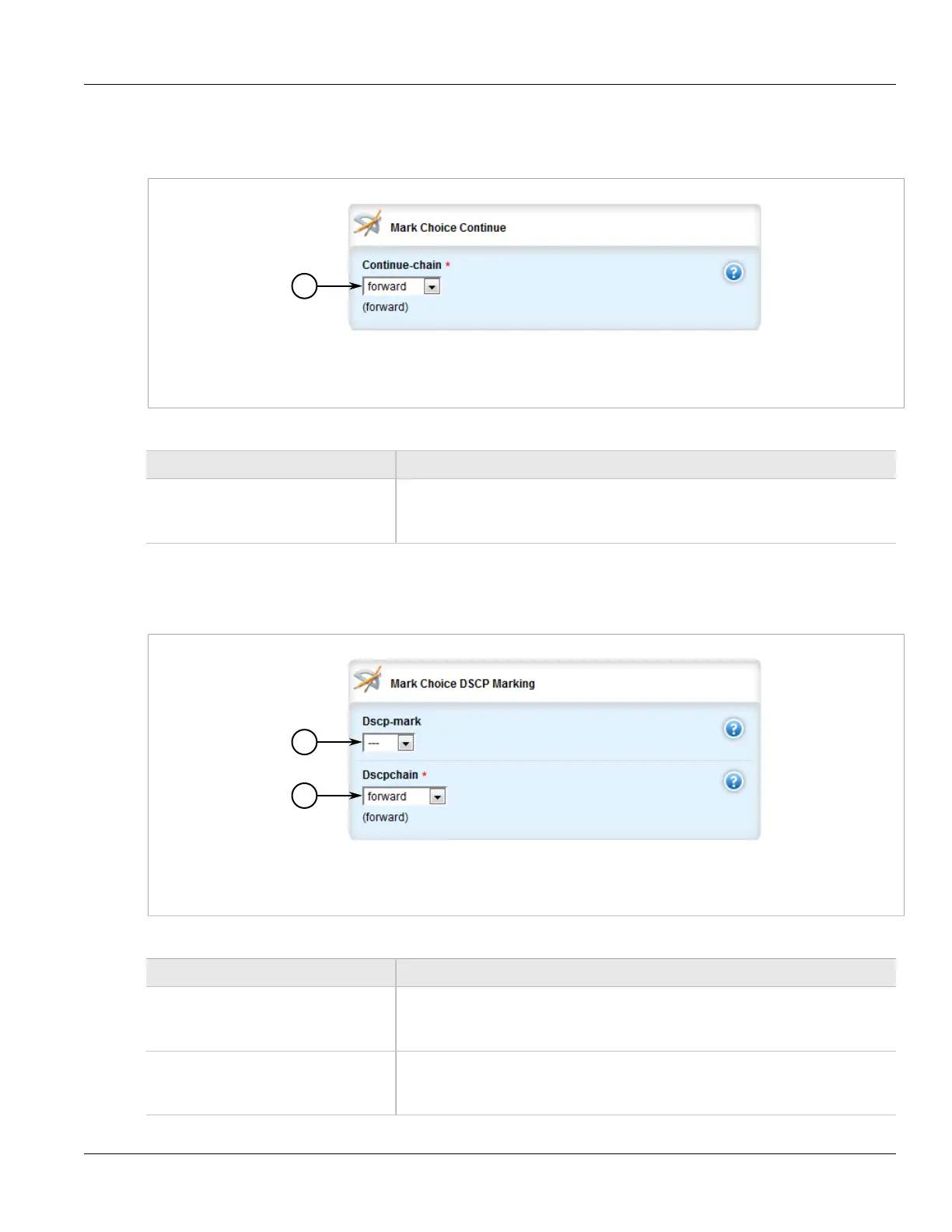

Figure 895: Mark Choice Continue Form
1. Continue Chain List
2. Configure the following parameter(s) as required:
Parameter Description
continue-chain Synopsis: forward, prerouting
Default: forward
A chain in which the operation will take place.
Configuring a DSCP Mark
1. In the menu, click dscpmarking. The Mark Choice DSCP Marking form appears.
Figure 896: Mark Choice DSCP Marking Form
1. DSCP Mark List 2. DSCP Chain List
2. Configure the following parameter(s) as required:
Parameter Description
dscp-mark Synopsis: BE, AF11, AF12, AF13, AF21, AF22, AF23, AF31, AF32, AF33, AF41,
AF42, AF43, CS1, CS2, CS3, CS4, CS5, CS6, CS7, EF
A DSCP class value chosen amongst the given list.
dscpchain Synopsis: forward, postrouting, prerouting
Default: forward
A chain where the DSCP marking will take place.
