Acquisition and waveform setup
R&S
®
RTE
167User Manual 1326.1032.02 ─ 20

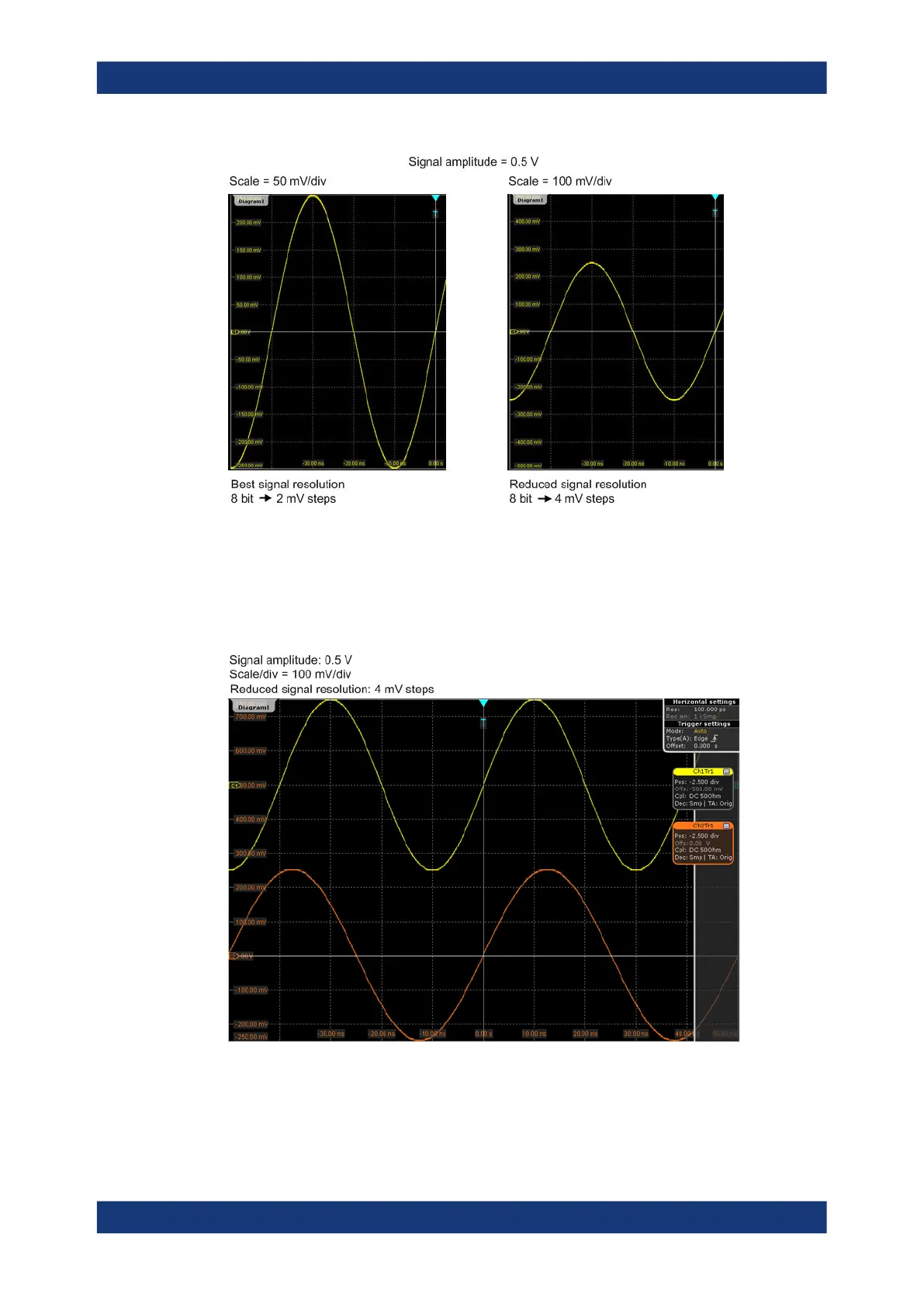

Figure 5-1: Input range and resolution of the ADC
With R&S RTE, you can work with multiple diagrams, and each diagram obtains the full
vertical resolution, no matter where the diagram is placed. Therefore, use a separate
diagram for each waveform instead of the traditional setup that arranges the wave-
forms side by side in one diagram.
Figure 5-2: Traditional setup of multiple waveforms in one diagram: reduced resolution
Basics
