16.6.1.3 Output ripple settings
In the "Channels" tab, you set the current source and the voltage source, see also:
Chapter 16.2.1, "Channels tab", on page 965 and POWer:RIPPle:CURRent
on page 1973)

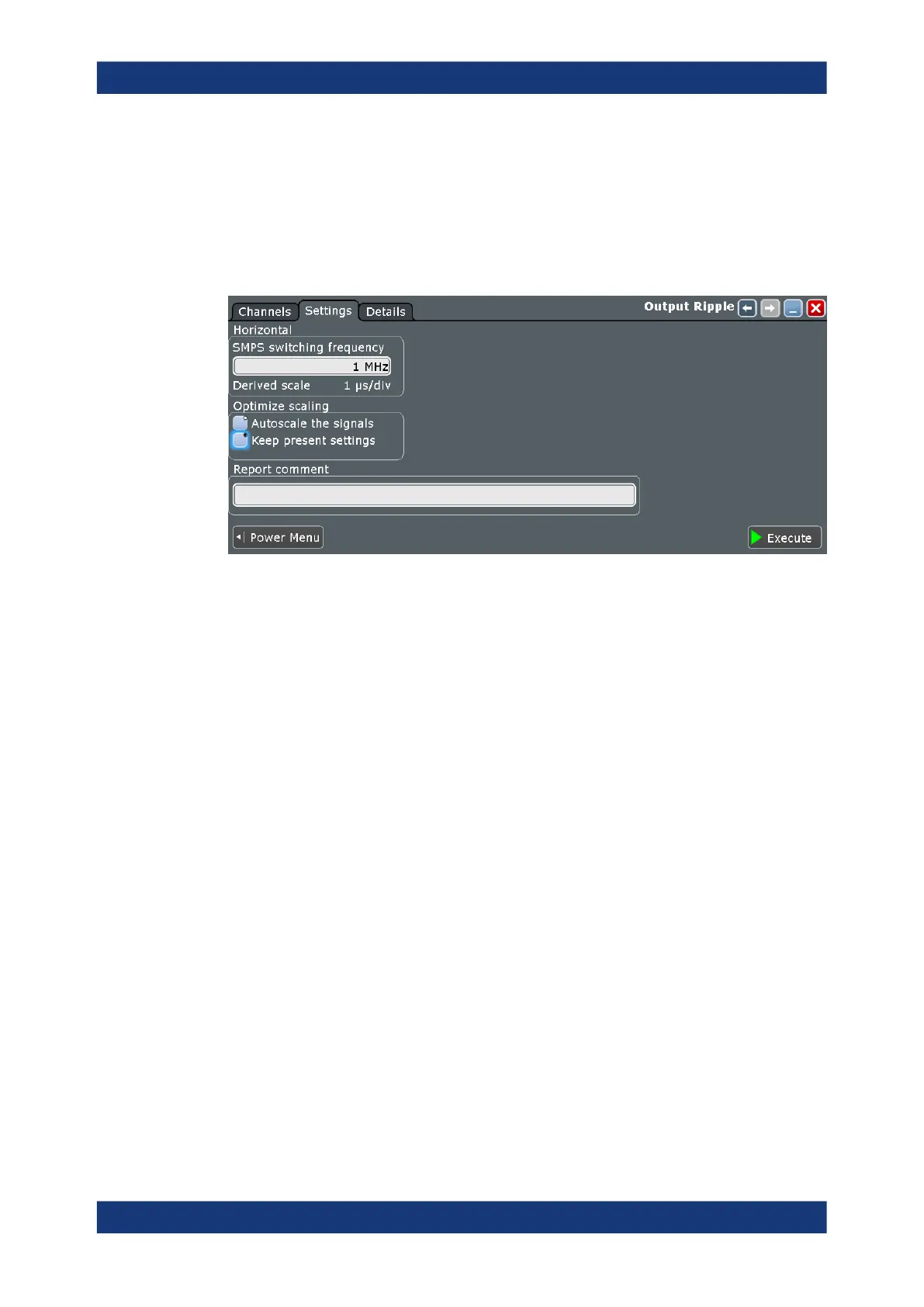

In the "Settings" tab, you configure the ripple parameters and display settings.
SMPS Switching frequency
Sets the SMPS switching frequency. Set the value according to your DUT.
Remote command:
POWer:RIPPle:FREQuency on page 1973
Derived scale
Shows the scale of the displayed results. This value is calculated as the inverse of the
"SMPS switching frequency"
Optimize scaling
Selects the scaling for the display of the results.
"Autoscale the signals"
Automatically selects the most appropriate scale for the display of the
results.
"Keep present settings"
The present display settings are not changed.
Remote command:
POWer:RIPPle:AUToscale on page 1973
Report comment
In this field you can write a comment that is displayed in the measurement report, for
example, a measurement description.
Execute
Starts the "Output Ripple" measurement.
Remote command:
POWer:RIPPle:EXECute on page 1973
