Protocol analysis
R&S
®
RTE
716User Manual 1326.1032.02 ─ 20
2. Select the tab of the bus you want to set up, for example "SB1".
3. In the "Decode" tab, select the protocol: "100BASE-T1".
4. Select the type and source for the reversed and forward signal.
5. Select the polarity ("Normal" or "Inverted") of the signal.
6. Set the logical thresholds.
7. Enable "Decode".
13.12.3 100BASE-T1 trigger
13.12.3.1 100BASE-T1 trigger settings
Access: [PROTOCOL] > "Trigger" tab > "Source = Serial Bus"
In this section, all trigger settings are described. Their availability on the instrument
depends on the selected trigger type. The user interface of the instrument displays only
appropriate settings and guides you through the trigger setup.
For a list of supported trigger conditions, refer to data sheet.

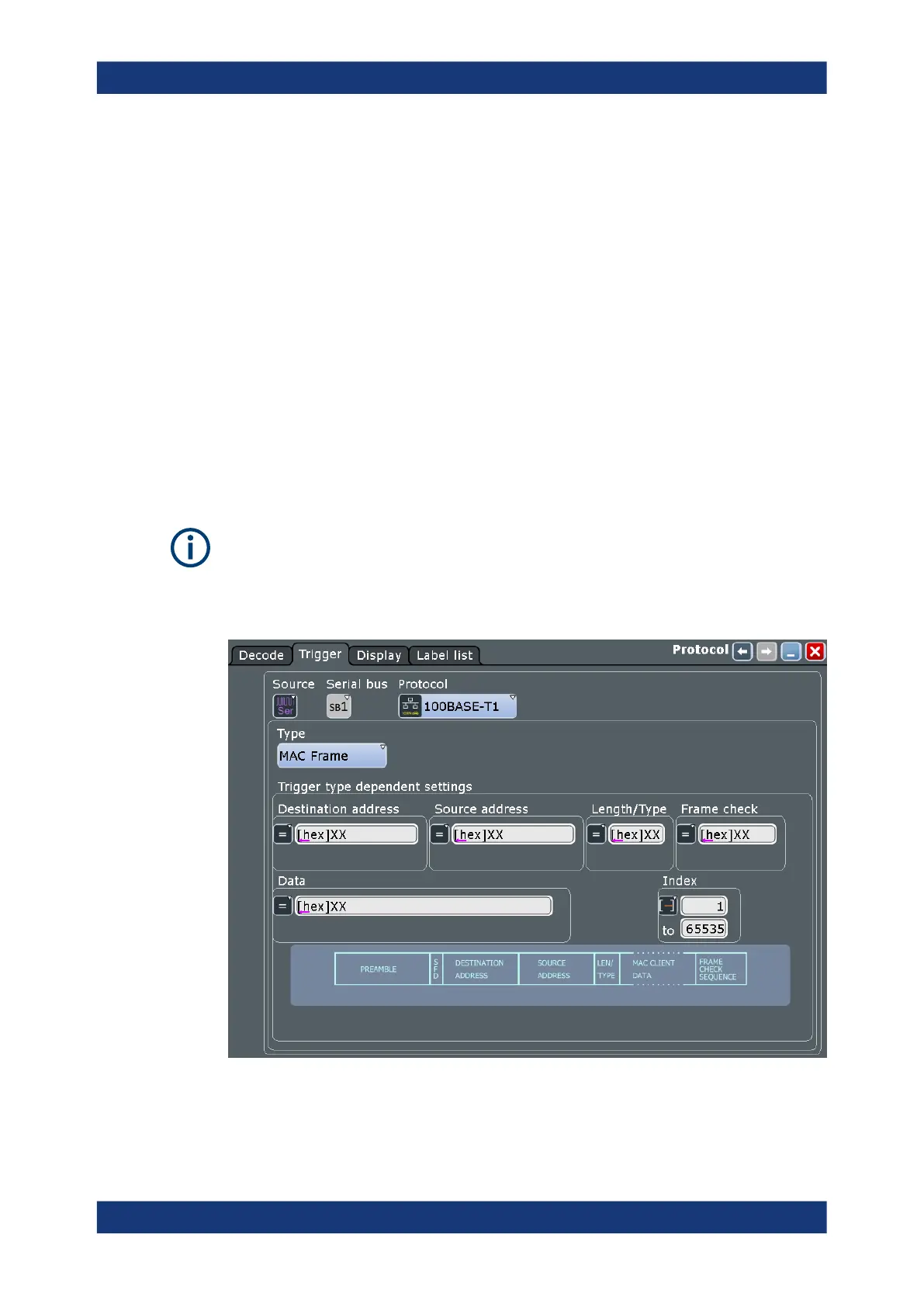

Figure 13-58: 100BASE-T1 trigger event settings dialog
Ethernet 100BASE-T1 (option R&S RTE-57)
