Power analysis (option R&S RTE-K31)
R&S
®
RTE
994User Manual 1326.1032.02 ─ 20
16.5.1.2 Configuring safe operating area
For details of the configuration settings, see Chapter 16.5.1.3, "Safe operating area
settings", on page 995.
1. Select "Analysis" > "Power".
2. Under "Power Path", select "Safe Operating Area".
3. Connect the differential voltage probe and the current probe to the oscilloscope.
4. Deskew the probes as described in Chapter 16.1.1.1, "Auto deskew", on page 955.

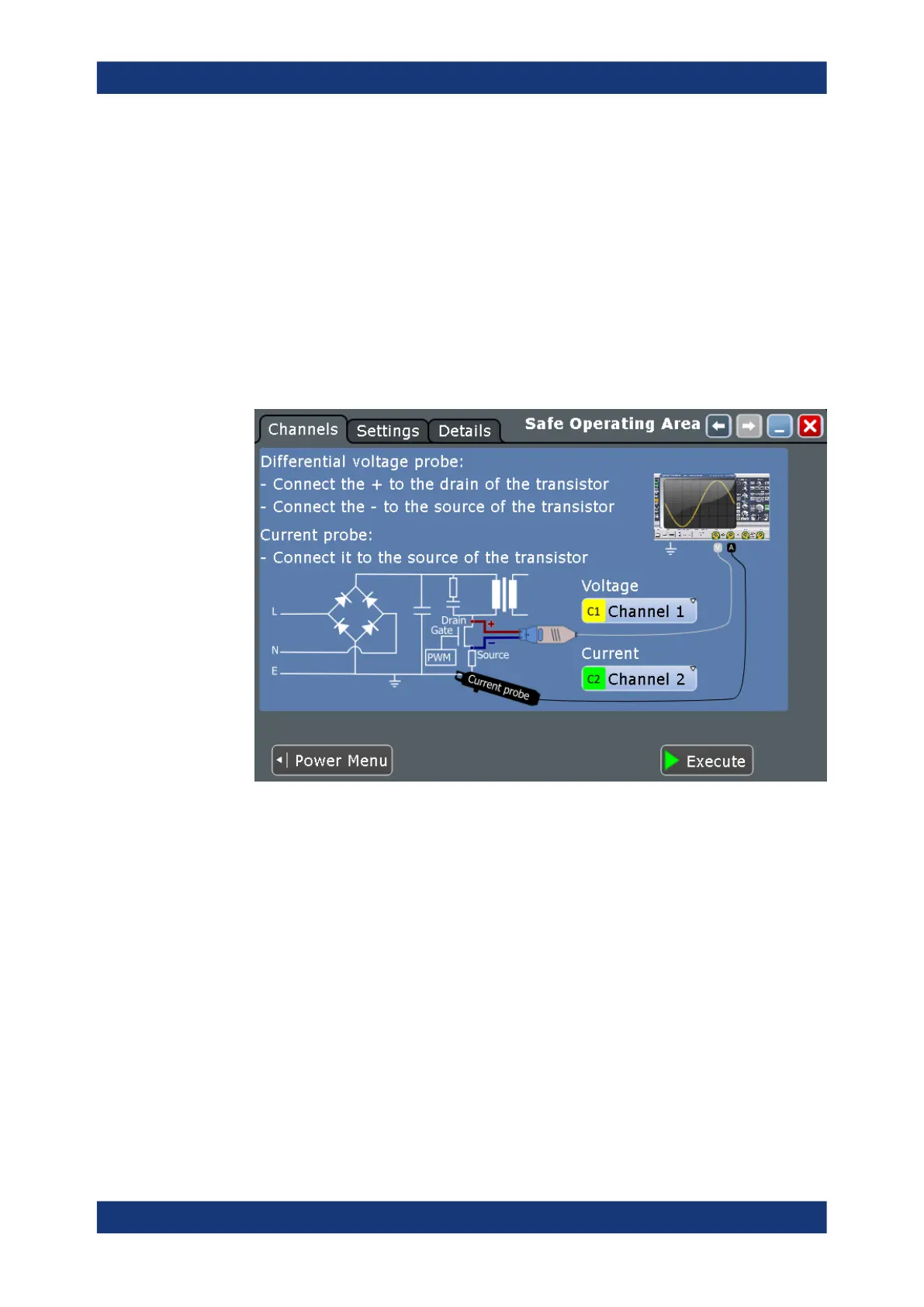

5. Connect the probes to the DUT as shown in the "Channels" tab:
6. Select the correct channels of the "Current Source" and the "Voltage Source".
7. Select the "Settings" tab.
8. Select the state of the "Enable mask test".
9. Select the "Scale".
10. Define the SOA Points.
11. Tap "Execute".
On the screen you can see the measurement waveforms of the Additionally, the
result box with numeric measurement results is shown. For details, seeChap-
ter 16.5.1.1, "Safe operating area results", on page 992.
