13.7.1 FlexRay configuration
13.7.1.1 FlexRay configuration

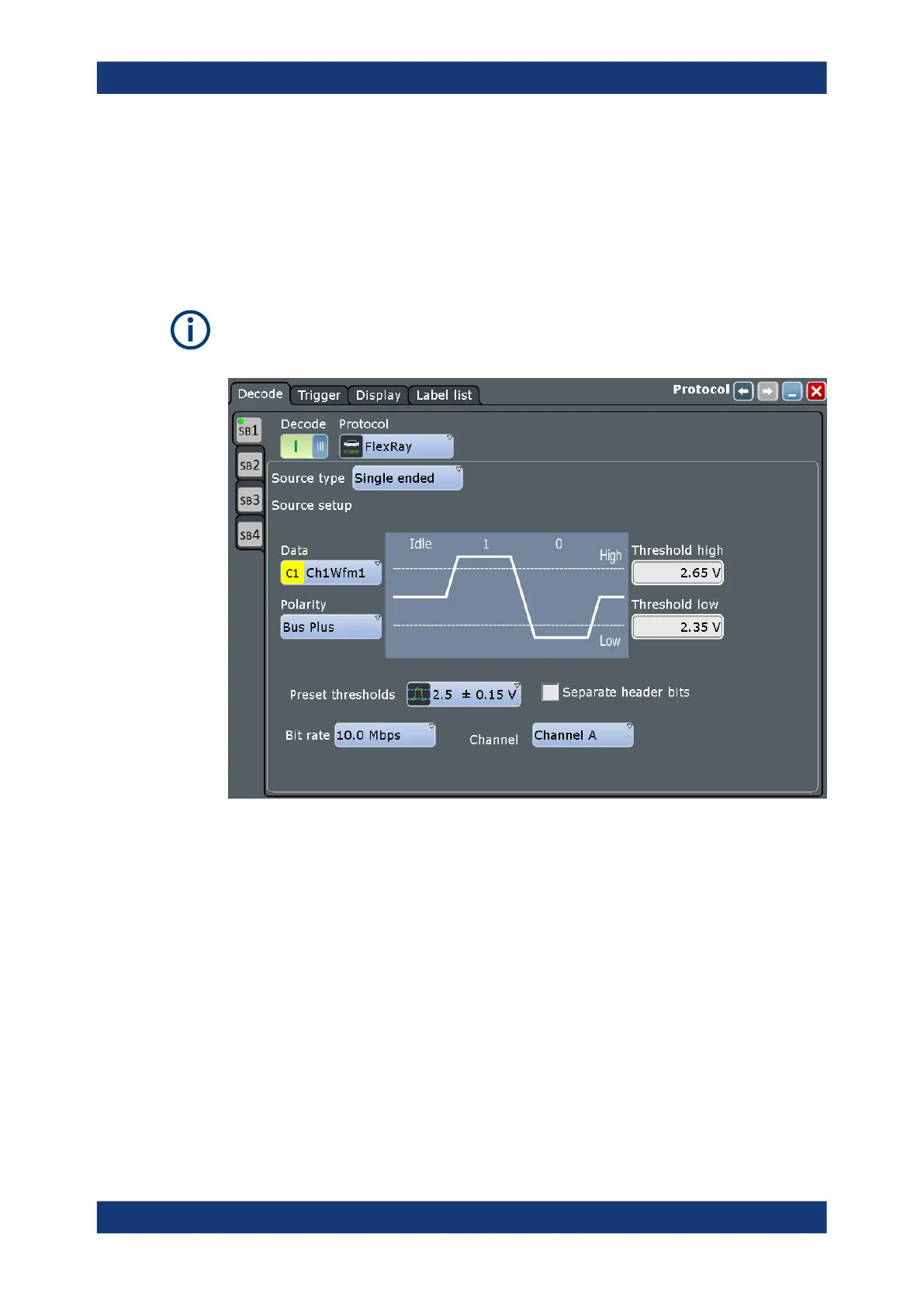

Access: [PROTOCOL] > "Decode" tab > "Protocol" = FlexRay
Make sure that the tab of the correct serial bus is selected.
See also: Chapter 13.1.1, "Decode - general settings", on page 514.
Source type
Sets the type of measurement. The instrument adjusts the thresholds to the selected
source type.
"Single-ended"
For measurements with single-ended probes, or single-ended voltage
measurements with differential probes on the FlexRay bus. Two
thresholds have to be defined as absolute voltage levels.
"Differential"
For differential measurements on the FlexRay bus. This is the most
common measurement. Two thresholds have to be defined as differ-
ential voltages.
"Logic"
For measurements of logic signals, for example, of the logic signal
inside the FlexRay node, between the communication controller and
the bus driver. If MSO option R&S RTE-B1 is installed, you can use
digital input channels. It is possible to measure simultaneously on a
data line and on the enable line. Each line requires its own threshold.
