Waveform generator (Option R&S RTE-B6)
R&S
®
RTE
941User Manual 1326.1032.02 ─ 20
Remote command:
WGENerator<m>:ARBGen:MULTichannel:NAME on page 1933
WGENerator<m>:ARBGen:MULTichannel:IMPort on page 1933
WGENerator<m>:ARBGen:MULTichannel:OPEN on page 1934

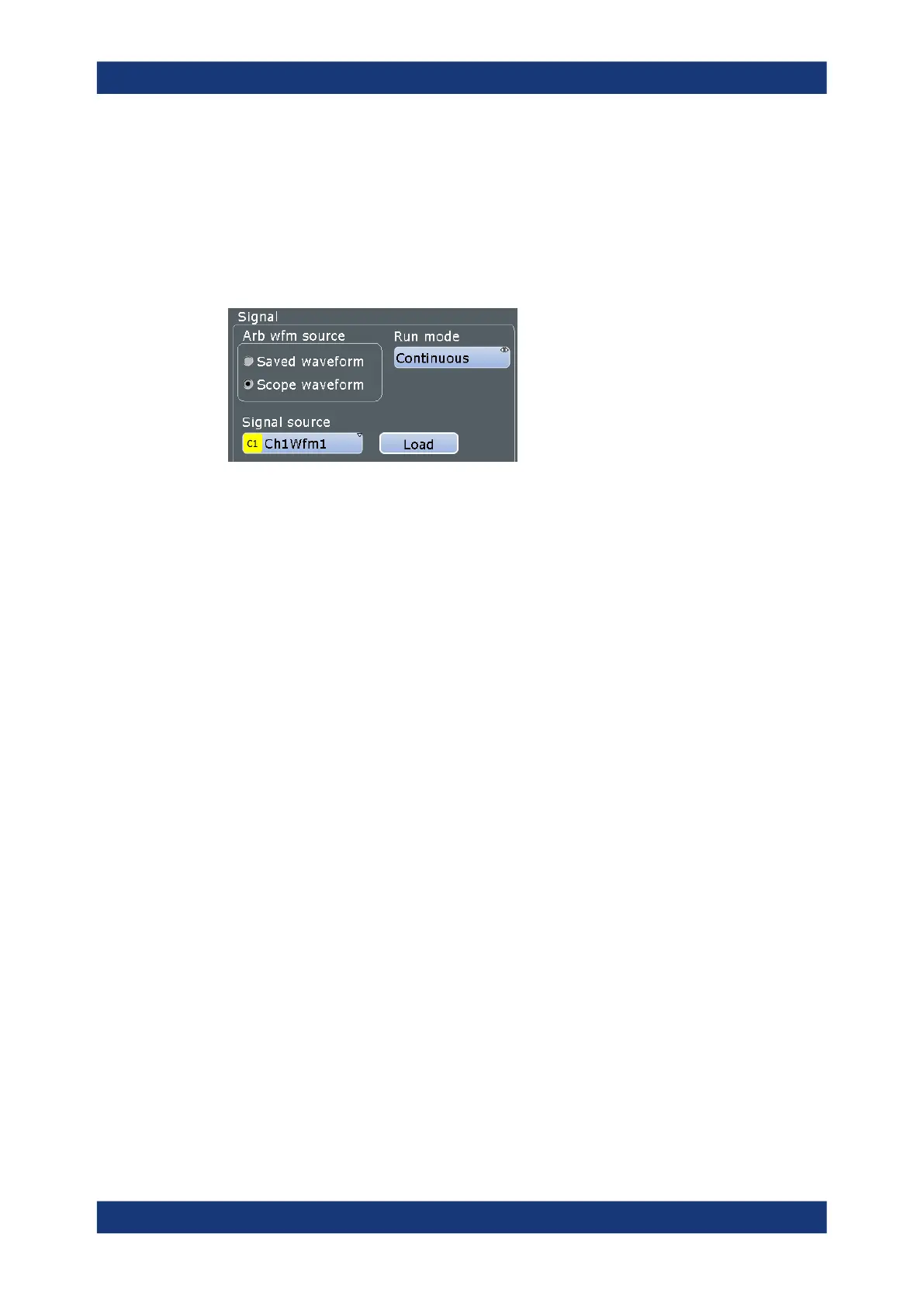

15.1.5.3 Scope waveform
For a scope waveform, the following settings are available:
Signal source
Selects the oscilloscope source, from which the arbitrary signal is loaded.
Remote command:
WGENerator<m>:ARBGen:SELect on page 1935
Load
Loads the waveform from the selected "Signal source".
Remote command:
WGENerator<m>:ARBGen:COPY on page 1933
15.1.6 Output
Amplitude
Sets the amplitude, peak to peak voltage, of the output waveform. It is defined as the
voltage difference between the maximum ("High") and the minimum ("Low") voltage
levels.
The "Amplitude" value is set for the currently selected "User Load". If the "User Load"
is changed, the value of "Amplitude" is adapted to this new setting.
Remote command:
WGENerator<m>:VOLTage[:VPP] on page 1938
Offset
Sets a voltage offset.
Remote command:
WGENerator<m>:VOLTage:OFFSet on page 1939
High
Sets the high signal level of the output waveform.
Setup of the waveform generator
