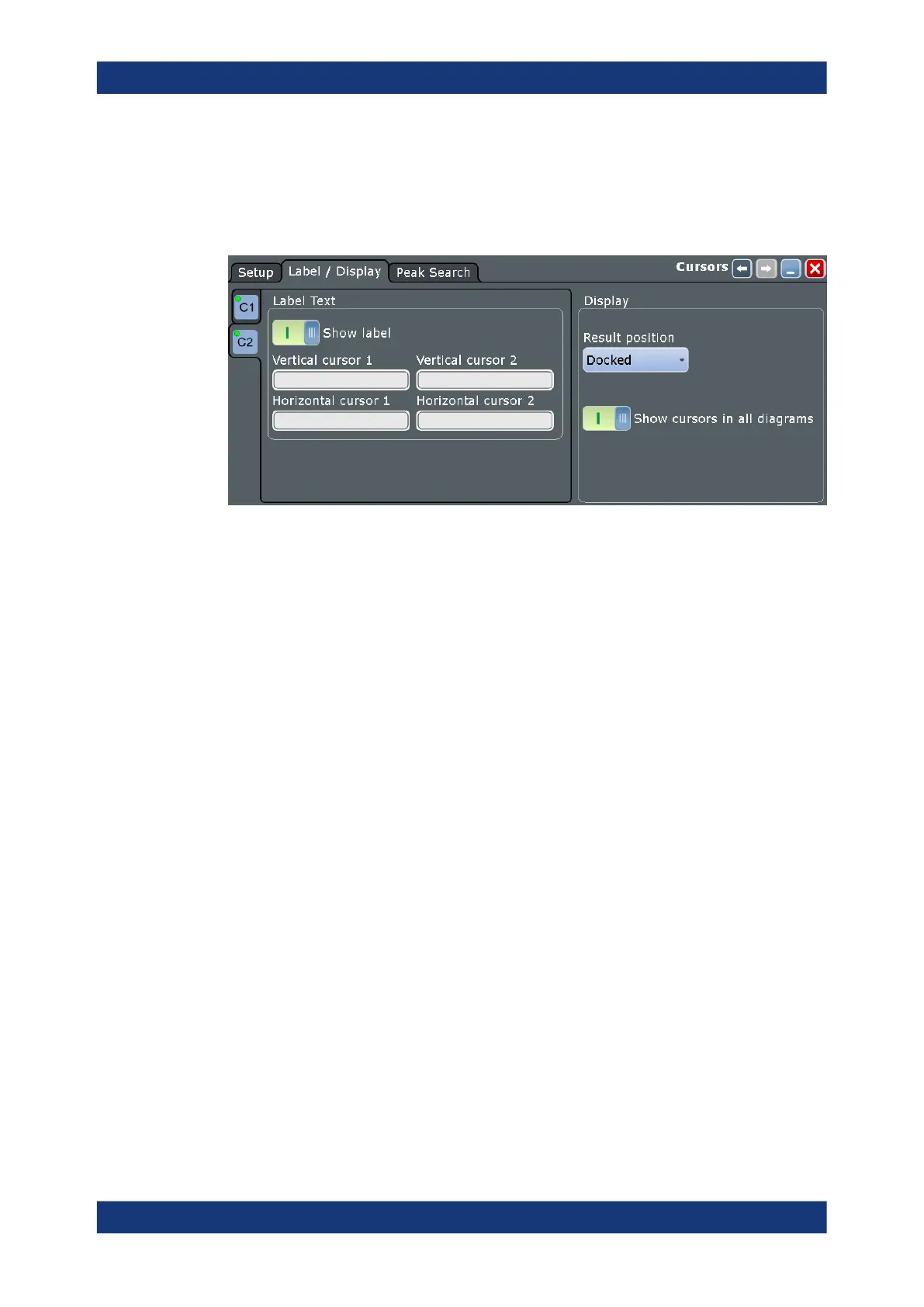

8.1.3.2 Labels / display tab
Access: [CURSOR] key > "Labels / Display" tab
The settings in this tab configure the display of the cursors.
Cursor set (vertical tabs)
The settings for each cursor measurement (or cursor set) are configured on separate
tabs. For each cursor set, a horizontal pair of cursors, a vertical pair of cursors, or both
can be displayed.
Vertical cursor 1, Vertical cursor 2
Defines a label to be displayed with the vertical cursors.
By default, the cursors are labeled as C1.1, C1.2, C2.1, C2.2.
Horizontal cursor 1, Horizontal cursor 2
Defines a label to be displayed with the horizontal cursors.
Show label
Shows the cursor labels in the diagram.
Remote command:
CURSor<m>:LABel on page 1245
Result position
Defines the position of the cursor measurement results.
"Floating"
Floating result box in front of the diagrams.
"Preview"
Result icon on the signal bar.
"Docked"
Fixed tab below the diagrams.
Remote command:
DISPlay:RESultboxes:CUPosition on page 1246
Show cursors in all diagrams
Shows the enabled cursor measurements in all active diagrams of the same (time/
spectrum) domain.
