Protocol analysis
R&S
®
RTE
800User Manual 1326.1032.02 ─ 20
SEARch:TRIGger:CMSB:BIT on page 1766
SEARch:TRIGger:CMSB:FRAMe<m>:FLD<n>:DMAX on page 1766
SEARch:TRIGger:CMSB:DMAX on page 1766
SEARch:TRIGger:CMSB:FRAMe<m>:FLD<n>:DMIN on page 1767
SEARch:TRIGger:CMSB:DMIN on page 1767
SEARch:TRIGger:CMSB:FRAMe<m>:FLD<n>:DOPerator on page 1767
SEARch:TRIGger:CMSB:DOPerator on page 1767
SEARch:TRIGger:CMSB:FRAMe<m>:FLD<n>:IMAX on page 1768
SEARch:TRIGger:CMSB:IMAX on page 1768
SEARch:TRIGger:CMSB:FRAMe<m>:FLD<n>:IMIN on page 1769
SEARch:TRIGger:CMSB:IMIN on page 1769
SEARch:TRIGger:CMSB:FRAMe<m>:FLD<n>:IOPerator on page 1769
SEARch:TRIGger:CMSB:IOPerator on page 1769

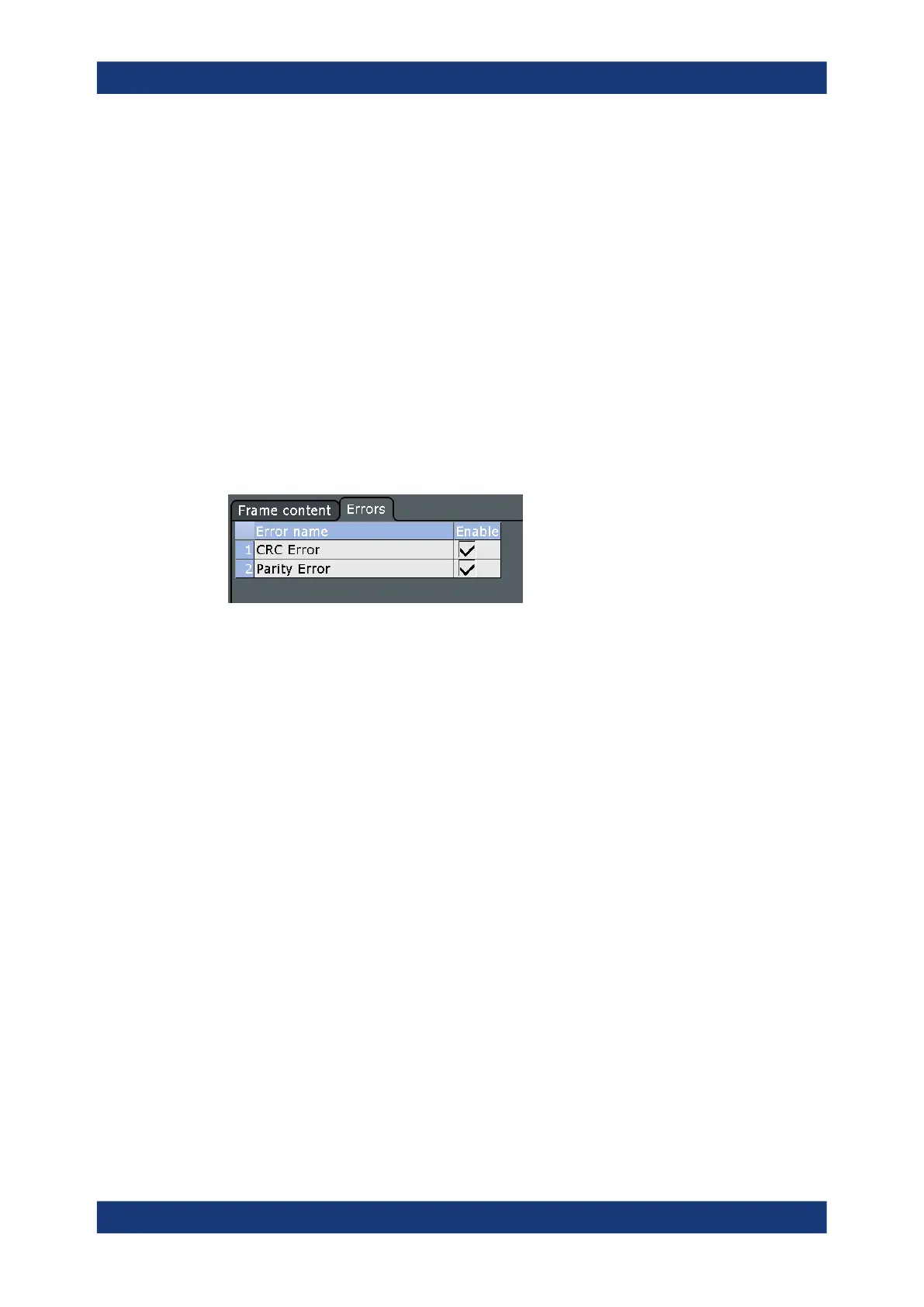

Error Condition
Searches for two error conditions: "CRC Error" or "Parity Error".
Remote command:
SEARch:TRIGger:CMSB:ERRor<m>:ENABle on page 1765
13.14.6.2 Custom serial bus search results
To get search results, "Enable" the search. You can minimize, shift or close the search
dialog.
The search results are listed in the search result table and marked in the waveform by
blue lines.
The "Show search zoom windows" function allows you to analyze the search results in
more detail. Search zoom and result table are synchronized; if you select a row in the
result table, this result is shown in the search zoom.
For an introduction to search results, see:
●
Chapter 11.1.2, "Search results", on page 446
●
Chapter 11.4, "Result presentation", on page 463
Remote commands are listed in Chapter 18.17.15.6, "Search results", on page 1769
13.14.6.3 Searching custom serial bus data
Prerequisite: A serial bus is configured for the custom serial bus signal to be decoded
and analyzed.
Custom: Manchester / NRZ (option R&S
RTE-K50)M
