Search functions
R&S
®
RTE
456User Manual 1326.1032.02 ─ 20

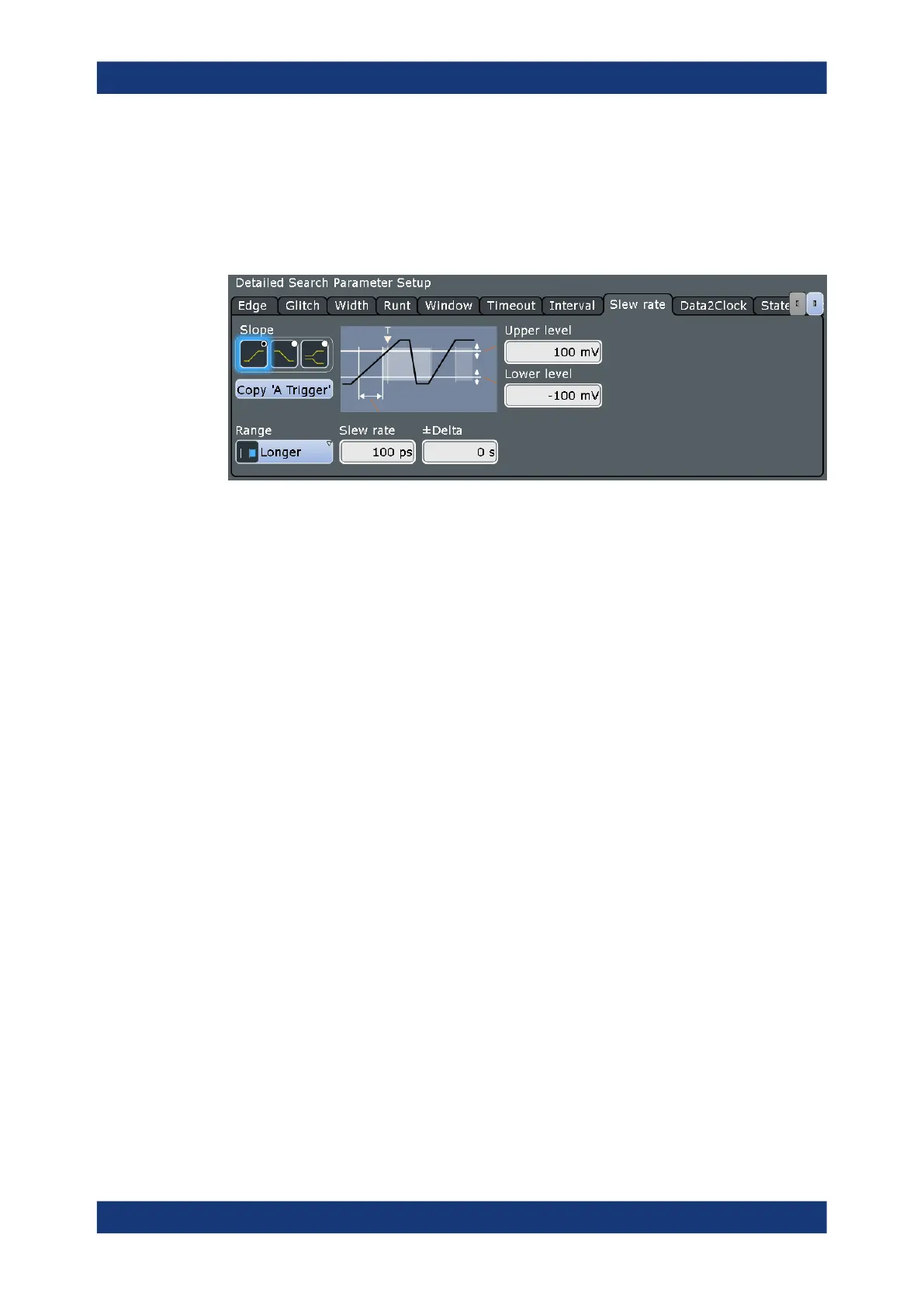

11.2.2.8 Slew rate
The slew rate search settings are the same as the slew rate trigger settings. To apply
the trigger settings to search, tap Copy 'A Trigger'.
The slew rate search is not available if the search source is a digital channel.
Polarity, Range, Slew rate, ±Delta
●
"Slope" on page 244
●
"Range" on page 253
●
"Slew rate" on page 253
●
"±Delta" on page 253
Remote command:
SEARch:TRIGger:SLEWrate:SLOPe on page 1362
SEARch:TRIGger:SLEWrate:RANGe on page 1362
SEARch:TRIGger:SLEWrate:TIME on page 1363
SEARch:TRIGger:SLEWrate:DELTa on page 1361
Upper level, Lower level
Set the upper and lower voltage thresholds. When the signal crosses a level, the slew
rate measurement starts or stops depending on the selected slope.
Remote command:
SEARch:TRIGger:LEVel:TRANsition:UPPer on page 1363
SEARch:TRIGger:LEVel:TRANsition:LOWer on page 1363
11.2.2.9 Data2Clock
The "Data2Clock" search settings are the same as the "Data2Clock" trigger settings.
To apply the trigger settings to search, tap Copy 'A Trigger'.
Search setup
