Report comment
In this field you can write a comment that is displayed in the measurement report, for
example, a measurement description.
Execute
Starts the " Power Quality" measurement.
Remote command:
POWer:QUALity:EXECute on page 1951
16.3.2 Inrush current
The "Inrush Current" analysis measures the peak of the input current that is drawn by
the device, when the device is first turned on.
Required probes:
●
Current probe
16.3.2.1 Inrush current results
The results of " Inrush Current" measurements are provided in two ways:
●
The diagram shows the graphical presentation of:
– the current waveform
●

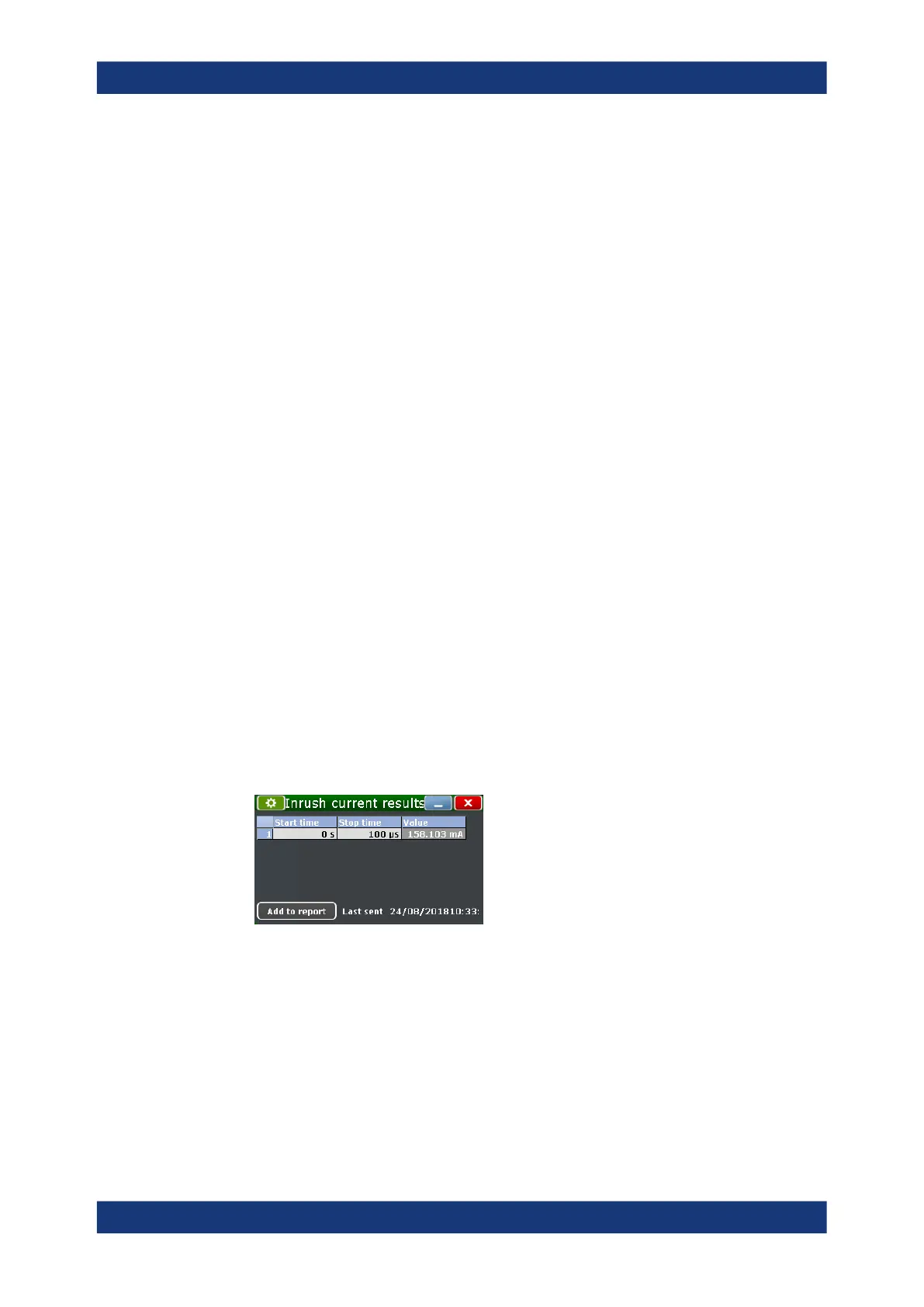

The result box displays the following numeric measurement results:
– "Start time" / "Stop time" define the time period for the present gate
– The "Value" stands for the maximum amplitude of the current for the present
time period. This is the inrush current for the correspondent gate.
To measure and display the inrush current, the instrument uses the following measure-
ments and waveforms:
●
"Meas 1" to "Meas 5" to measure the inrush current of "Gate 1" to "Gate 5"
The used resources are listed in the "Details" tab. See also: Chapter 16.2.3, "Details
tab", on page 966.
The following remote commands are used for handling the measurement results:
●
POWer:INRush:GATE<m>:VALue on page 1954
●
POWer:INRush:REPort:ADD on page 1955
