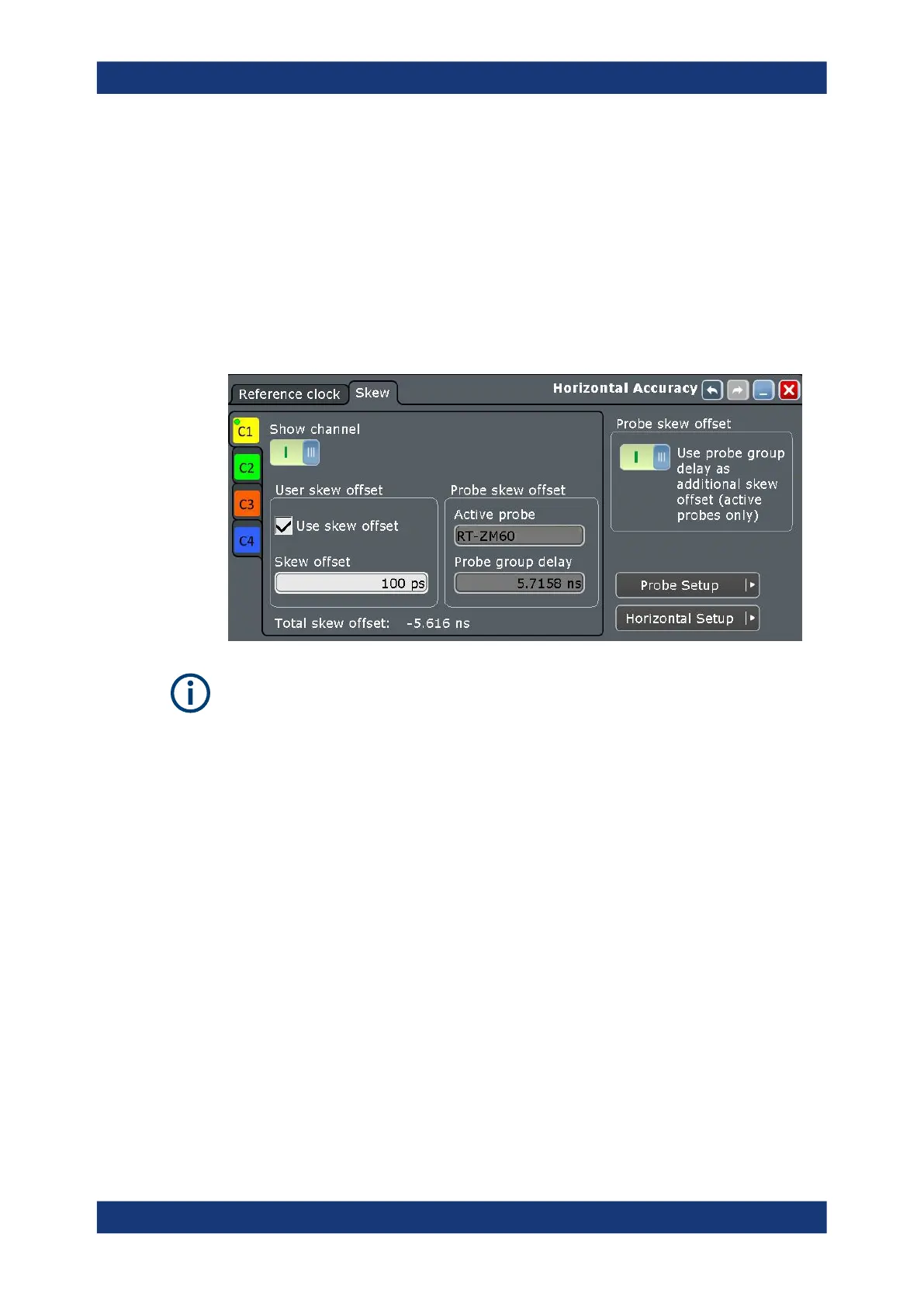

The "Horizontal Accuracy" dialog box contains standard and optional settings to
improve measurement and analysis accuracy and to reduce jitter effects.
5.9.1 Skew
Access: "Horizontal" menu > "Skew".
Skew compensates signal propagation differences between channels caused by the
different length of cables, probes, and other sources. Correct skew values are impor-
tant for accurate triggering and timing relations between channels.
Make sure that the correct channel tab is selected.
Show channel
Switches the channel signal on or off. The signal icon appears on the signal bar. The
waveform of the last acquisition is displayed in the diagram.
Remote command:
CHANnel<m>:STATe on page 1117
Use skew offset
If enabled, the "Skew offset" value is used for compensation.
Remote command:
CHANnel<m>:SKEW:MANual on page 1161
Skew offset
Sets a delay value, that is known from the circuit specifics but cannot be compensated
by the instrument automatically. It affects only the selected input channel.
The delay can be shorter than the sample interval. Thus, the skew improves also hori-
zontal and trigger accuracy.
Remote command:
CHANnel<m>:SKEW:TIME on page 1161
