Rohde & Schwarz RTE - Safe Operating Area Settings

Power analysis (option R&S RTE-K31)
R&S
®
RTE
995User Manual 1326.1032.02 ─ 20
16.5.1.3 Safe operating area settings
In the "Channels" tab, you set the current source and the voltage source, see also:
Chapter 16.2.1, "Channels tab", on page 965.

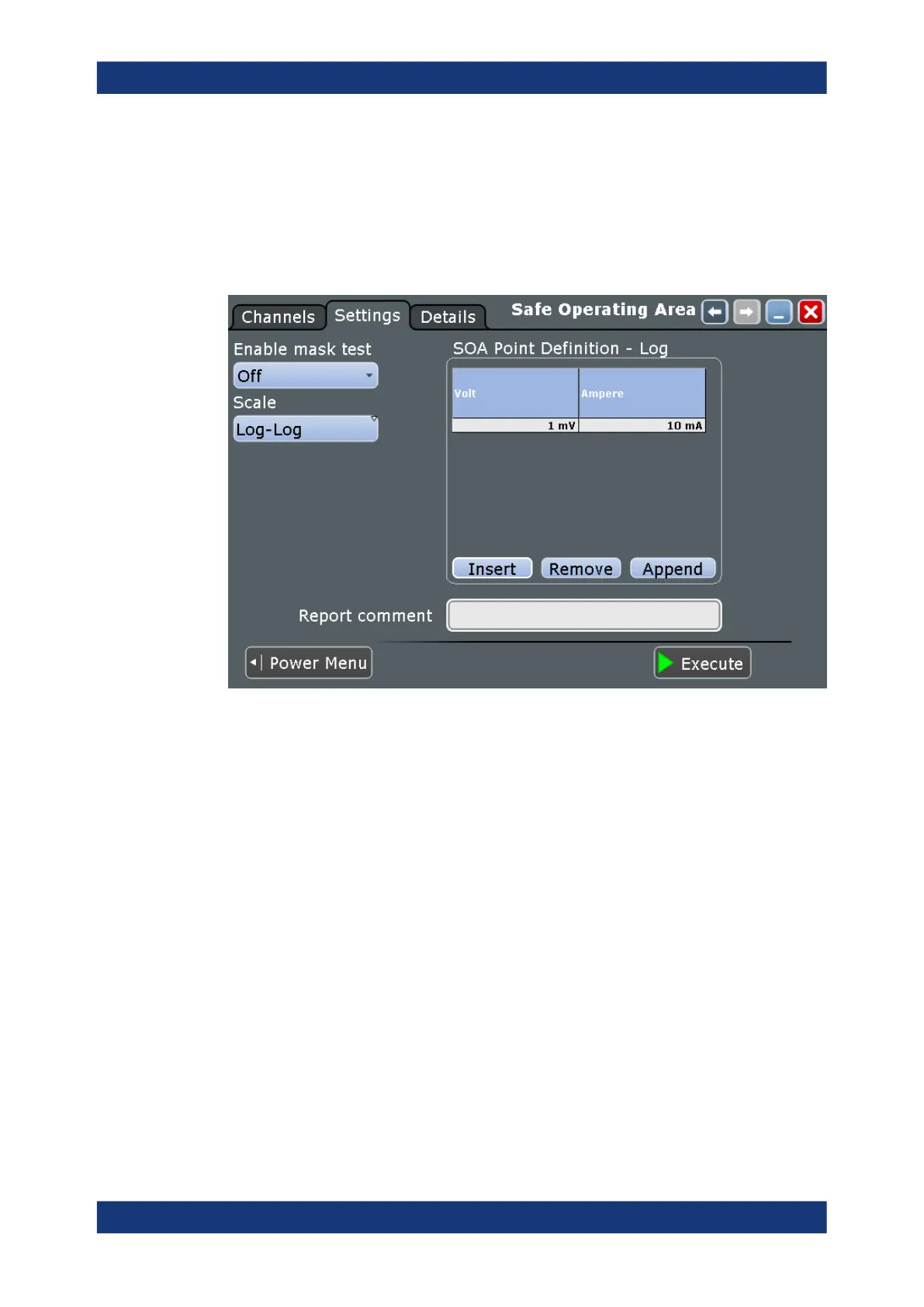

In the "Settings" tab, you configure the safe operating area parameters and display set-
tings.
Enable mask test
Enables a mask test.
Remote command:
POWer:SOA:MASK on page 1965
Scale
Selects the scale for the result diagram.
Remote command:
POWer:SOA:SCALe on page 1965
SOA point definition
In this table, you can set voltage-current points to define a mask for the safe point
operating area. If Enable mask test > "On", you can check whether the signal remains
within the specified limits.
To add a point press "Insert" or "Append". To remove a point press "Remove".
Remote command:
POWer:SOA:LINear:ADD on page 1963
POWer:SOA:LOGarithmic:ADD on page 1963
POWer:SOA:LINear:COUNt? on page 1964
POWer:SOA:LOGarithmic:COUNt? on page 1964
Power path
