Search functions
R&S
®
RTE
447User Manual 1326.1032.02 ─ 20
Enabling the search zoom window disables the search, stops a running acquisition,
and displays the search results of the last acquisition in the zoom window.

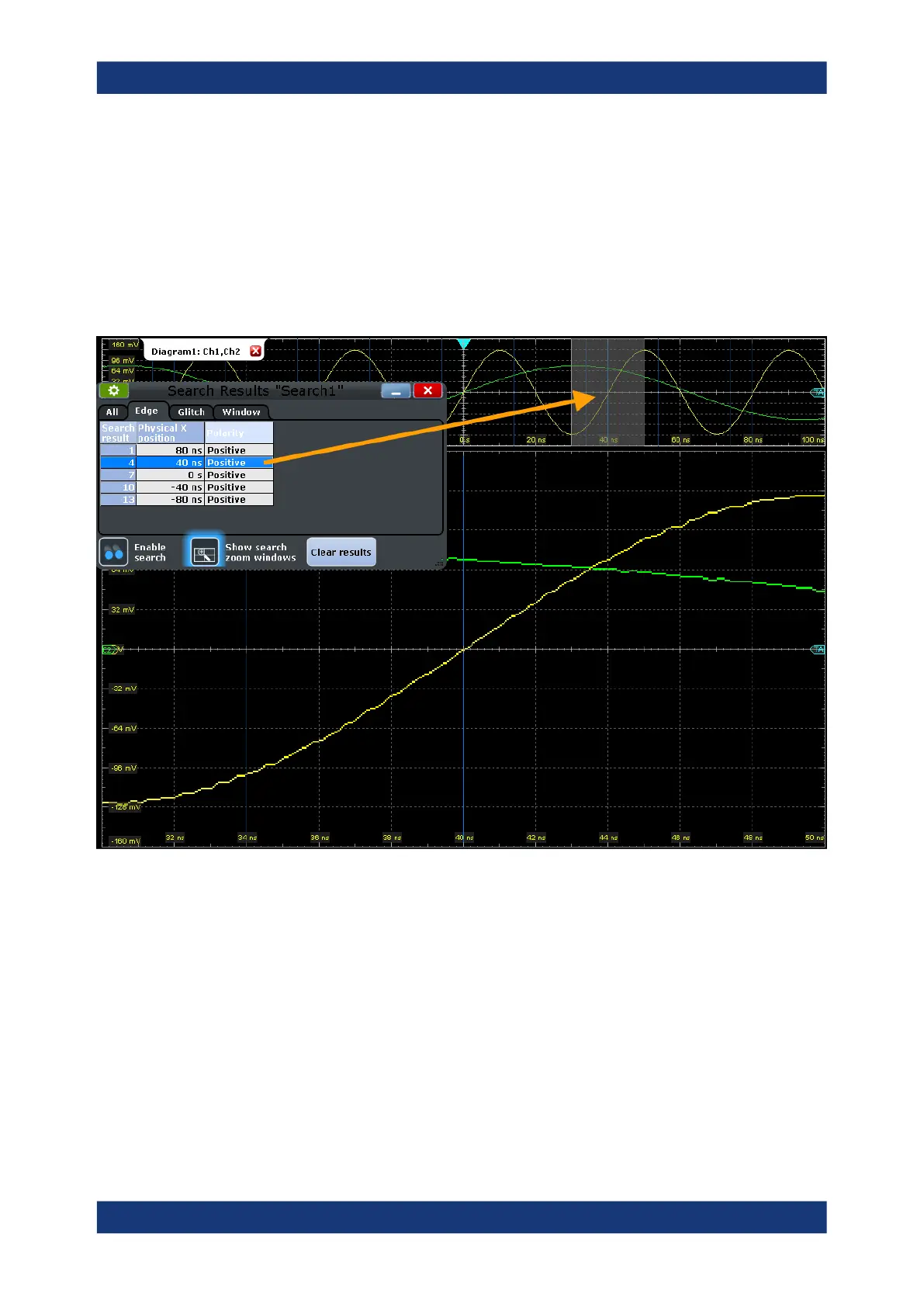

Navigating search results
If a search zoom window has been opened, it shows the first result that was found.
► To display the zoom of a specific search result, tap the result line in the result table
to set the zoom to this event.
The zoom area in the source diagram moves to the selected result and the zoom is
displayed.
You can change the size and the position of the search zoom area in the same way as
a usual zoom. If you move the zoom area in the source diagram, the nearest search
result is marked in the results table. See also: Chapter 7.1.1, "Methods of zooming",
on page 278.
11.2 Search setup
Access: [SEARCH] > "Setup" tab
Search setup
