Rohde & Schwarz RTE - Setup for Predefined Probes

Acquisition and waveform setup
R&S
®
RTE
209User Manual 1326.1032.02 ─ 20

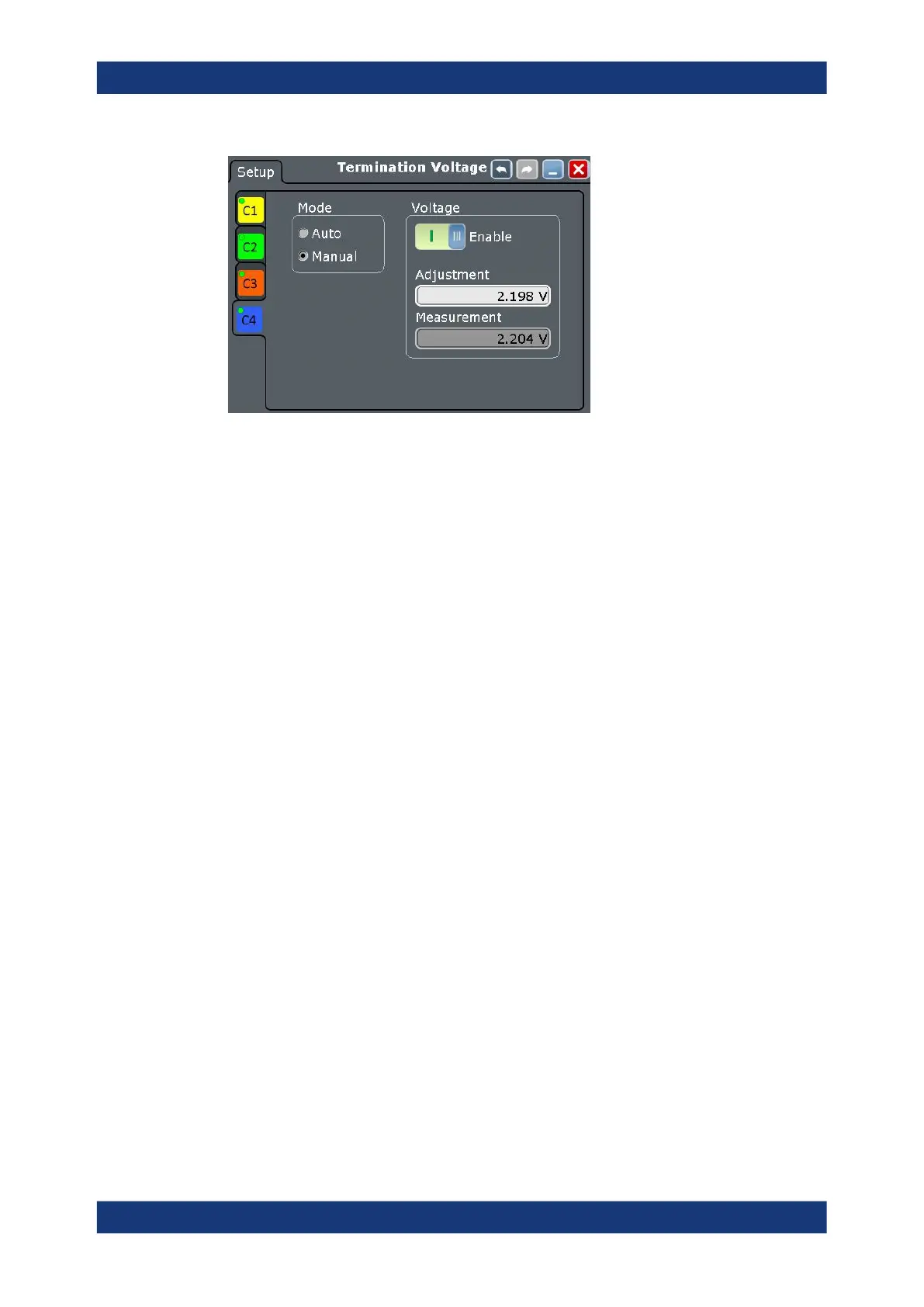

Enable
Activates control of the termination voltage.
Remote command:
PROBe<m>:SETup:TERM:STATe on page 1137
Mode
In "Auto" mode, the instrument uses the measured common mode voltage for termina-
tion.
In "Manual" mode, you can enter the voltage to be used for termination. Use the man-
ual mode if you know the common mode voltage of the DUT.
Remote command:
PROBe<m>:SETup:TERM:MODE on page 1137
Adjustment
Sets the voltage to be used for termination to DC voltage.
Remote command:
PROBe<m>:SETup:TERM:ADJust on page 1138
Measurement
Shows the measured common mode voltage.
Remote command:
PROBe<m>:SETup:TERM:MEASure? on page 1138
5.5.6 Setup for predefined probes
Probes that cannot be detected, but their characteristics are known to the R&S RTE
are called "Predefined probes".
The following shared probe settings are available:
●
"Type, Name, Bandwidth" on page 195
●
"Detect AutoZero, Use AutoZero" on page 195
●
"External attenuation: Scale, Attenuation" on page 196
