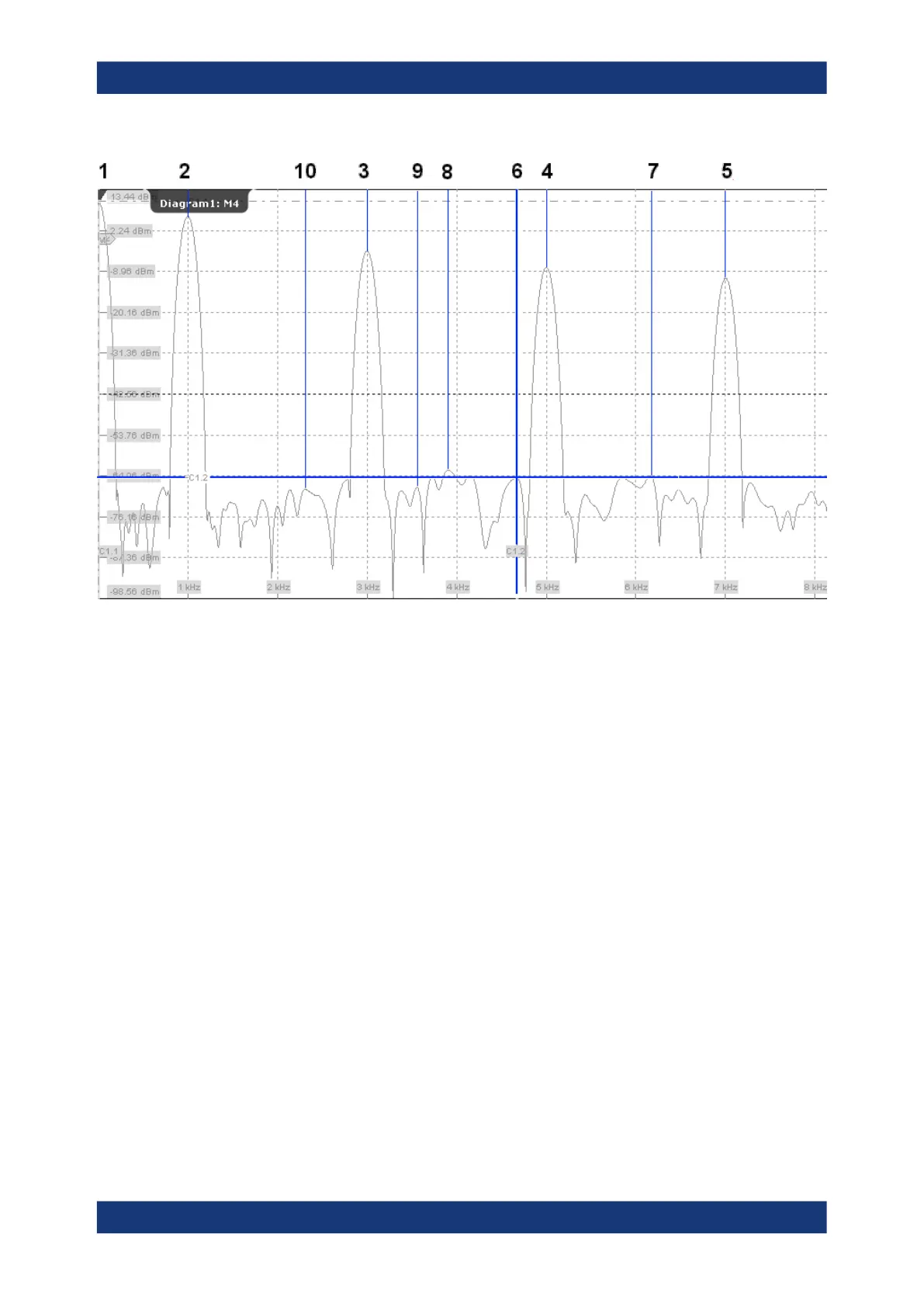

If "Peak excursion" is 30 dB, the peaks 1 to 5 are found. If "Peak excursion" is 20 dB,
also the peaks 6 to 10 are found. The cursor position is on peak 6.
Remote command:
CURSor<m>:PEXCursion on page 1249
MEASurement<m>:SPECtrum:PEXCursion on page 1272
8.2 Automatic measurements
The R&S RTE can perform up to 8 automatic measurements and a quick measure-
ment simultaneously. For each measurement, various measurement types are availa-
ble to measure the characteristics of a source waveform. The measurement types are
grouped in categories.
The basic measurement settings are source, category, and the selection of the mea-
surement type. You can refine the setup to get more specific results:
●
Gating
A gate limits the measurement to a user-defined part of the waveform. See Chap-
ter 8.2.3, "Measurement gates", on page 341.
●
Statistics and long term measurements
To evaluate time-dependent behavior of measurement results, you can use statis-
tics, long term measurements, and tracks. You can also decide, how many mea-
surement results per acquisition contribute to the calculation. See: Chapter 8.2.10,
"Result analysis", on page 382.
●
Limit checks and actions on test result
Automatic measurements
