6. Enable "Decode", if available.
13.13.3 SENT trigger
13.13.3.1 SENT trigger settings

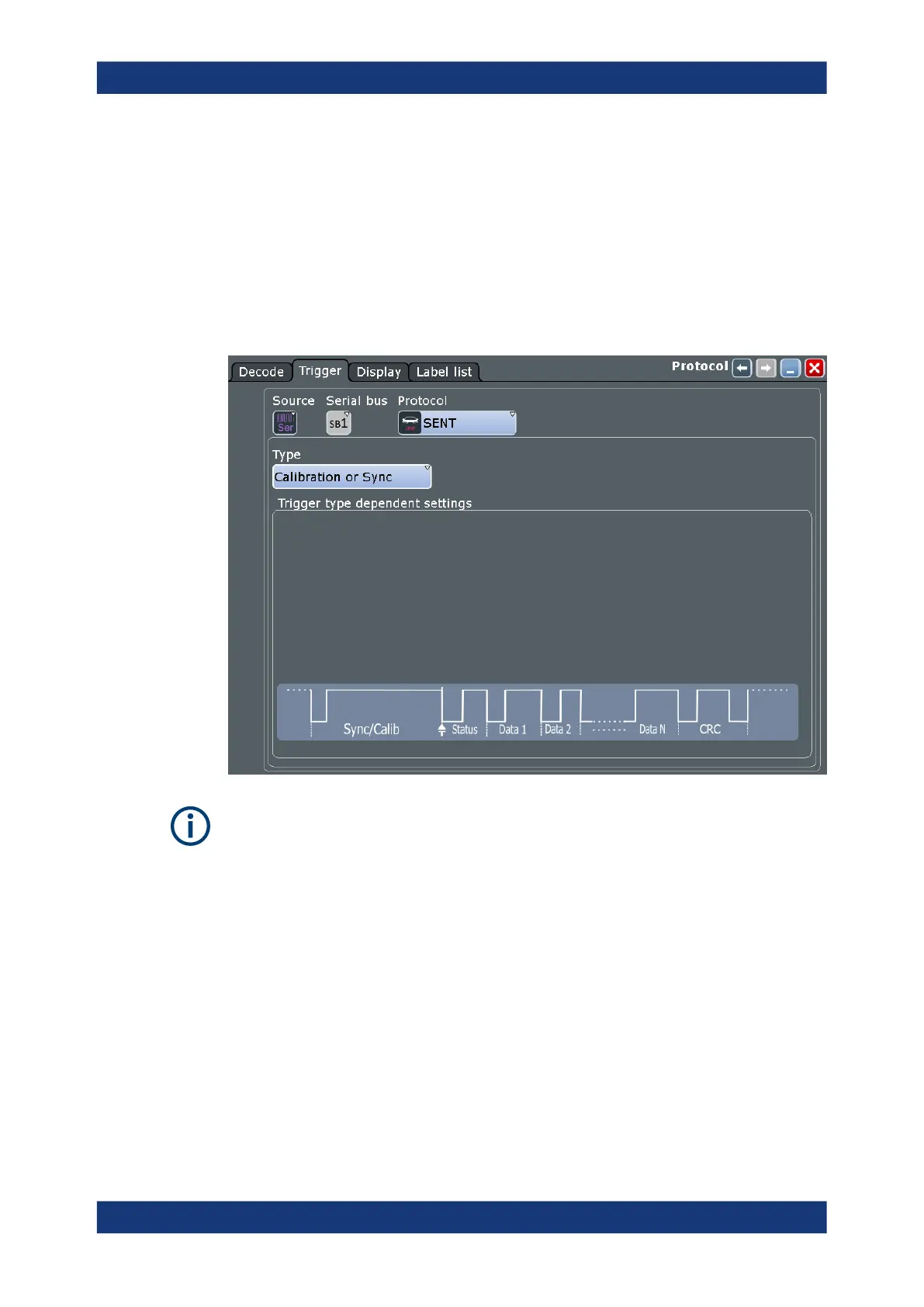

Access: [PROTOCOL] > "Trigger" tab > "Source = Serial Bus"
Make sure that:
●
In the [PROTOCOL] > "Decode" tab:
– The correct "Protocol" is selected.
– The data sources of the serial bus are channel signals.
●
In the "Trigger" > "Setup" tab:
– The trigger "Sequence" = "A only".
– The trigger "Source" = "Serial bus".
– The correct "Serial bus" is selected.
Type
Selects the event of the SENT transmission sequence or message to be triggered on.
The RTE triggers always on the falling edge of a pulse, i.e. at the end of the selected
type nibble in a transmission sequence.
SENT (option R&S
RTE-K10)
