Rohde & Schwarz RTE - Flexray Search Results

Protocol analysis
R&S
®
RTE
636User Manual 1326.1032.02 ─ 20

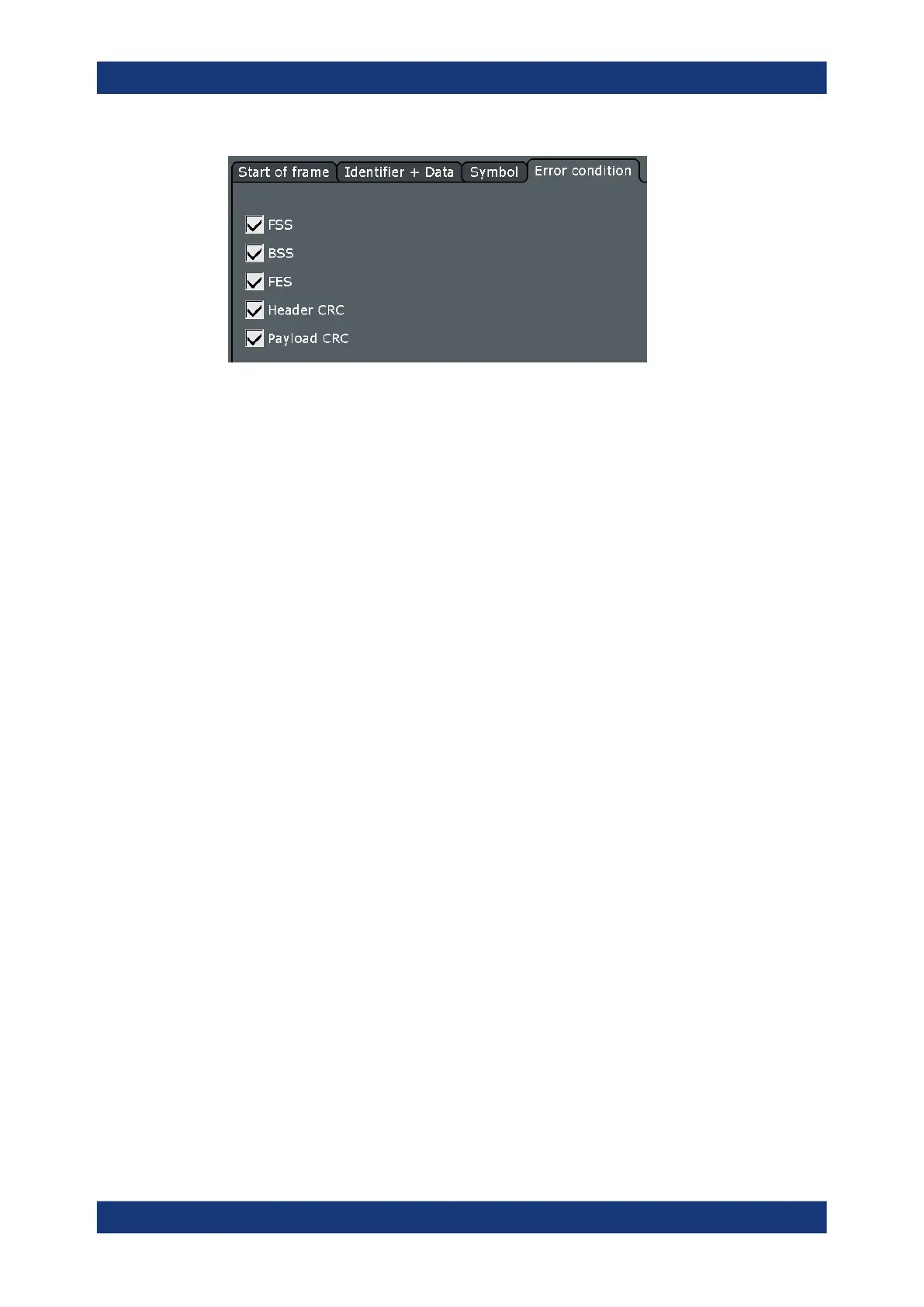

Remote command:
SEARch:TRIGger:FLXRay:BSSerror on page 1585
SEARch:TRIGger:FLXRay:FESerror on page 1585
SEARch:TRIGger:FLXRay:FSSerror on page 1586
SEARch:TRIGger:FLXRay:HCRCerror on page 1586
SEARch:TRIGger:FLXRay:PCRCerror on page 1586
13.7.5.2 FlexRay search results
To get search results, "Enable" the search. You can minimize, shift or close the search
dialog.
The search results are listed in the search result table and marked in the waveform by
blue lines.
The "Show search zoom windows" function allows you to analyze the search results in
more detail. Search zoom and result table are synchronized; if you select a row in the
result table, this result is shown in the search zoom.
For an introduction to search results, see:
●
Chapter 11.1.2, "Search results", on page 446
●
Chapter 11.4, "Result presentation", on page 463
Remote commands:
●
SEARch:RESult:FLXRay:FCOunt? on page 1587
●
SEARch:RESult:FLXRay:FRAMe<m>:ADID? on page 1587
●
SEARch:RESult:FLXRay:FRAMe<m>:CSSTate? on page 1587
●
SEARch:RESult:FLXRay:FRAMe<m>:CSValue? on page 1588
●
SEARch:RESult:FLXRay:FRAMe<m>:CYCount? on page 1588
●
SEARch:RESult:FLXRay:FRAMe<m>:DATA? on page 1588
●
SEARch:RESult:FLXRay:FRAMe<m>:FCSTate? on page 1589
●
SEARch:RESult:FLXRay:FRAMe<m>:FCValue? on page 1589
●
SEARch:RESult:FLXRay:FRAMe<m>:FLAGs? on page 1589
●
SEARch:RESult:FLXRay:FRAMe<m>:PAYLength? on page 1590
●
SEARch:RESult:FLXRay:FRAMe<m>:STATus? on page 1590
FlexRay (option R&S
RTE-K4)
