Waveform generator (Option R&S RTE-B6)
R&S
®
RTE
940User Manual 1326.1032.02 ─ 20
Remote command:
WGENerator<m>:ARBGen:SRATe on page 1935
Samples
Displays the number of samples in the loaded waveform.
Remote command:
WGENerator<m>:ARBGen:SAMPles? on page 1935
15.1.5.2 Saved waveform
For a saved waveform, the following settings are available:

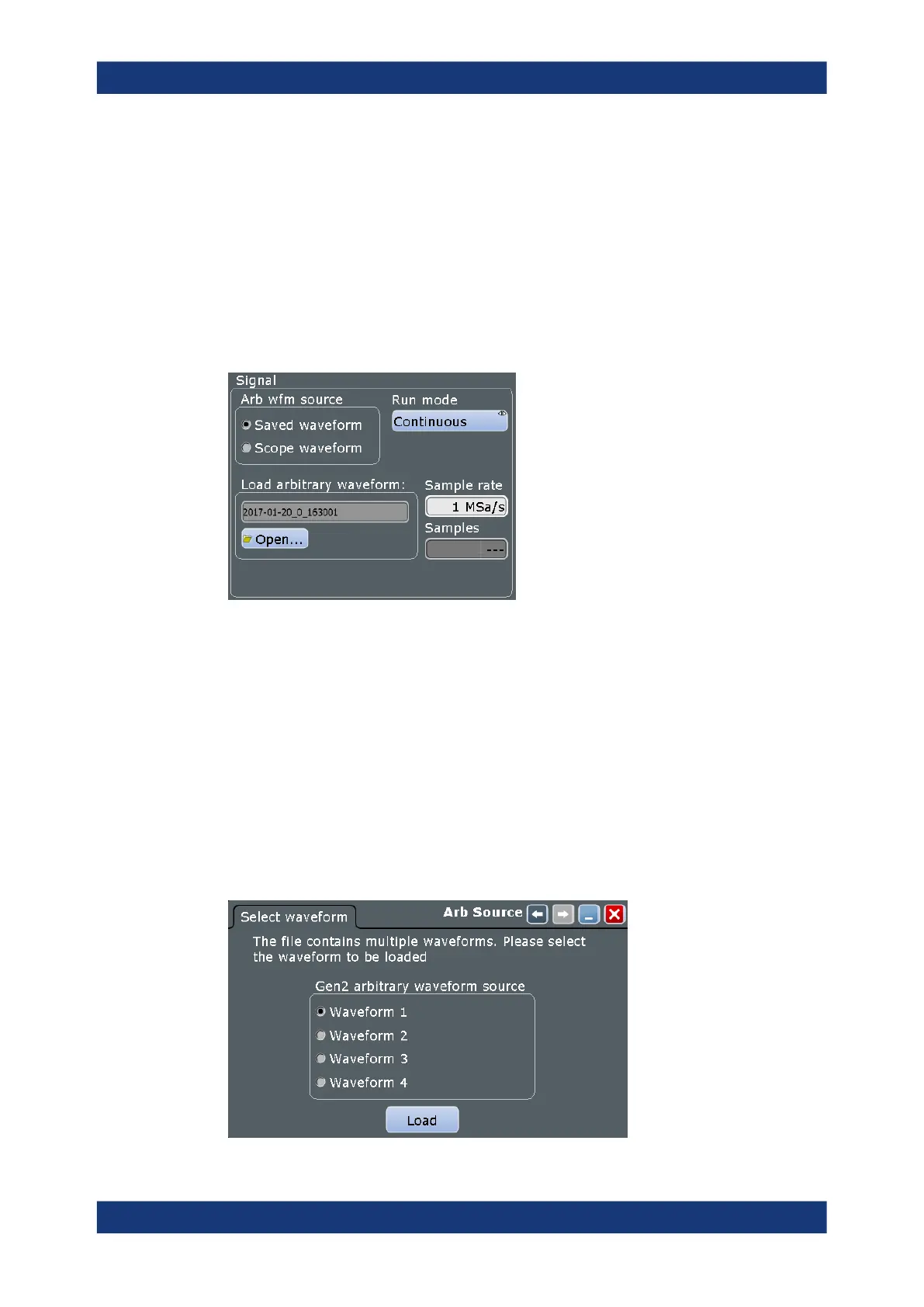

Load arbitrary waveform
Opens a file selection dialog box and loads the selected file. Supported are .bin
and .csv extension files.
Remote command:
WGENerator<m>:ARBGen:NAME on page 1934
WGENerator<m>:ARBGen:OPEN on page 1934
Select waveform
When a multichannel file is loaded into the arbitrary waveform generator, a dialog
appears to select which waveform from the file is loaded.
Select the waveform and press "Load" to load it into the arbitrary waveform generator.
Setup of the waveform generator
