Acquisition and waveform setup
R&S
®
RTE
184User Manual 1326.1032.02 ─ 20
........
Acquisition of 1st wfm
........
Acquisition of 2nd wfm
Acquisition of n-th wfm
Display 1st wfm
Display 2nd wfm
Minimized blind time
Replay time
Deferred visualization of all acquisitions
Acquisition

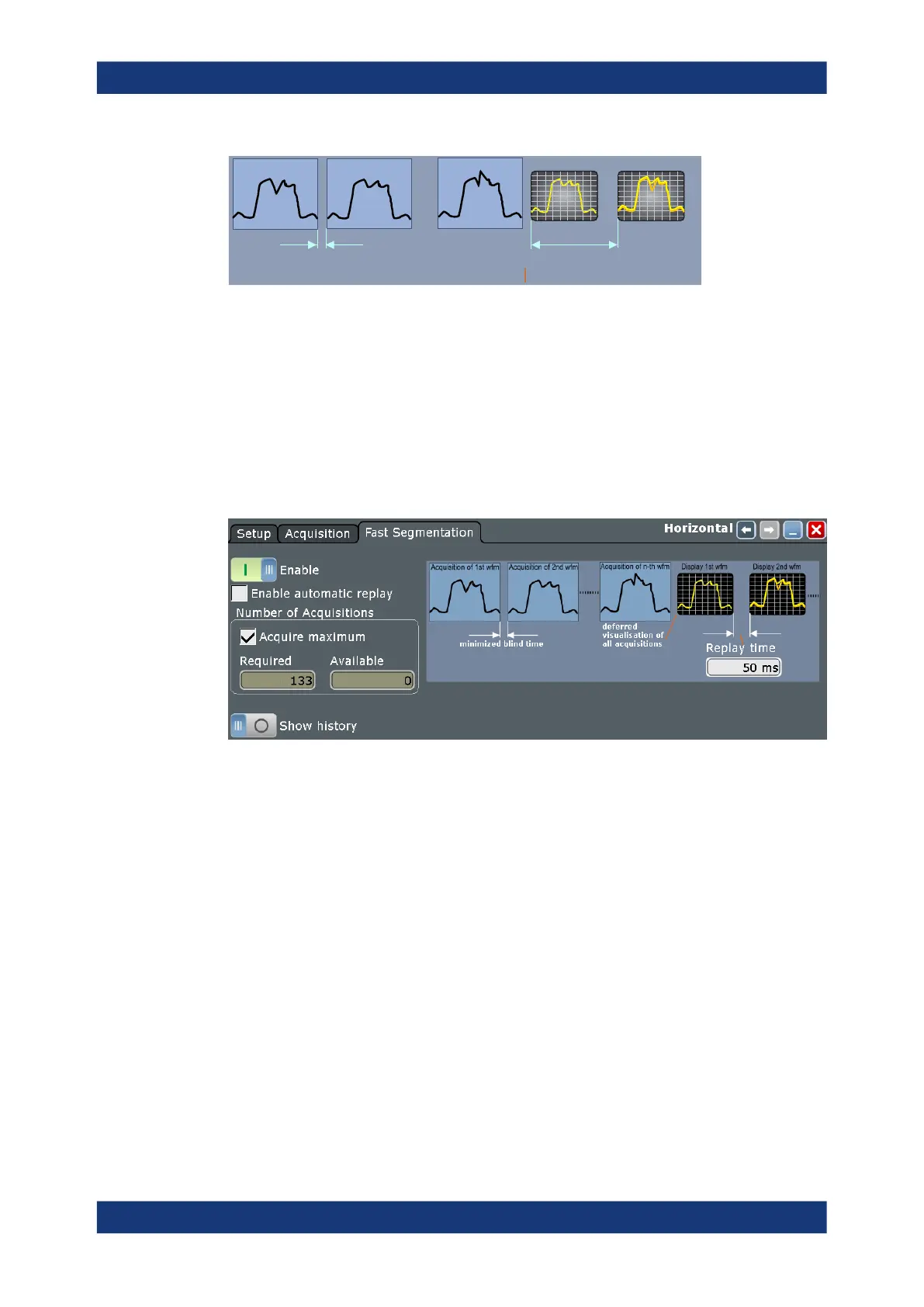

Figure 5-6: Fast segmentation with deferred processing and display
Fast segmentation and history
The acquisition series is written in the sample memory, thus the memory size limits the
number of acquisitions in a series. This memory is the memory that is accessed by the
history, thus the history function is used to read out the contents of the sample mem-
ory.
To use the history functionality, enable "Show history" in the "Fast Segmentation" tab.
The history viewer settings are displayed directly in the "Fast Segmentation" tab.
Enable fast segmentation
Switches the fast segmentation mode on and off.
Remote command:
ACQuire:SEGMented:STATe on page 1116
Enable automatic replay
If enabled, the instrument starts processing and displaying the data when the acquisi-
tion series is captured completely. Depending on the number of acquisitions, it can
take some time until the acquisition series is displayed. If the setting is disabled, the
instrument only captures the data and stores it in the sample memory.
Remote command:
ACQuire:SEGMented:AUToreplay on page 1116
Number of acquisitions
You can define the number of acquisitions to be stored in a fast segmentation acquisi-
tion series:
●
Acquire the maximum number of acquisitions that can be stored in the sample
memory.
Horizontal settings
