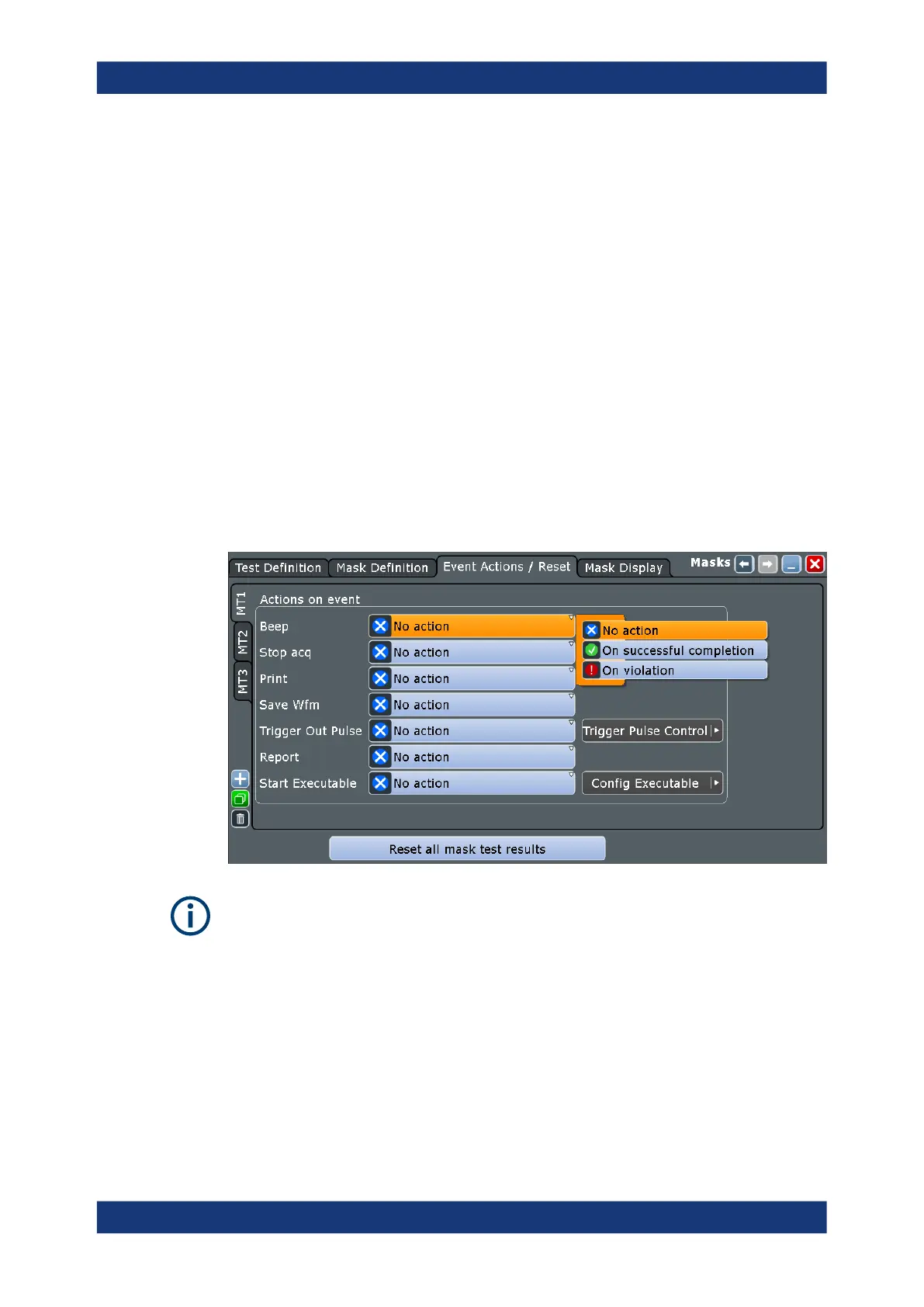

The settings in this tab define what happens when the mask test has failed or when it
has passed successfully. Furthermore, you can reset all totals and results in the "Mask
Test" result boxes.
Most actions can be initiated either on failure or on success:
●
On violation
The action is initiated when the fail criteria is fulfilled.
●
On successful completion
The action is initiated when the [RUN N× SINGLE] acquisition has finished and the
fail criteria is not fulfilled - the fail condition and violation tolerance limit have not
been reached.
There are two usual test practices:
●
Testing a defined number of waveforms against the mask and initiate an action
when the acquisition cycle has been completed without failure:
– Set the number of acquisitions to be tested: "Average count (N-single count)"
– Start [RUN N× SINGLE]
●
Testing a continuous acquisition or a defined number of waveforms against the
mask and initiate an action when the fail criteria is fulfilled
Make sure that the correct "Mask Test" tab is selected on the left side before you enter
the settings.
Beep
Generates a beep sound.
Remote command:
MTESt:ONViolation:BEEP on page 1343
Stop acq.
Stops the waveform acquisition on mask violation.
