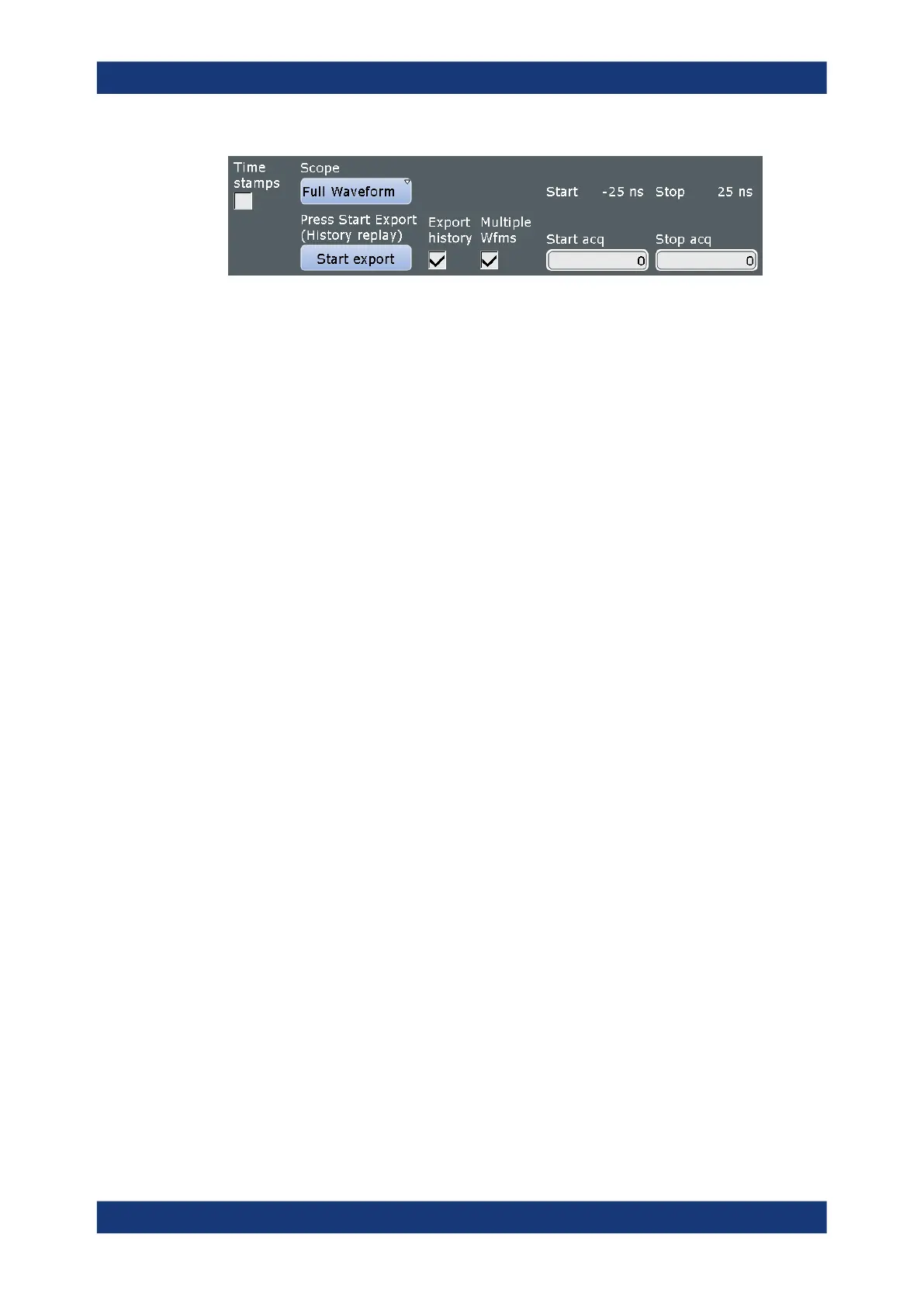

To save several subsequent history waveforms, enable "Multiple Wfms" and define the
range of the waveforms to be saved using "Start acq" and "Stop acq". These range
settings are also available in the "History" dialog box. Start the history replay and
simultaneous saving with "Start Export".
Remote command:
CHANnel<m>[:WAVeform<n>]:HISTory[:STATe] on page 1231
CHANnel<m>[:WAVeform<n>]:HISTory:STARt on page 1232
CHANnel<m>[:WAVeform<n>]:HISTory:STOP on page 1233
Time stamps
If enabled, the relative timestamps of all history waveforms are written into the wave-
form data file at the beginning of each waveform record.
The following format is used:
<timestamp as double float of first acquisition>
<value 1>
<value 2>
<...>
<timestamp as double float of second acquisition>
<value 1>
<value 2>
<...>
Remote command:
EXPort:WAVeform:TIMestamps on page 1406
Save to file
Enter the filename to save the waveform to. Double-tap the filename to open the file
selection dialog box.
By default, the filename has the prefix "RefCurves_". You can define a pattern for auto-
matic naming in the "Autonaming" dialog, see Chapter 12.3, "Autonaming",
on page 498.
"Save"
Saves the waveform as a reference waveform in the selected file.
"Save As..."
Opens the file selection dialog box and saves the waveform to the
selected file. See also Chapter 12.7, "File selection dialog",
on page 511
".bin/.xml/.csv"
Selects the file format. Note that reference waveforms can be loaded
from .bin files only.
See also: Chapter 12.2.1, "Waveform export files", on page 478.
