Protocol analysis
R&S
®
RTE
896User Manual 1326.1032.02 ─ 20
Enable "Show Details" in the decode table to display a more detailed analysis of the
selected frame.

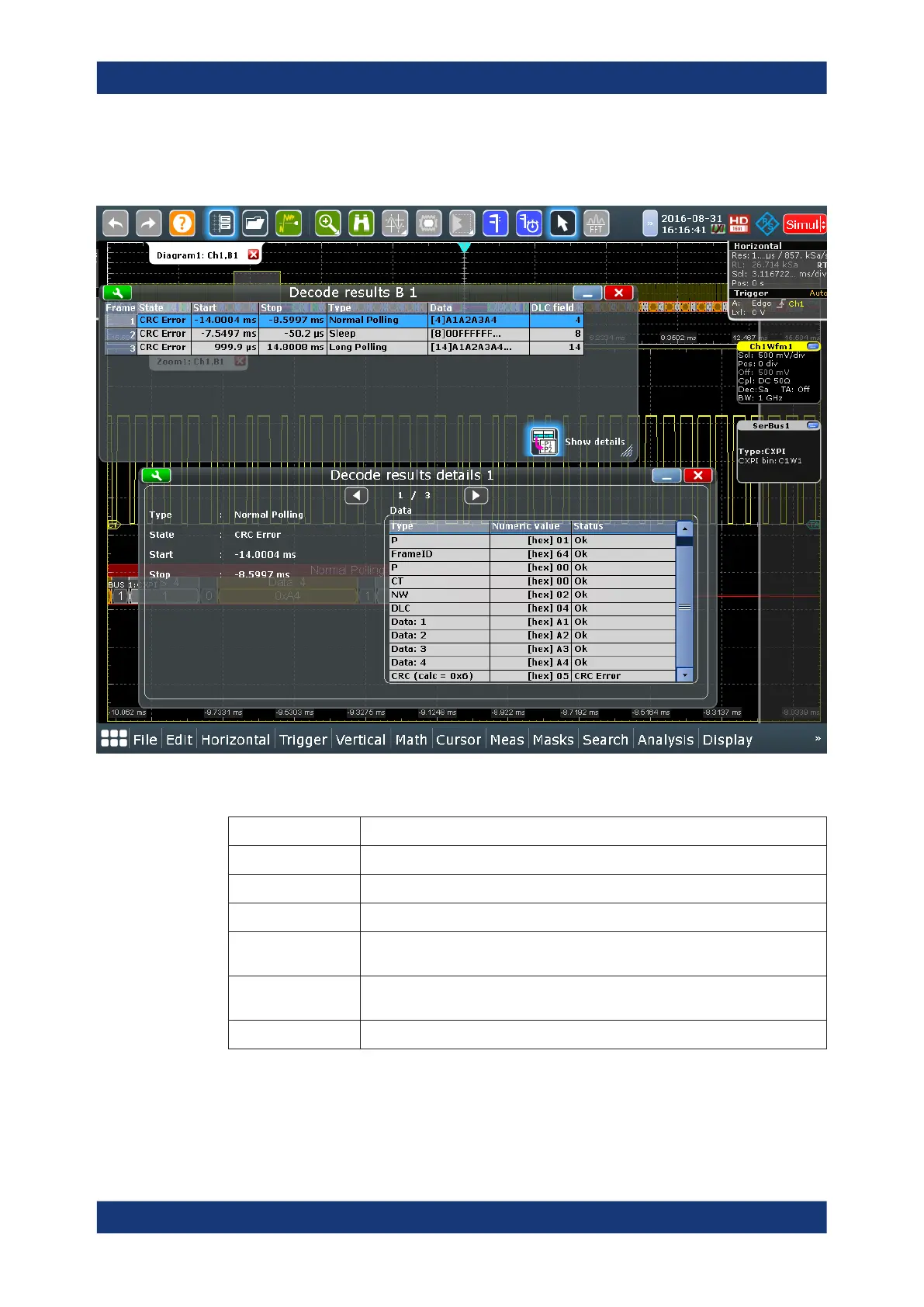

Figure 13-117: Decoded CXPI signal result tables, normal polling frame with CRC error
Table 13-29: Content of the "Decode results" table
Column Description
State Overall state of the frame
Start Time of frame start
Stop Time of frame stop
Type Frame type: normal, normal polling, sleep, long, long polling, PID, PTYPE, PTYPE
+PID, unknown, inter-frame-space
Data Displays the first four data words in the frame. For the value of the following data
words, refer to Content of the "Decode results details" table.
DLC field Data length code, number of data bytes
CXPI (option R&S RTE-K76)
