Waveform generator (Option R&S RTE-B6)
R&S
®
RTE
929User Manual 1326.1032.02 ─ 20

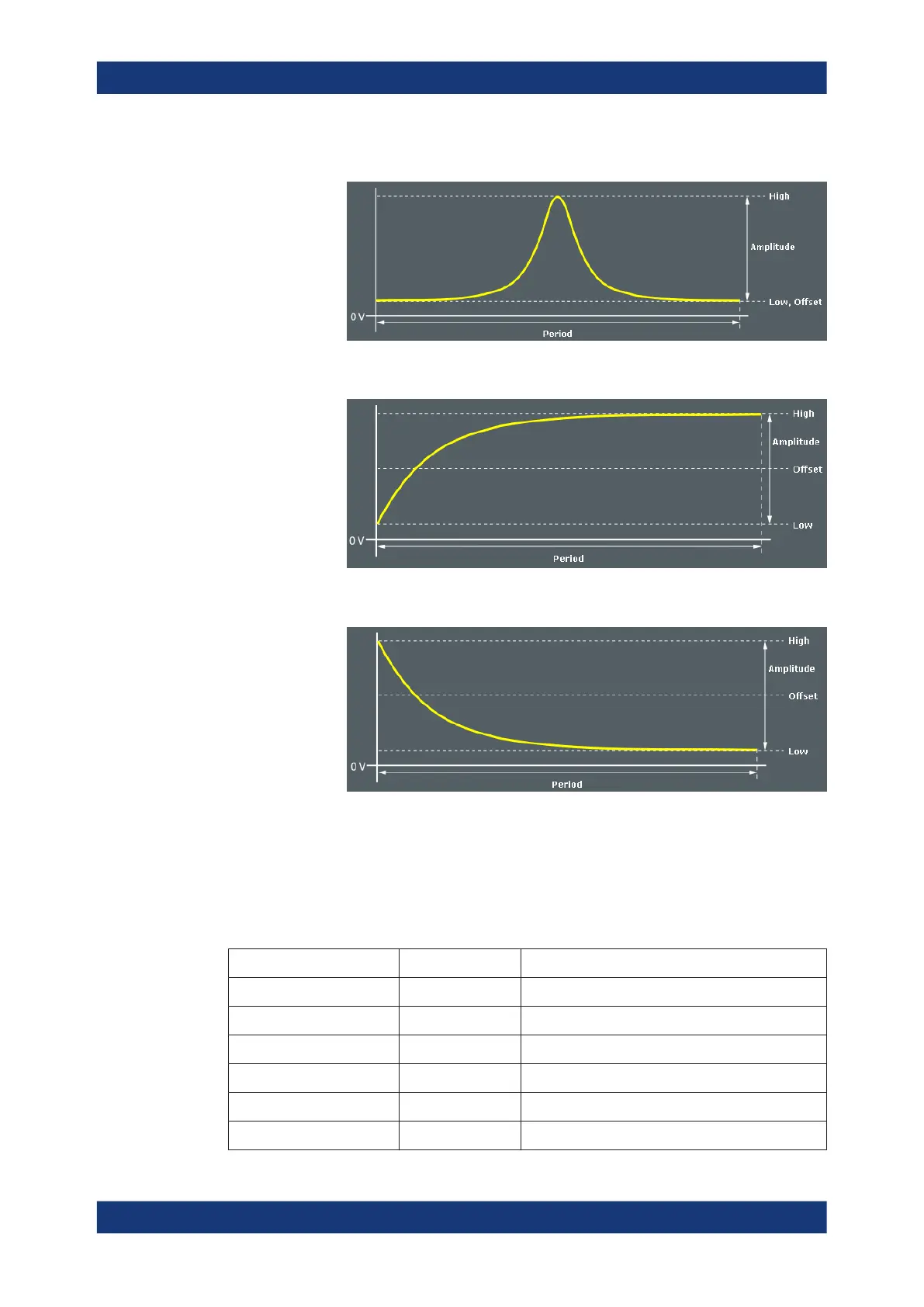

"Lorentz"
Generates a Lorentz signal . You can set the Frequency and Period.
"Exp. rise"
Generates an exponential rise signal. You can set the Frequency and
Period.
"Exp. fall"
Generates an exponential fall signal. You can set the Frequency and
Period.
Remote command:
WGENerator<m>:FUNCtion[:SELect] on page 1924
Frequency
Sets the frequency of the waveform. The available frequency range depends on the
selected "Function Type", see Frequency range of the function generator waveforms.
Table 15-1: Frequency range of the function generator waveforms
"Function type" Min frequency Max frequency
"Sine" 0.001 Hz 100 MHz
"Square" 0.001 Hz 30 MHz
"Ramp" 0.001 Hz 1 MHz
"DC" - -
"Pulse" 0.001 Hz 30 MHz
"Cardinal sine" 0.001 Hz 5 MHz
Setup of the waveform generator
