19.1.3 Asynchronous Operation

Asynchronous Mode supports full-duplex communication, in which both transmitter and

receiver use the same data frame format and have the same baud rate. Data is

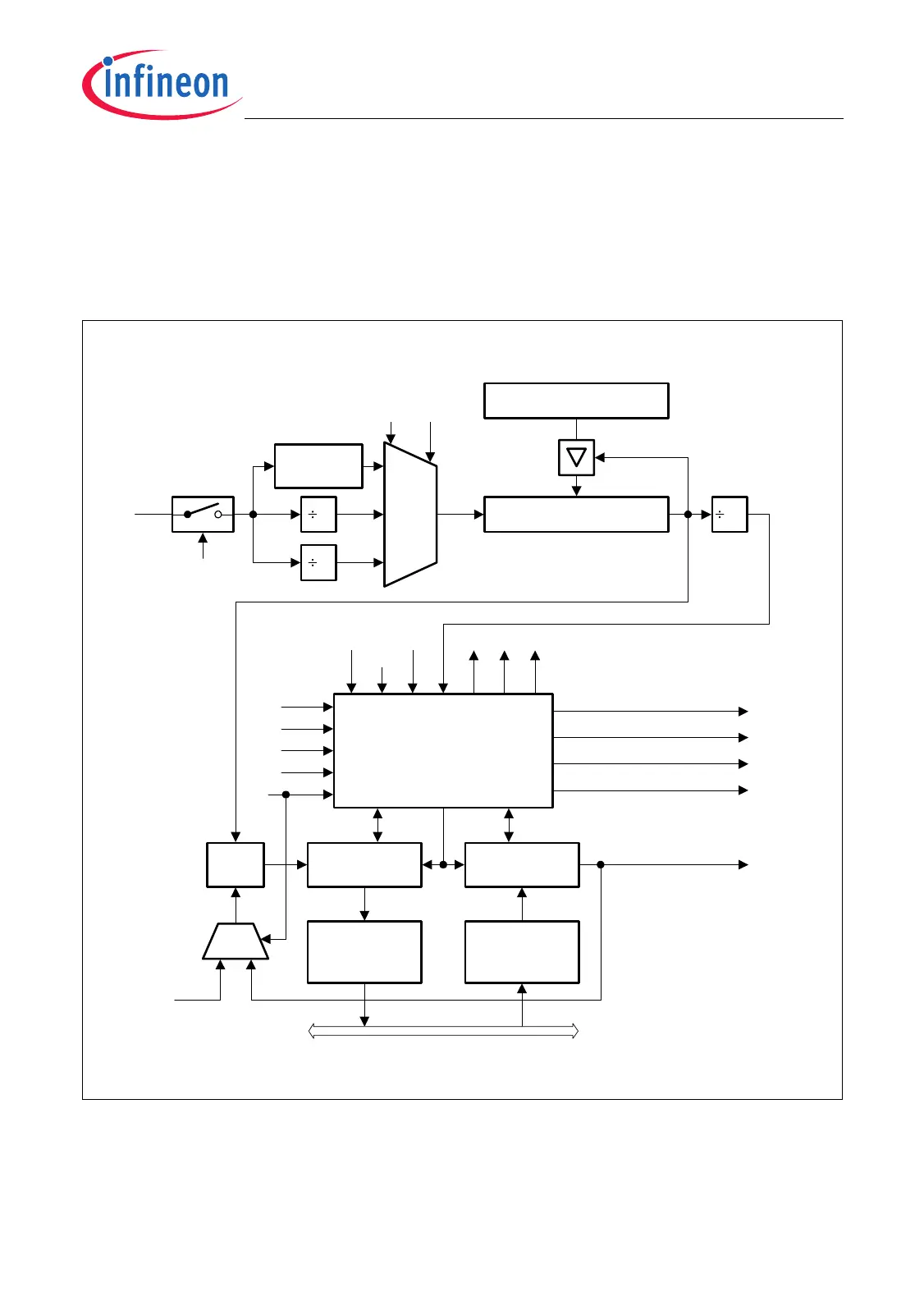

transmitted on pin TXD and received on pin RXD. Figure 19-2 shows the block diagram

of the ASC when operating in Asynchronous Mode.

Figure 19-2 Asynchronous Mode of the ASC

Serial Port Control

MCA05763

13-Bit Baud Rate Timer

13-Bit Reload Register

BRT

DIV

ASC

Fractional

Divider

FDE

BRS

Receive Int. Req.

Transmit Int. Req.

Transmit Buffer Int. Req.

Error Int. Req.

EIR

TBIR

TIR

RIR

ODD

STP OEPEFE

Shift Clock

Receive Shift

Transmit Shift

TXD

Receive

Buffer Reg.

RBUF

Samp-

ling

Transmit

Buffer Reg.

TBUF

RXD

Internal Bus

MUX

REN

FEN

PEN

OEN
