TC1796

Peripheral Units (Vol. 2 of 2)

Micro Link Interface (MLI)

User’s Manual 23-59 V2.0, 2007-07

MLI, V2.0

23.2.5.3 Command Frame Sent Events

A Command Frame sent event is generated when the MLI transmitter has sent a

Command Frame through pipe x (x = 0-3) that has been correctly received. Separate

status/control bits are assigned to each pipe. All four pipe related Command Frame sent

events are concatenated to one common Command Frame sent event.

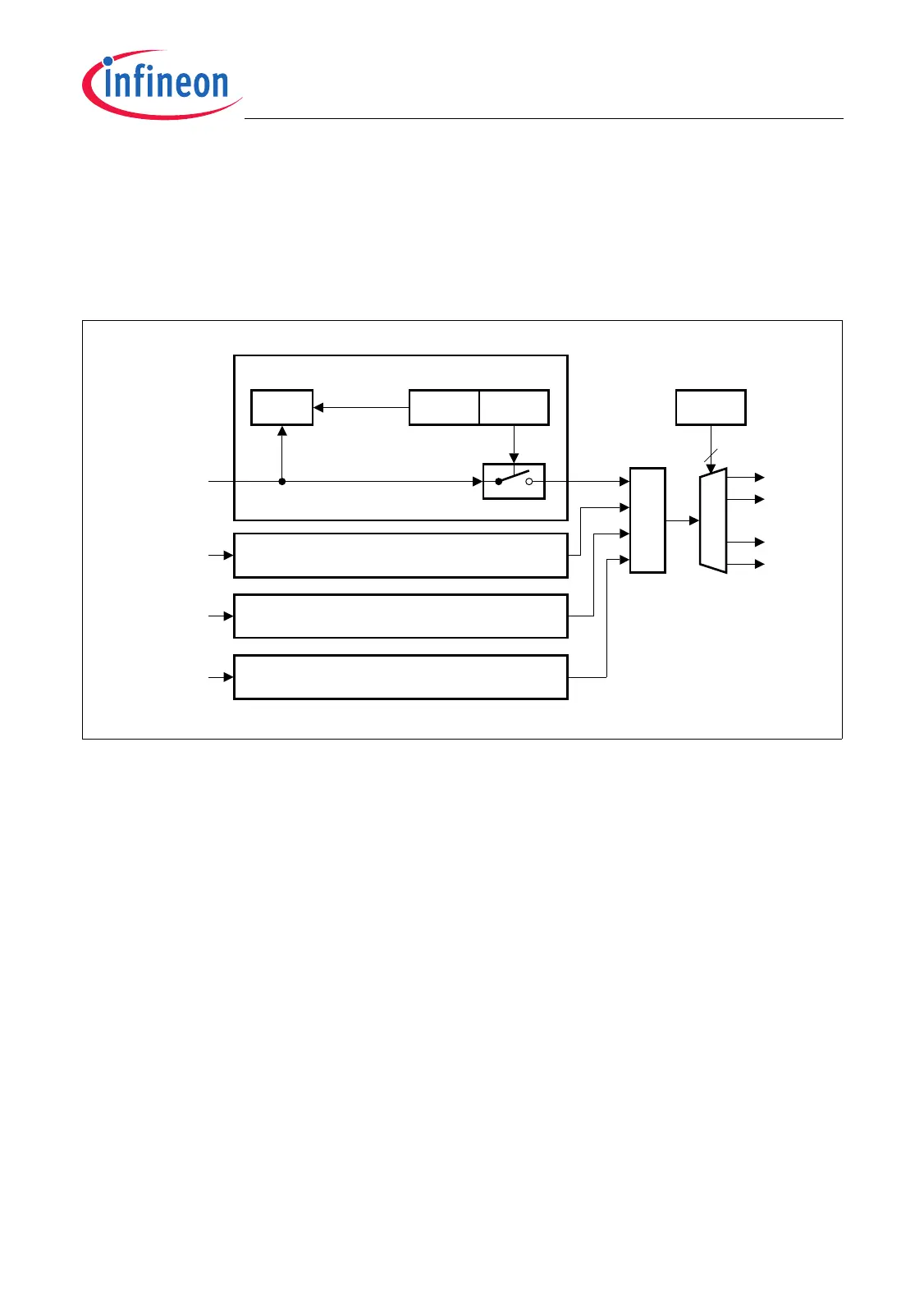

Figure 23-41 Command Frame Sent Event Logic

CFSI1 Control Logic

CFSI3 Control Logic

CFSIE0

TIER

CFSIR0CFSI0

TISR

Software

Clear

Set

MCA05898_mod

Command

Frame Sent

Event

CFSI0 Control Logic

Command

Frame S ent in

Pipe 0 Event

Command

Frame S ent in

Pipe 1 Event

Command

Frame S ent in

Pipe 2 Event

Command

Frame S ent in

Pipe 3 Event

To SR0

To SR1

To SR6

To SR7

CFSIP

TINPR

≥1
