25.3.6 On-Chip Connections

This section describes the on-chip interconnections of the ADC0/ADC1 modules.

25.3.6.1 Reference Voltage Selection

Generally, the ADC modules allow the analog reference voltage for each analog channel

to be selected via the CHCONn.REF bit field. In the TC1796, only ADC0 is able to select

among three analog reference voltages: V

AREF0

, AIN0, and AIN1 (see Figure 25-33). In

ADC1 always V

AREF1

is selected as analog reference voltage source.

Note: The selections ADC0_CHCONn.REF = 11

must not be used. The settings of bit

fields ADC1_CHCONn.REF are “don’t care”.

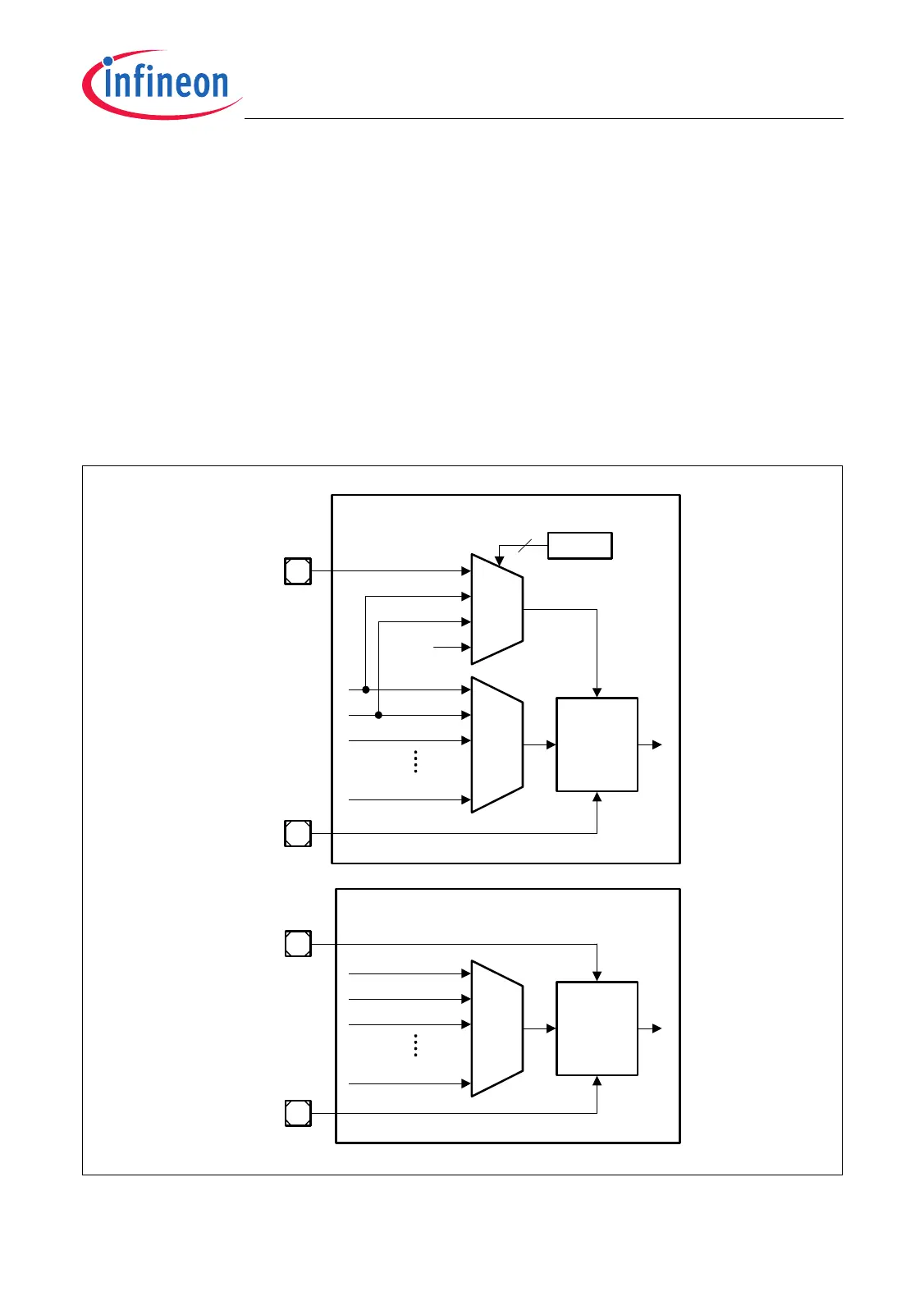

Figure 25-33 ADC0/ADC1 Reference Voltage Selections

MCA06036

AIN0

AIN31

AIN1

AIN2

MUX

AREF

[0]

A/D

Converter

AREF

[1]

AREF

[2]

AREF0

AGND0

ADC0

REF

ADC0_CHCONn

AREF1

AGND1

ADC1

N.C.

MUX

AIN0

AIN31

AIN1

AIN2

A/D

Converter

MUX
