TC1796
Peripheral Units (Vol. 2 of 2)
General Purpose Timer Array (GPTA)
User’s Manual 24-37 V2.0, 2007-07
GPTA, V2.0
24.2.3 Signal Generation Unit
As described in detail in the following sections, the Signal Generation Unit contains three
types of modules:
Global Timer (GT)
Global Timer Cell (GTC)
Local Timer Cell (LTC)
24.2.3.1 Global Timers (GT)
The GPTA provides two global 24-bit timers (GT) that are connected to the clock bus with
its eight clock lines. Each GT is locally equipped with a clock source multiplexer, a 24-bit
up-counter, a 24-bit reload register, and a 24-bit greater/equal comparator (see
Figure 24-25).
Note: Index variable k (= 0, 1) determines the number of the Global Timer.

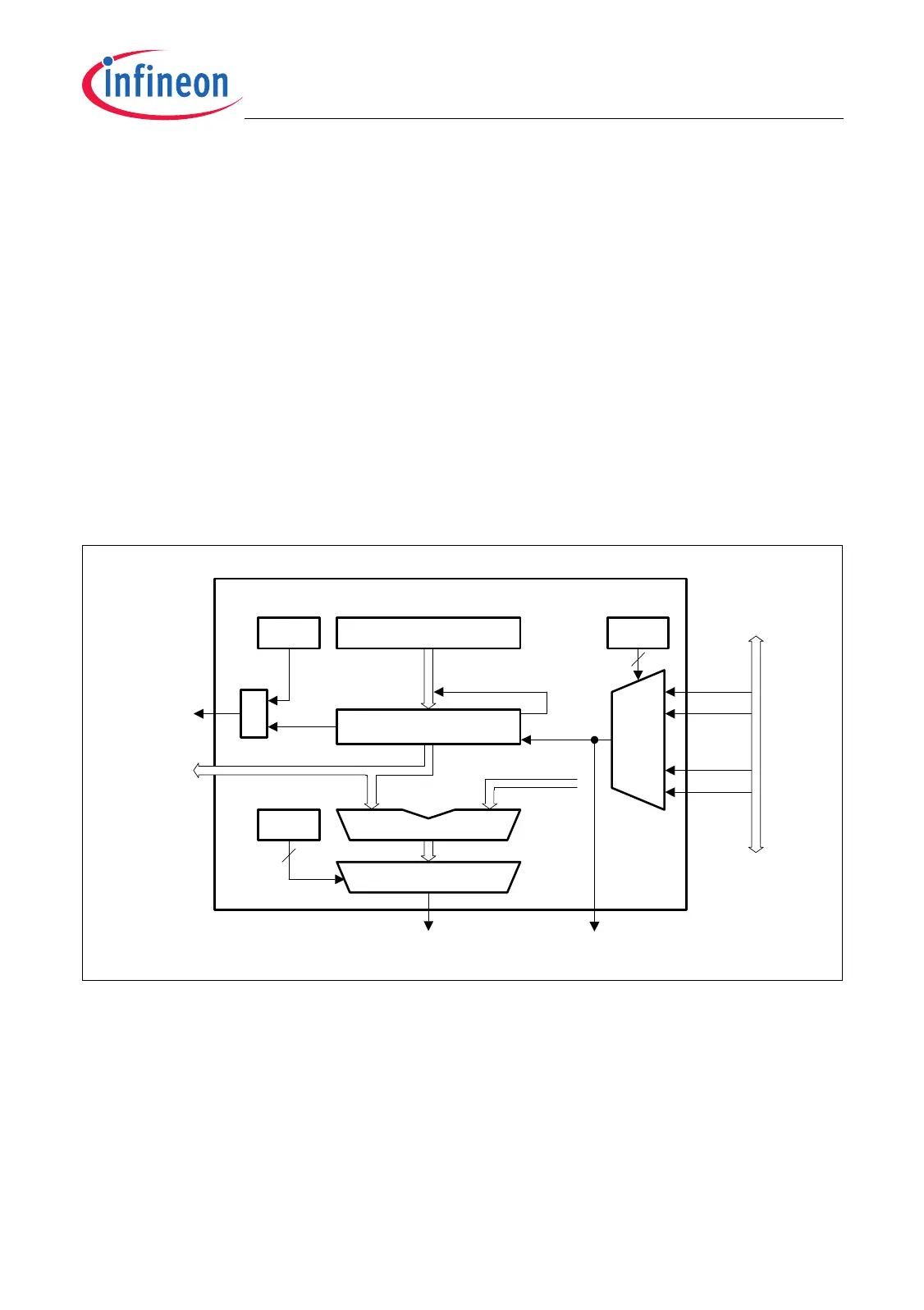

Figure 24-25 Block Diagram of Global Timer (GT)
The following registers are assigned to the Global Timers GTk (k = 0, 1):
GTCTRk = Global Timer Control Register k (see Page 24-170)
GTREVk = Global Timer Reload Value Register k (see Page 24-172)
GTTIMk = Global Timer Register k (see Page 24-171)
SRSC0 = Service Request State Clear Register 0 (see Page 24-206)
SRSS0 = Service Request State Set Register 0 (see Page 24-208)
MCB05934
MUX
GTCTRk
Clock
Bus
.
.
.
Clock
Select
TIM (24-Bit Timer)
GTTIMk
REV (24-Bit Reload)
GTREVk
TEVk
REN
GTCTRk
&
GPTA Data Bus
MUX (16:1)
SCO
GTCTRk
TGEk
Reload
3
4
SQTk
GTVk
CLK0
CLK1
CLK6
CLK7
