TC1796

System Units (Vol. 1 of 2)

General Purpose I/O Ports and Peripheral I/O Lines

User’s Manual 10-32 V2.0, 2007-07

Ports, V2.0

10.5 Port 2

This section describes the Port 2 functionality in detail.

10.5.1 Port 2 Configuration

Port 2 is a 14-bit bi-directional general-purpose I/O port that can be used either for the

SSC0/SSC1 chip select output lines or for MSC0/MSC1 or GPTA0/GPTA1/LTCA2 I/O

lines.

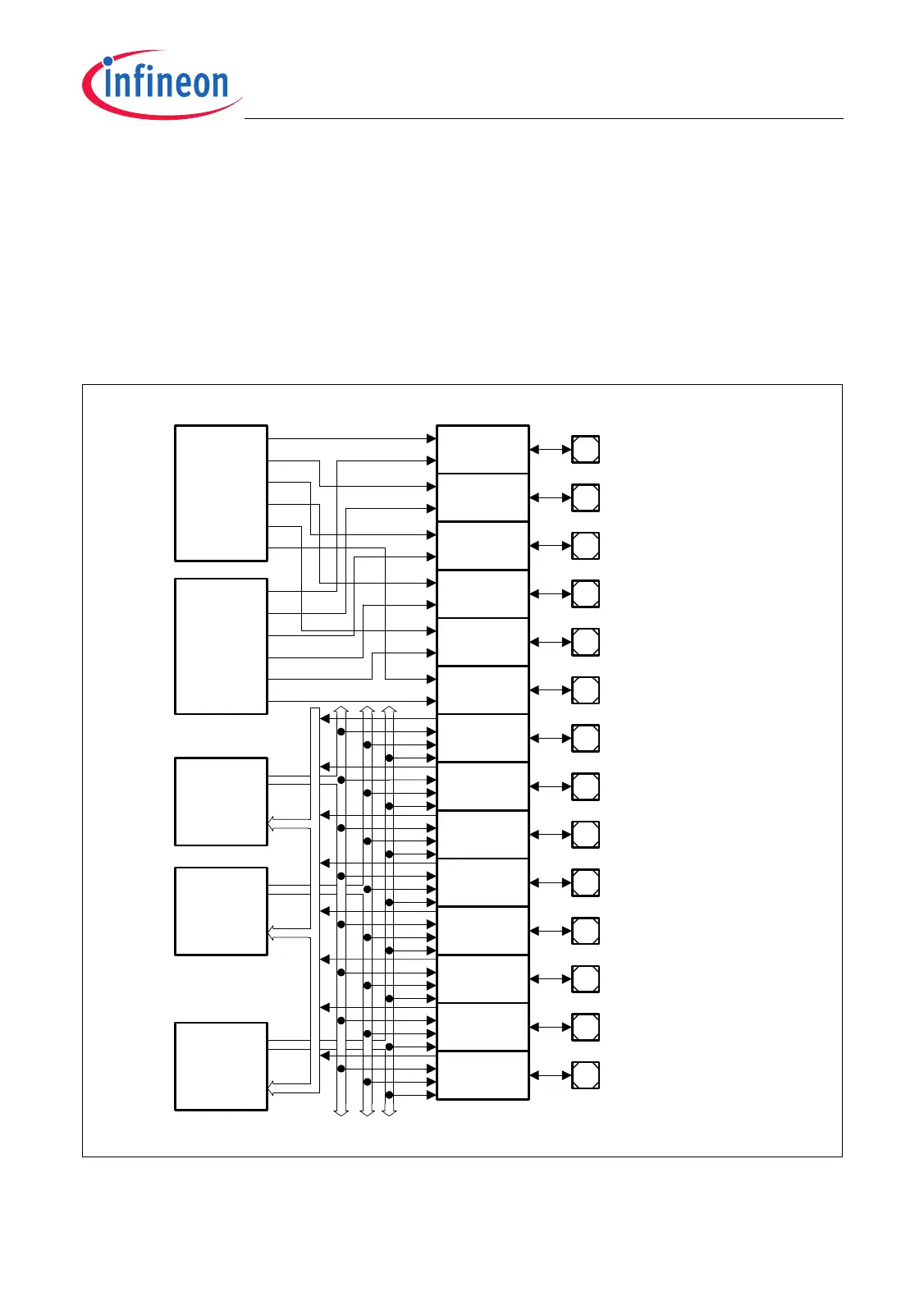

Figure 10-6 Port 2 Configuration Diagram

MCA05657

P2.2

Control

P2.3

Control

P2.4

Control

P2.5

Control

P2.6

Control

P2.7

Control

P2.8

Control

P2.9

Control

P2.10

Control

P2.11

Control

P2.12

Control

P2.13

Control

P2.14

Control

P2.15

Control

GPTA0

P2.2 / SLSO2

P2.3 / SLSO3

P2.4 / SLSO4

P2.5 / SLSO5

P2.6 / SLSO6

P2.7 / SLSO7

P2.8 / IN0 / OUT0

P2.9 / IN1 / OUT1

P2.10 / IN2 / OUT2

P2.11 / IN3 / OUT3

P2.12 / IN4 / OUT4

P2.13 / IN5 / OUT5

P2.14 / IN6 / OUT6

P2.15 / IN7 / OUT7

SSC0

SSC1

Slave Select OutputsSlave Select Outputs

GPTA1

LTCA2
