Controller Area Network (MultiCAN) Controller
User’s Manual 22-214 V2.0, 2007-07
MultiCAN, V2.0
22.9.6.1 CAN Module Register Map
The complete MultiCAN module register address map as shown in Figure 22-42
combines the MultiCAN register address map from Page 22-60 and the TTCAN register
address map from Page 22-156. It additionally shows the general implementation-
specific registers for clock control, module identification, and interrupt service request
control and adds the absolute address information.

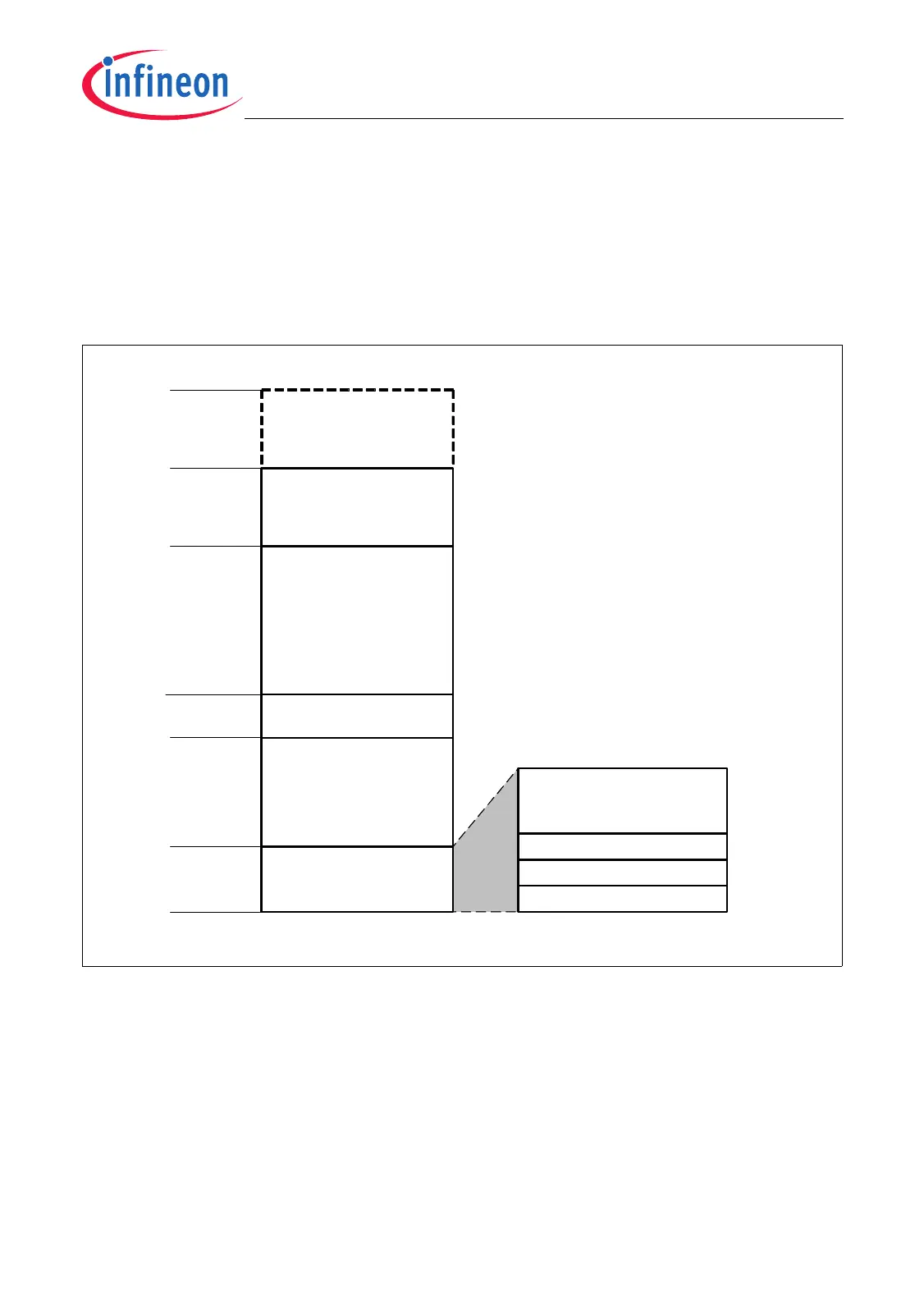

Figure 22-42 Complete MultiCAN Module Register Address Map with TTCAN
MCA05868_mod
General Module
Control Registers
MultiCAN
Registers
F000 4000
H
+F000 4100
H
Clock Control Register
Module Identification Reg.
Fractional Divider Register
+ 00
H
+ 08
H
+ 0C
H
+F000 4300
H
Interrupt Service Request
Control Registers 0 - 15
+ C0
H
+ FC
H
. .
TTCAN Registers
+F000 5600
H
TTCAN
Scheduler
Memory
+F000 4280
H
MultiCAN
Registers
+F000 5800
H
+F000 5FFF
H
