TC1796

Peripheral Units (Vol. 2 of 2)

Micro Link Interface (MLI)

User’s Manual 23-64 V2.0, 2007-07

MLI, V2.0

23.2.6.5 Command Frame Received Event

A Command Frame received event is generated if the MLI receiver has correctly

received a Command Frame through Pipe Number x (x = 0-3). Separate status/control

bits are assigned to each pipe. All four pipe related Command Frame received in pipe x

events are concatenated to one common Command Frame received event.

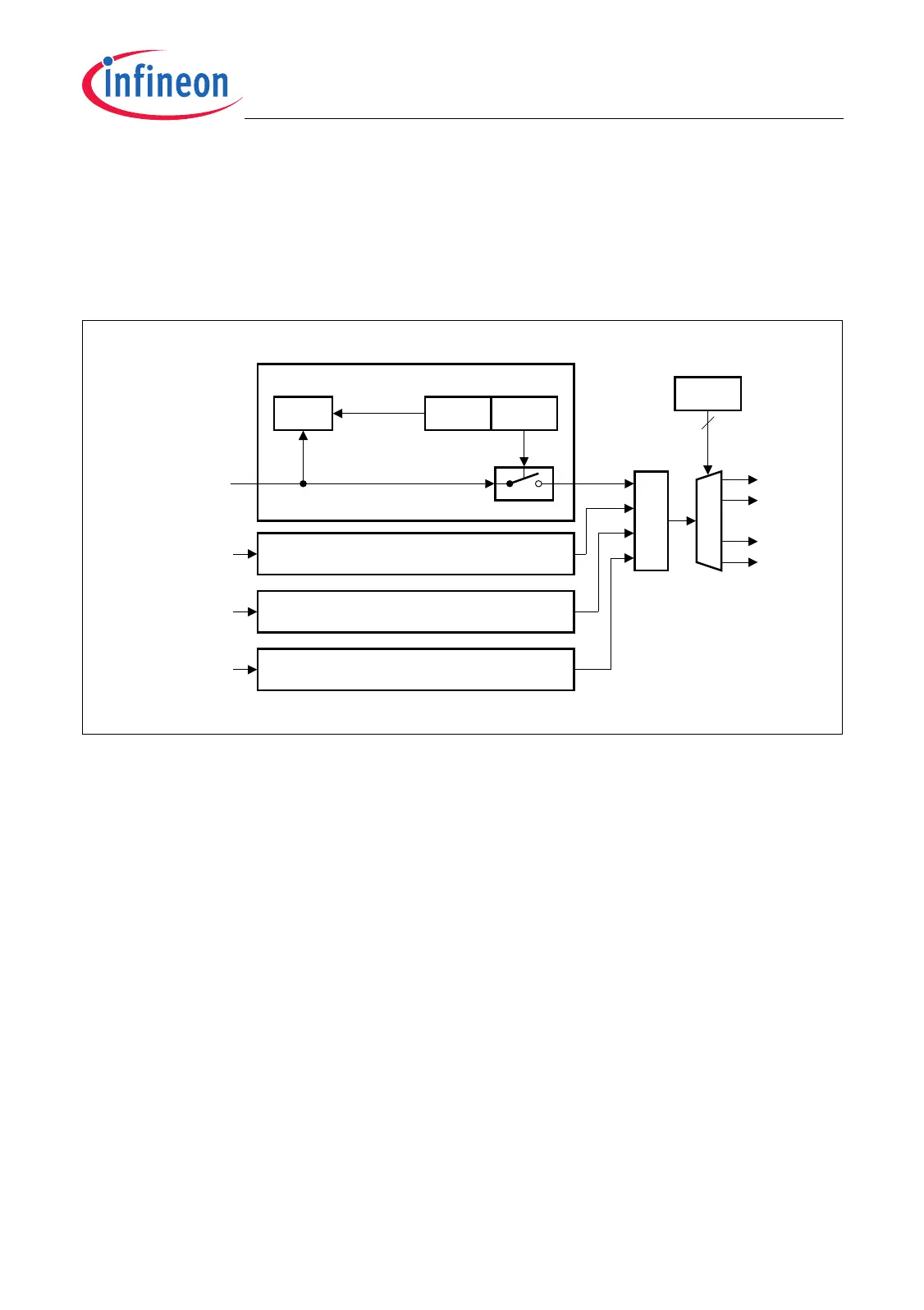

Figure 23-46 Command Frame Received Event Logic

Command

Frame Received

in Pipe 0 Event

CFRIE0

RIER

CFRIR0CFRI0

RISR

Software

Clear

Set

MCA05902_mod

Command

Frame

Received

Event

CFRI0 Control Logic

≥1

Command

Frame Received

in Pipe 1 Event

CFRI1 Control Logic

CFRI2 Control Logic

CFRI3 Control Logic

Command

Frame Received

in Pipe 2 Event

Command

Frame Received

in Pipe 3 Event

CFRIP

RINPR

To SR0

To SR1

To SR6

To SR7
