TC1796

System Units (Vol. 1 of 2)

General Purpose I/O Ports and Peripheral I/O Lines

User’s Manual 10-54 V2.0, 2007-07

Ports, V2.0

10.8 Port 5

This section describes the Port 5 functionality in detail.

10.8.1 Port 5 Configuration

Port 5 is an 8-bit bi-directional general-purpose I/O port which can be used for the

ASC0/ASC1, MSC0/MSC1, or MLI0 interface I/O lines.

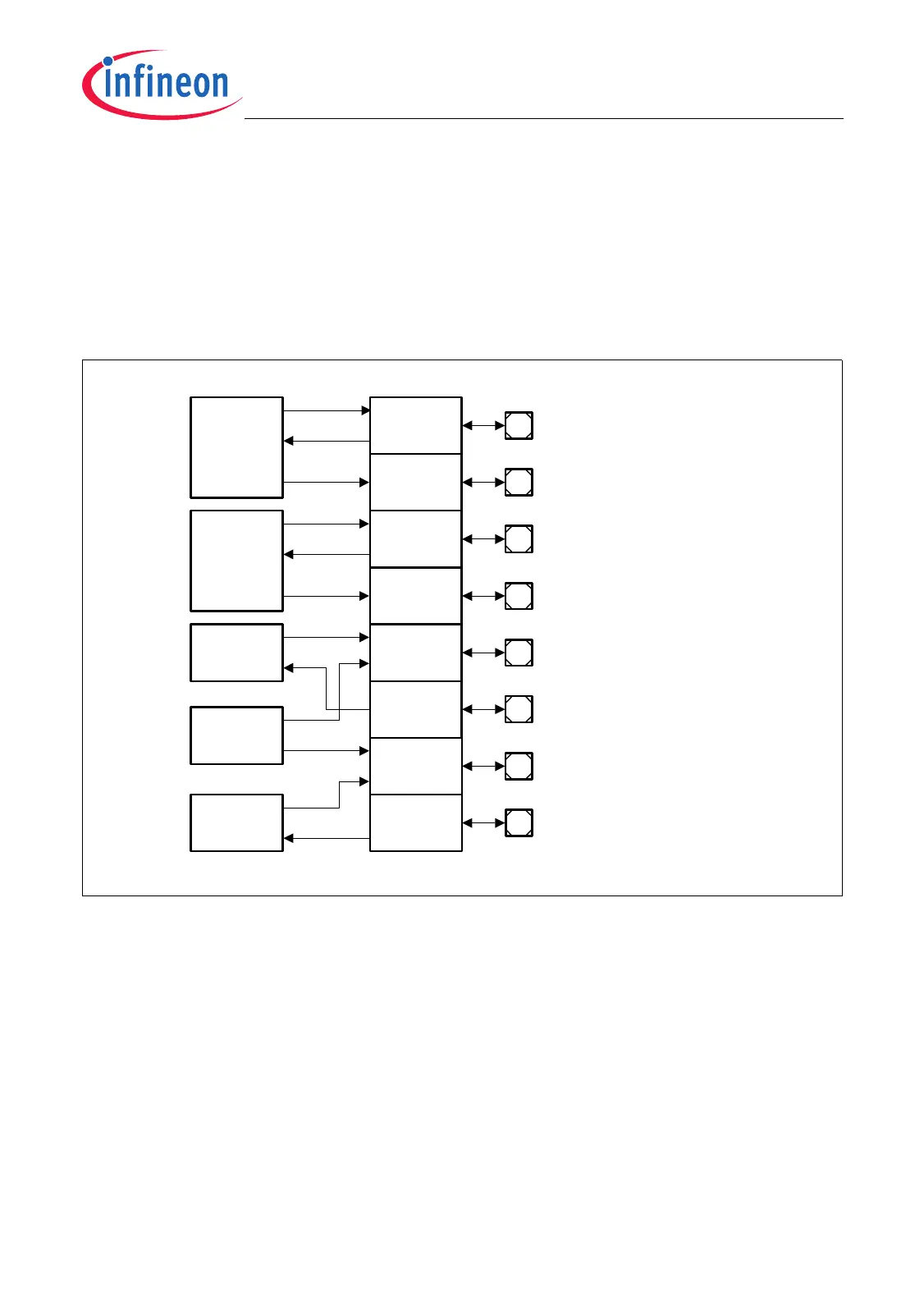

Figure 10-9 Port 5 Configuration Diagram

MCA05660

P5.0 / RXD0A

P5.0

Control

P5.1

Control

P5.2

Control

P5.3

Control

P5.4

Control

P5.5

Control

P5.6

Control

P5.7

Control

ASC0

P5.1 / TXD0A

P5.2 / RXD1A

P5.3 / TXD1A

P5.4 / EN00 / RREADY0B

P5.5 / SDI0

P5.6 / EN10 / TVALID0B

P5.7 / SDI1

ASC1

MSC0

MLI0

MSC1
