24.2.2.1 Filter and Prescaler Cell (FPC)
Each GPTA contains six filter and prescaler cells, FPC0 to FPC5. As shown in
Figure 24-4, each FPC is equipped with an signal input multiplexer, a clock multiplexer,
an edge detection unit, a 16-bit timer, a 16-bit compare register, a 16-bit comparator, and
an FPC control unit (see also Page 24-115 for the FPC functional algorithm description).

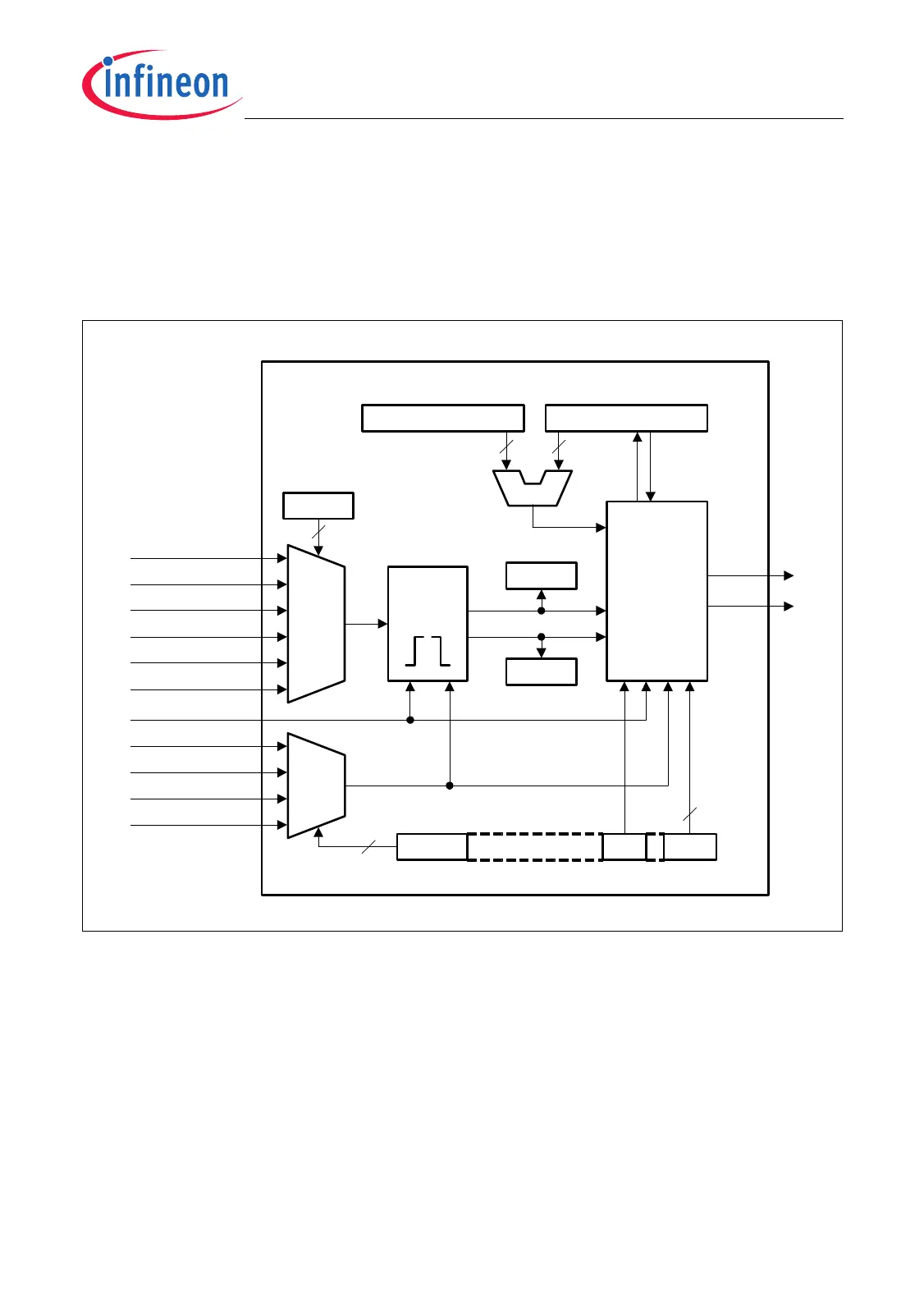

Figure 24-4 Filter and Prescaler Cell Architecture
FPC Registers
The following registers are assigned to the filter and prescaler cells FPCk (k = 0-5):
• FPCSTAT = Filter and Prescaler Cell Status Register (see Page 24-155)
• FPCCTRk = Filter and Prescaler Cell Control Register k (see Page 24-156)
• FPCTIMk = Filter and Prescaler Cell Timer Register k (see Page 24-158)
≥
