TC1796
Peripheral Units (Vol. 2 of 2)
General Purpose Timer Array (GPTA)
User’s Manual 24-221 V2.0, 2007-07
GPTA, V2.0
24.4.2.1 Output Multiplexer
The output multiplexer shown in Figure 24-75 and Figure 24-77 connects the 32 GTC
output lines and the 64 LTC output lines with the I/O groups (5 × 8 = 40 output lines) and
the output groups (7 × 8 = 56 output lines).

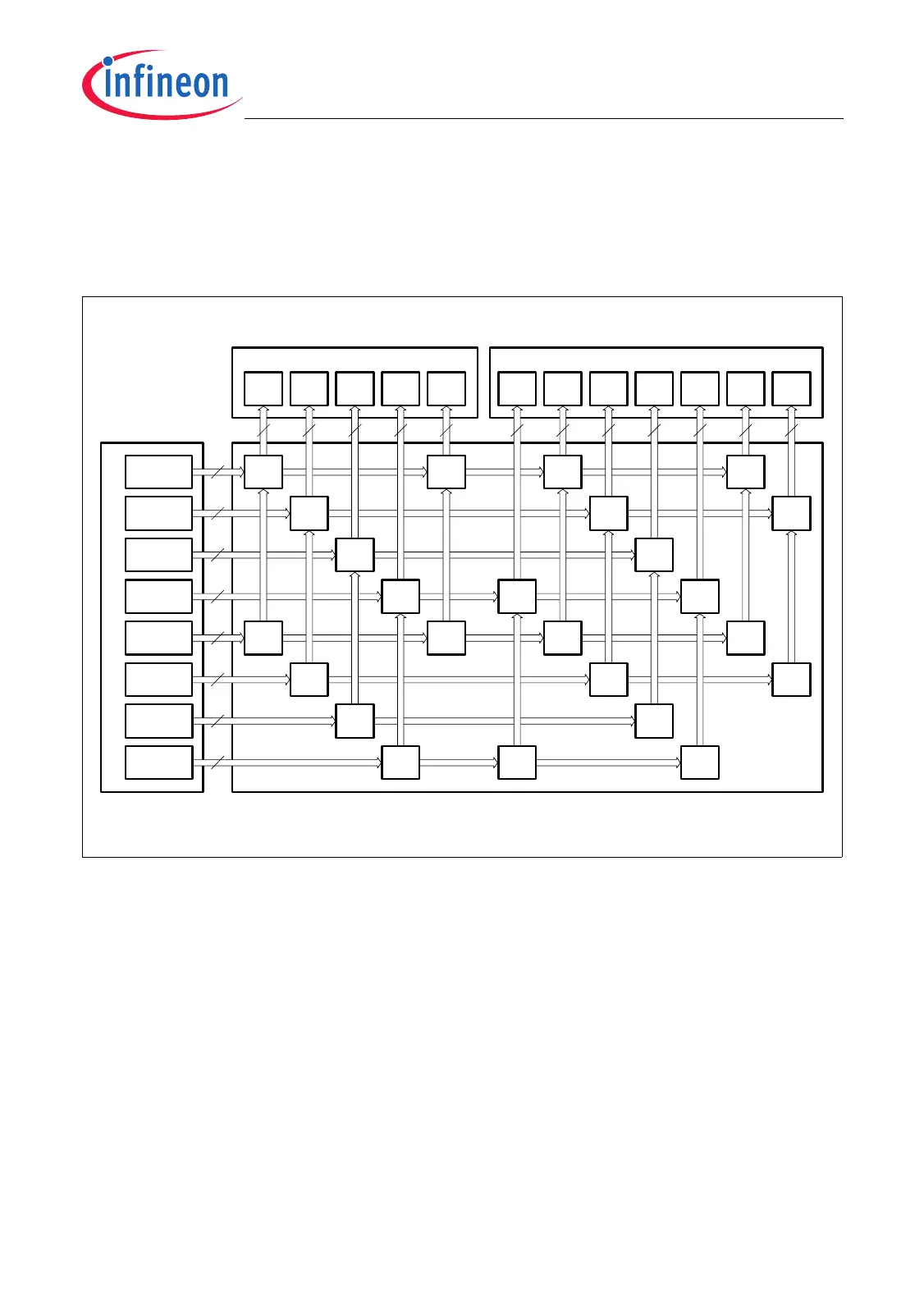

Figure 24-77 Output Multiplexer of LTCA2
The output multiplexer contains Output Multiplexer Groups (OMGs) that connect the
Local Timer Cells with the input lines of the I/O groups and output groups. The LTCs are
grouped into eight LTC groups (LTCG[7:0]) with 8 cells each. In the same way, I/O
groups and output groups are grouped into 12 groups (five I/O groups and seven output
groups) with 8 lines each.
Output
Multiplexer
LTC Groups
MCA05986
I/O Groups
IOG0 IOG1 IOG2 IOG3 IOG4
LTCG0
LTC[07:00]
LTCG1
LTC[15:08]
LTCG2
LTC[23:16]
LTCG3
LTC[31:24]
LTCG5
LTC[47:40]
LTCG6
LTC[55:48]
LTCG7
LTC[63:56]
OMG
10
OMG
11
OMG
12
OMG
13
OMG
14
OMG
24
OMG
20
OMG
21
OMG
22
LTCG4
LTC[39:32]
Output Groups
OG0 OG1 OG2 OG3 OG4 OG5 OG6
OMG
18
OMG
28
OMG
17
OMG
19
OMG
29
OMG
1A
OMG
2A
OMG
1B
OMG
2B
OMG
1C
OMG
1D
OMG
2D
8
8
8
8
8
8
8
8
8
8 8 8 8 8 8 8 8 8 8 8
OMG
23
OMG
27
OMG
2C
