TC1796

System Units (Vol. 1 of 2)

System Control Unit

User’s Manual 5-49 V2.0, 2007-07

SCU, V2.0

5.8 GPTA1 Input IN1 Control

In the TC1796, the input line IN1 of the GPTA0, GPTA1, and LTCA2 module can be used

to measure the baud rate of an ASC0 or ASC1 receiver input signal with GPTA1. This

feature is controlled by a bit of the SCU, SCU_CON.GIN1S. Bit GIN1S controls a 4-to-1

multiplexer that makes it possible to switch several port lines to the IN1 input of the

GPTA1 module. After reset, the nominal GPTA input IN1 (P2.9) is connected to IN1 of

GPTA.

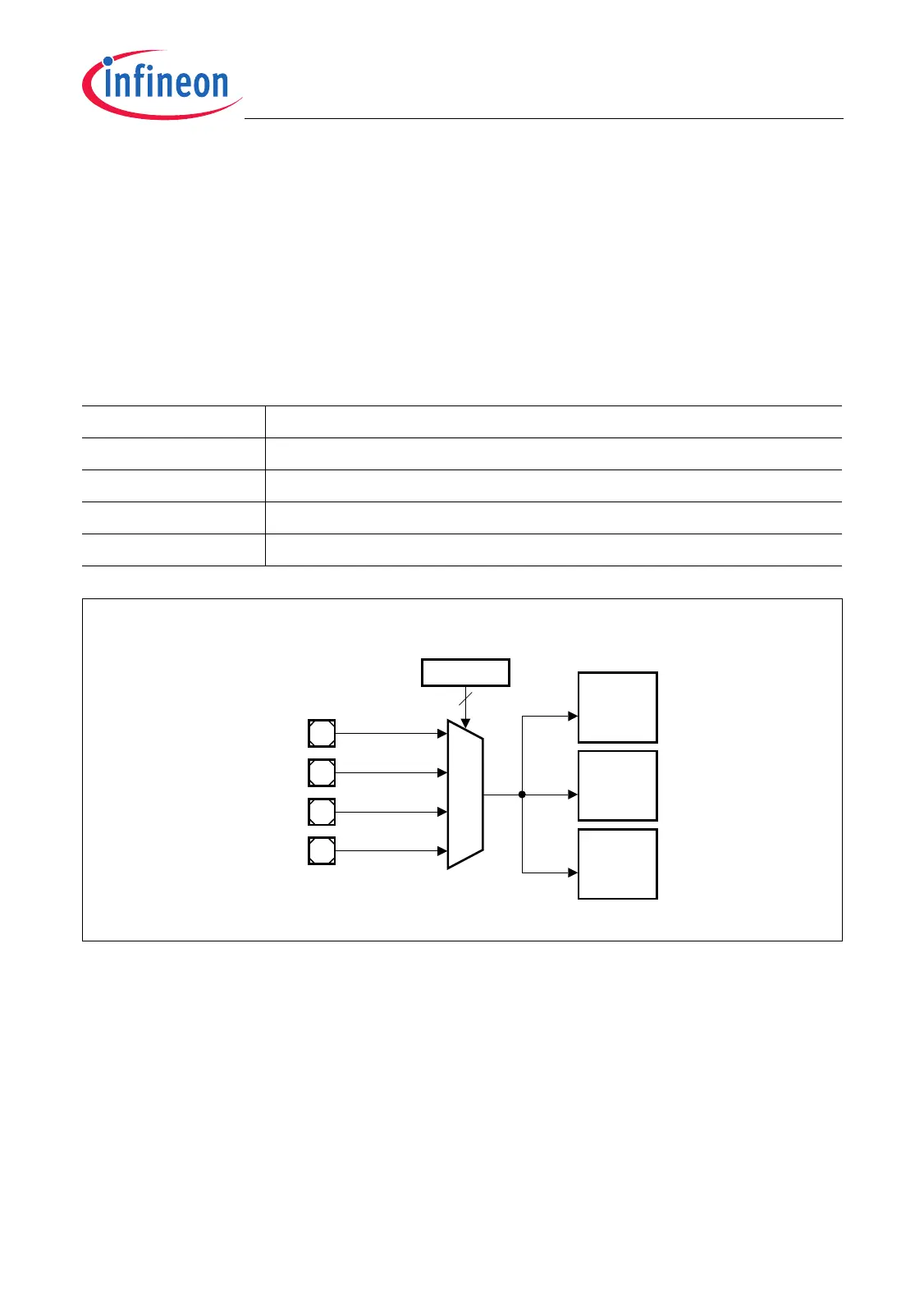

Figure 5-11 GPTA1 Input IN1 Control

Table 5-7 GPTA1 Input Line IN1 Connections

SCU_CON.GIN1S GPTA1 Input IN1 Connected to

P2.9 / IN1 (default after reset)

P5.0 / RXD0A

P6.8 / RXD0B

P6.10 / RXD1B

MCA05622_mod

P2.9 / IN1

P5.0 / RXD0A

GIN1S

SCU_CON

P6.8 / RXD0B

P6.10 / RXD1B

GPTA0

IN1

GPTA1

IN1

LTCA2

IN1
