TC1796

System Units (Vol. 1 of 2)

Watchdog Timer

User’s Manual 16-7 V2.0, 2007-07

WDT, V2.0

16.4.2 Operating Modes of the Watchdog Timer

The WDT can operate in one of four different operating modes:

• Time-Out Mode

• Normal Mode

• Disable Mode

• Prewarning Mode

The following overview describes these modes and how the WDT changes from one

mode to the other. As well as these major operating modes, the WDT has special

behavior during power-saving and OCDS suspend modes. Detailed discussions of each

of the modes can be found on Page 16-13.

Figure 16-3 is a state diagram of the different modes of the WDT and the transition

possibilities. Please refer to the description for the conditions for changing from one state

to the other.

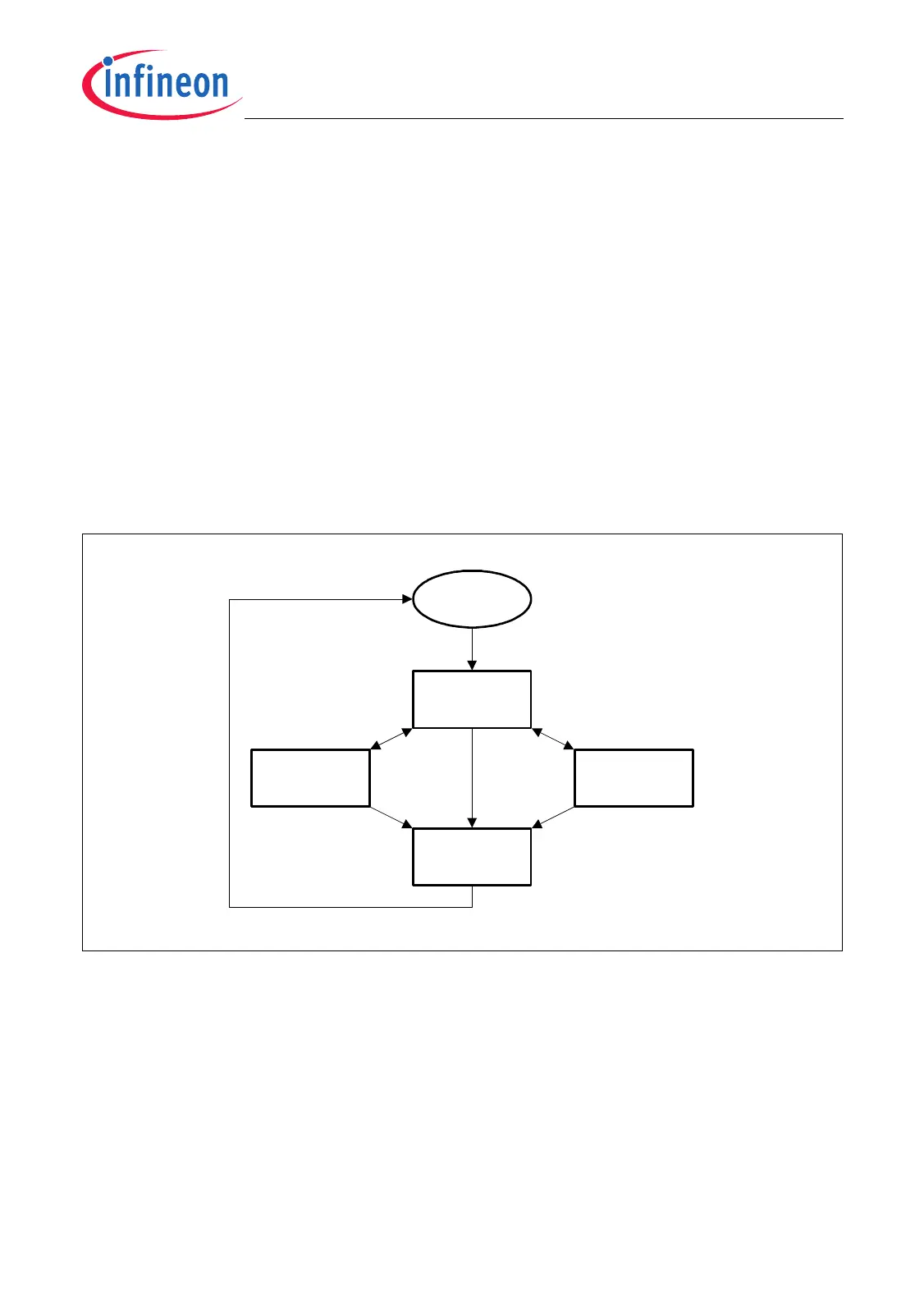

Figure 16-3 State Diagram of the WDT Operating Modes

MCA05752

Reset

Time-Out

Mode

Normal

Mode

Prewarning

Mode

Disable

Mode
