TC1796

System Units (Vol. 1 of 2)

General Purpose I/O Ports and Peripheral I/O Lines

User’s Manual 10-65 V2.0, 2007-07

Ports, V2.0

10.10 Port 7

This section describes the Port 7 functionality in detail.

10.10.1 Port 7 Configuration

Port 7 is an 8-bit bi-directional general-purpose I/O port that can be used for the external

trigger input lines REQ[7:4] or for the ADC0/ADC1 external multiplexer control output

lines.

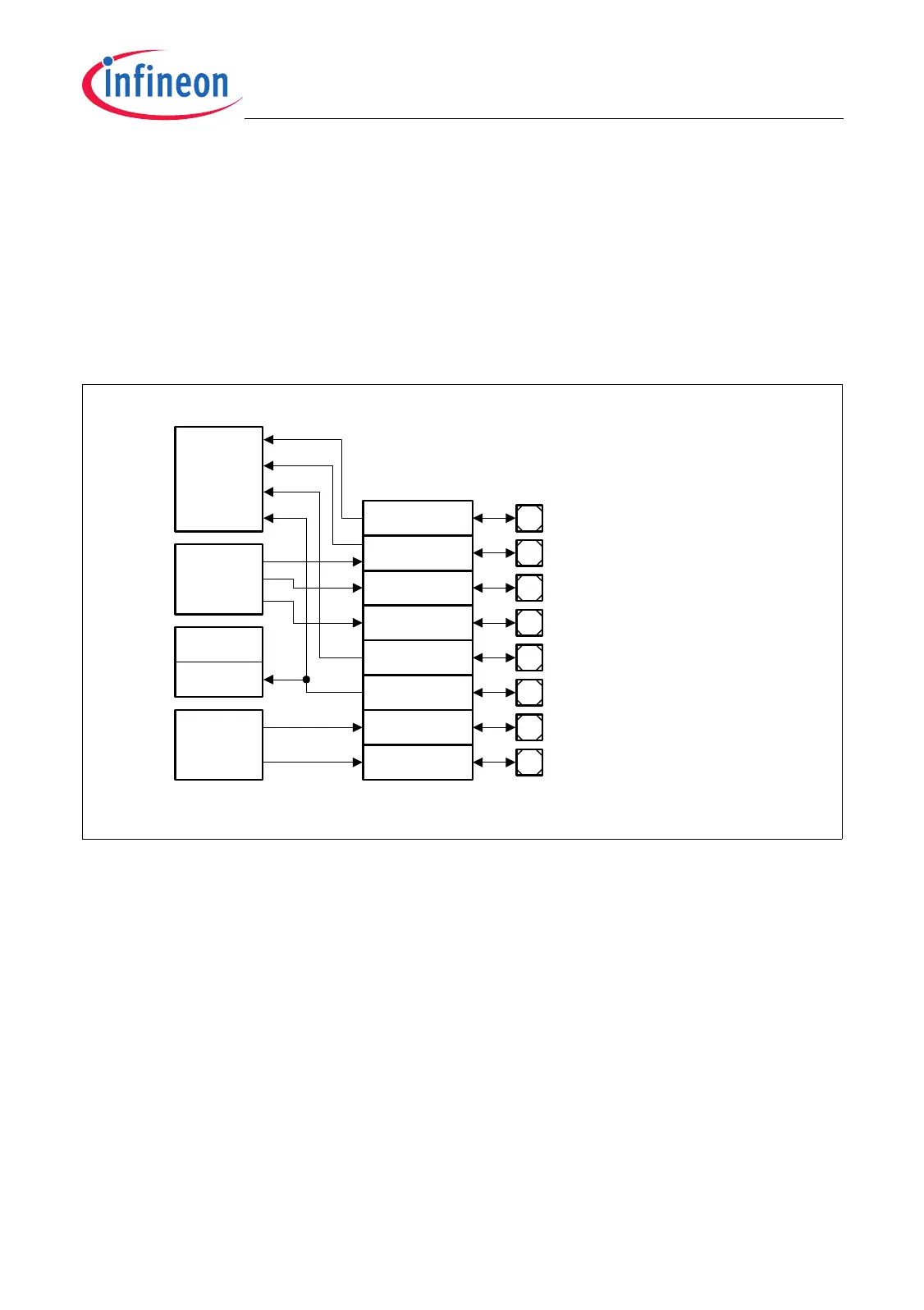

Figure 10-11 Port 7 Configuration Diagram

MCA05662

P7.4 / REQ6P6.8

P7.5 Control

P7.6 Control

P7.7 Control

P7.5 / REQ7

P7.6 / AD1EMUX0

P7.7 / AD1EMUX1

P7.3 / AD0EMUX1

P7.3 Control

P7.2 / AD0EMUX0

P7.2 Control

P7.1 / REQ5 / AD0EMUX2

P7.1 Control

P7.0 / REQ4

P7.0 Control

SCU

ADC0

P7.4 Control

ADC1

CAN

TTCAN
