TC1796

Peripheral Units (Vol. 2 of 2)

Micro Second Channel (MSC)

User’s Manual 21-30 V2.0, 2007-07

MSC, V2.0

21.1.4.2 Upstream Channel

As shown in Figure 21-22, the MSC upstream channel can be connected to up to eight

SDI[7:0] serial inputs. Bit field OCR.SDISEL selects one out of these input lines (input

signal SDI). If OCR.ILP = 0, SDI is directly connected to the serial receive buffer input

SI. If OCR.ILP = 1, SDI is connected to input SI via an inverter.

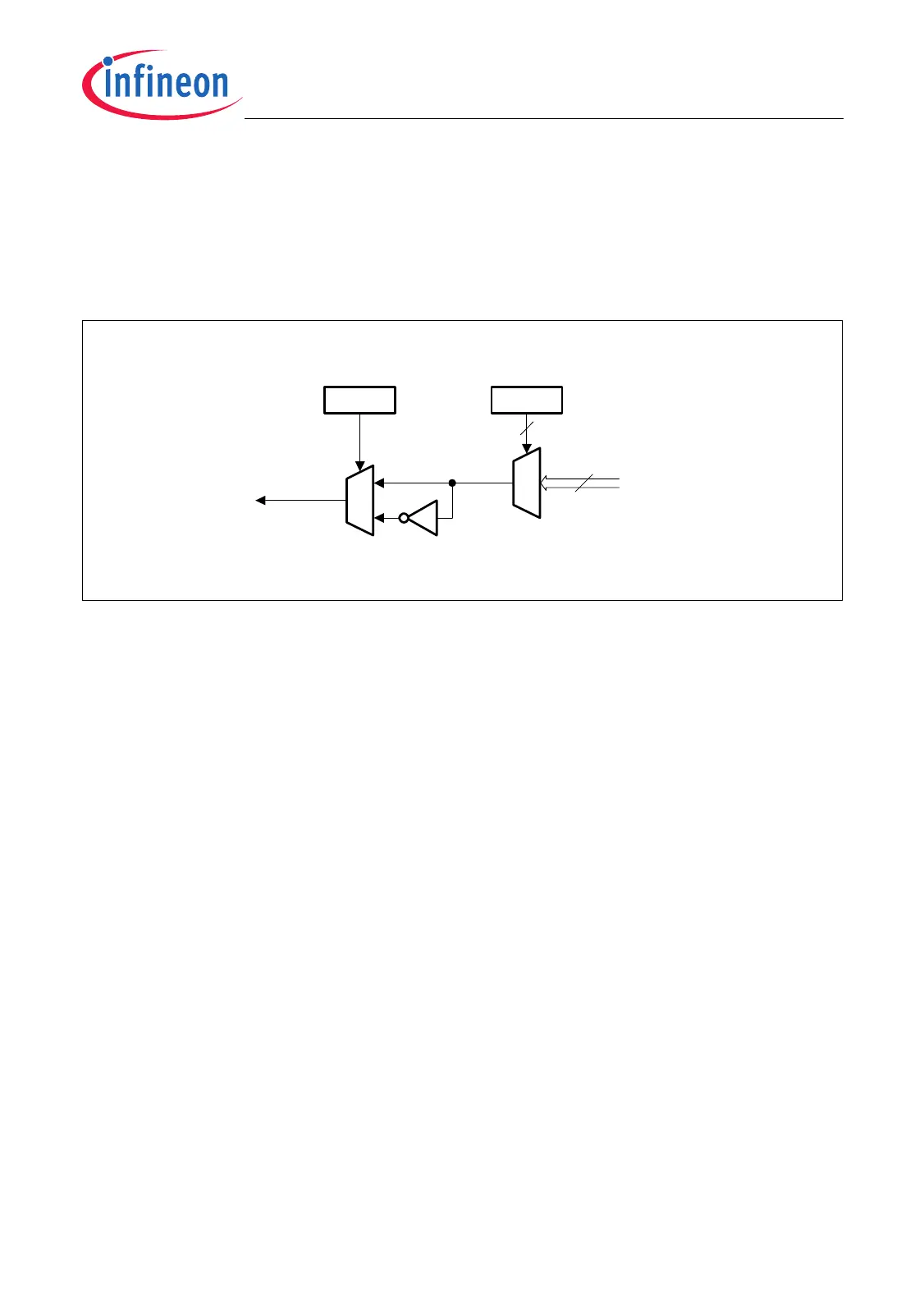

Figure 21-22 Upstream Channel Serial Data Input Control

MCA05816

ILP

OCR

SDI

SDI[7:0]

SDISEL

OCR
