TC1796

Peripheral Units (Vol. 2 of 2)

Micro Link Interface (MLI)

User’s Manual 23-62 V2.0, 2007-07

MLI, V2.0

23.2.6.3 Normal Frame Received/Move Engine Terminated Event

A Normal Frame received event is generated if the MLI receiver has correctly received

a Normal Frame (a Copy Base Address Frame, a Read or a Write Frame, an Answer

Frame, but not a Command Frame ) or if the move engine has terminated its read or write

access. Both event sources have separate status/control bits but are concatenated to

one common Normal Frame received event.

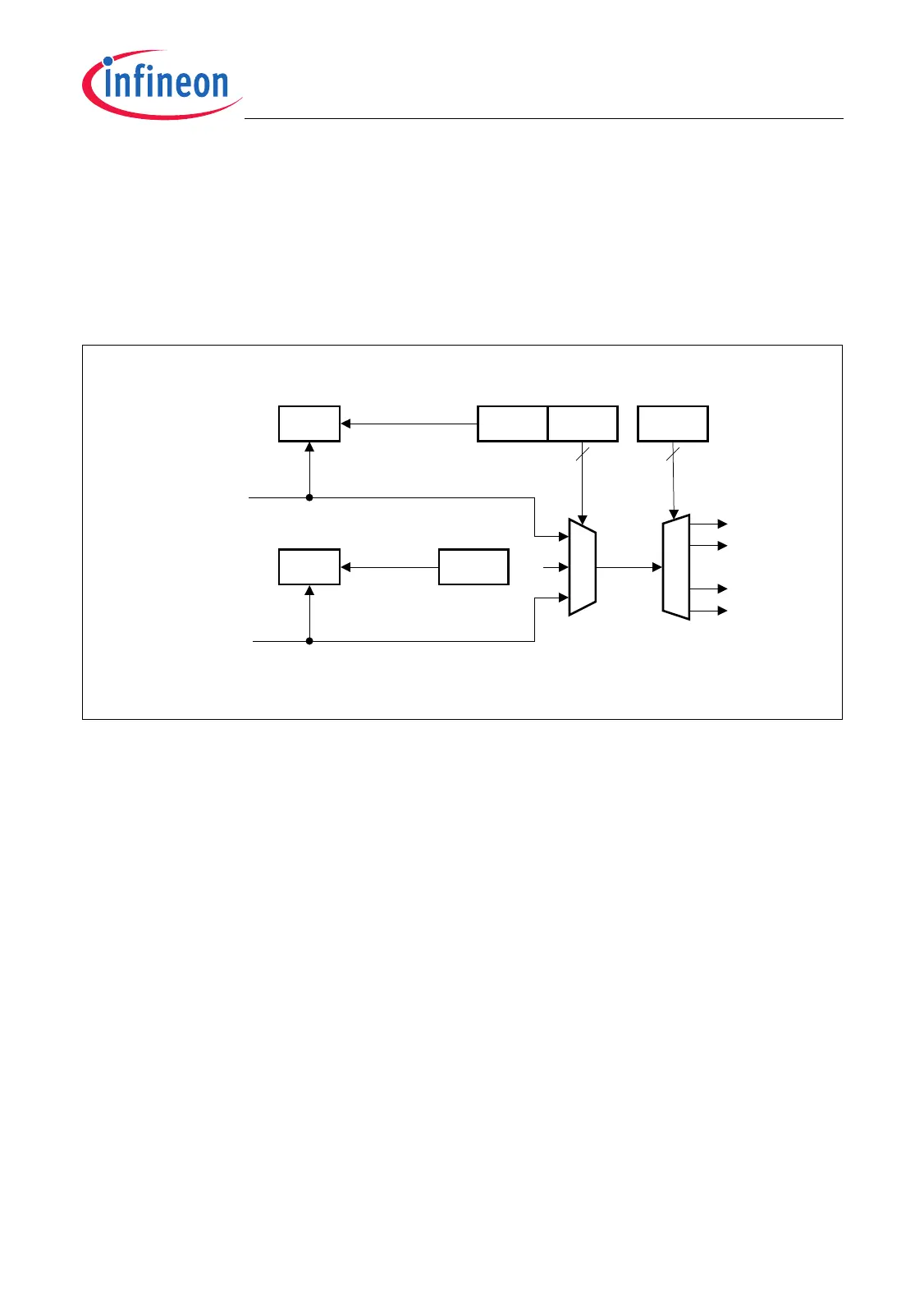

Figure 23-44 Normal Frame Received Event Logic

NFRIE

RIER

NFRIRNFRI

RISR

Set

MCA05901_mod

RIER

MEIRMEI

RISR

Set

Normal

Frame

Received

Event

Software

Clear

Software

Clear

Normal Frame

Correctly

Received

Event

Move Engine

Access

Correctly

Terminated

Event

NFRIP

RINPR

To SR0

To SR1

To SR6

To SR7
