TC1796
Peripheral Units (Vol. 2 of 2)
Micro Link Interface (MLI)
User’s Manual 23-2 V2.0, 2007-07
MLI, V2.0
23.1 Functional Description
This chapter describes the functionality of the MLI interface.
A general introduction to the interface (see Page 23-2)
The MLI frame structure for data exchange (see Page 23-10)
23.1.1 General Introduction
The introduction comprises:
An overview about the MLI (see Page 23-2)
Naming conventions (see Page 23-3)
A description of the MLI communication principles (see Page 23-6)
23.1.1.1 MLI Overview
The Micro Link Interface (MLI) is a fast synchronous serial interface to exchange data
between microcontrollers or other devices, such as stand-alone peripheral components.

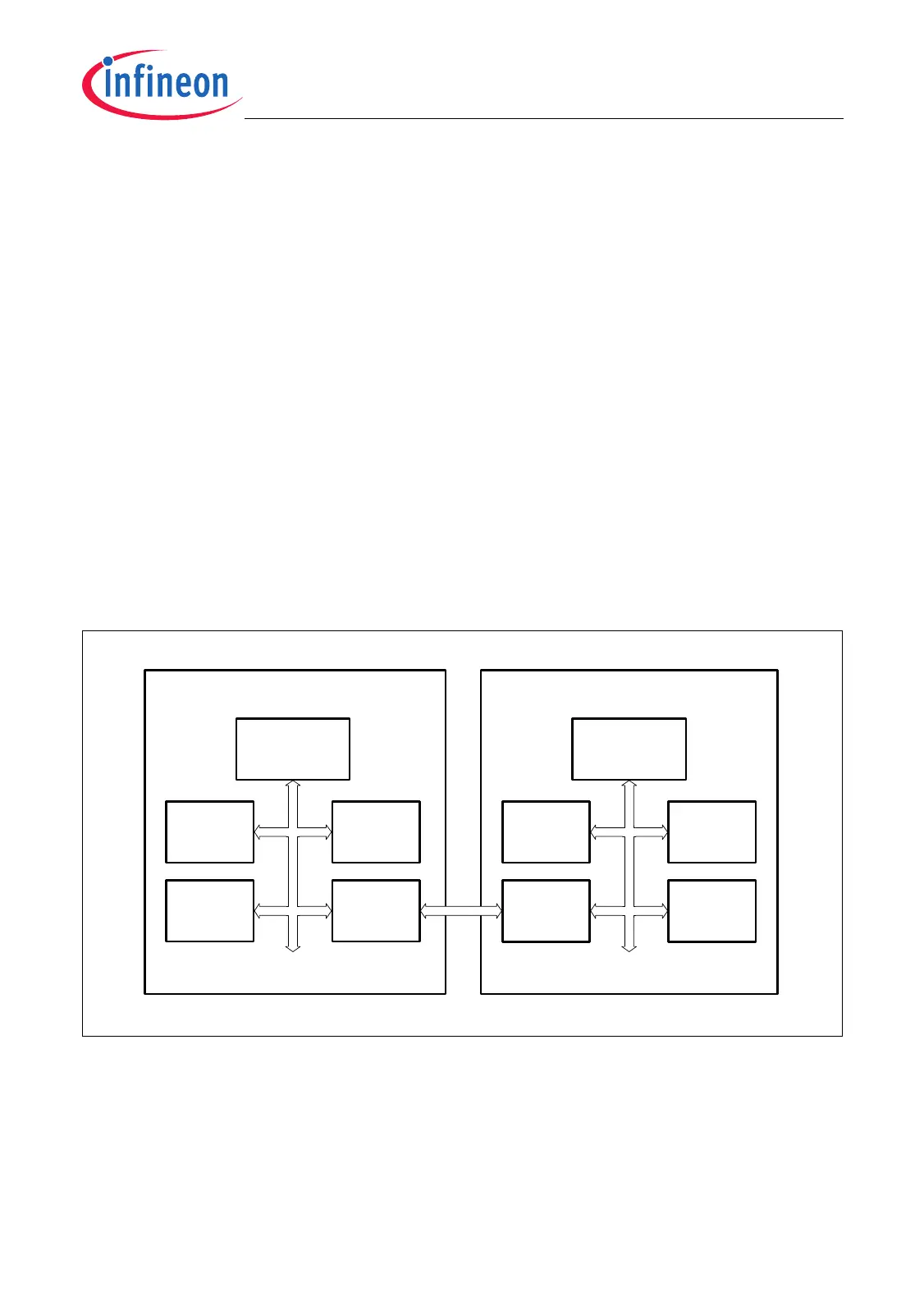

Figure 23-1 shows how two microcontrollers are typically connected together via their
MLI interfaces.
Figure 23-1 Typical Micro Link Interface Connection
Features
Synchronous serial communication between an MLI transmitter and an MLI receiver
Different system clock speeds supported in MLI transmitter and MLI receiver due to
full handshake protocol (4 lines between a transmitter and a receiver)
Fully transparent read/write access supported (= remote programming)
MCA05869
Controller 1
CPU
Peripheral
B
Peripheral
A
MLI
System Bus
Controller 2
CPU
Peripheral
D
Peripheral
C
MLI
System Bus
Memory Memory
