TC1796

System Units (Vol. 1 of 2)

General Purpose I/O Ports and Peripheral I/O Lines

User’s Manual 10-70 V2.0, 2007-07

Ports, V2.0

10.11 Port 8

This section describes the Port 8 functionality in detail.

10.11.1 Port 8 Configuration

Port 8 is an 8-bit bi-directional general-purpose I/O port which can be used for the MLI1

interface lines or for the GPTA0/GPTA1 I/O lines.

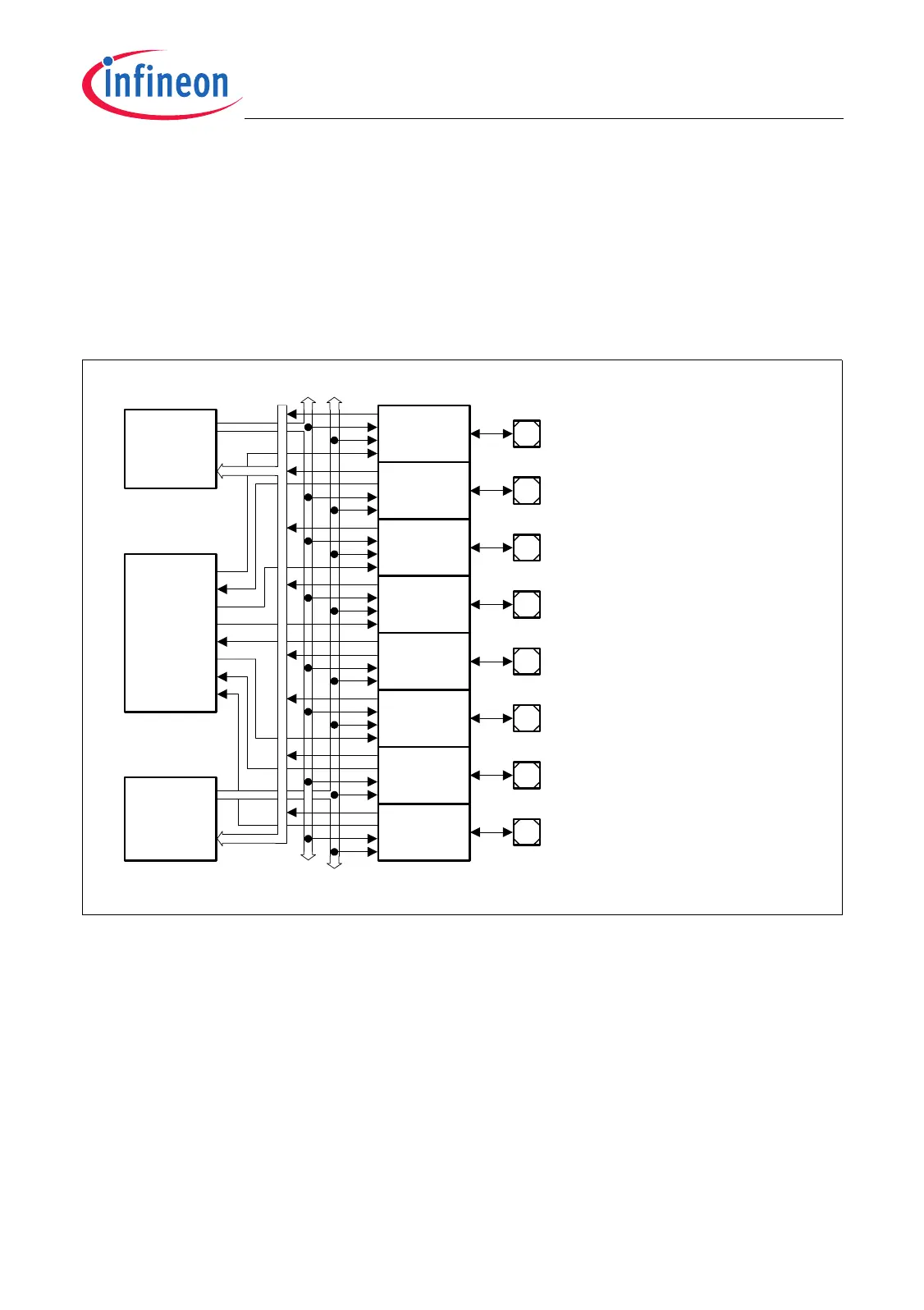

Figure 10-12 Port 8 Configuration Diagram

MCA05663

P8.0 / TCLK1 / IN/40/ OUT40

P8.0

Control

P8.1

Control

P8.2

Control

P8.3

Control

P8.4

Control

P8.5

Control

P8.6

Control

P8.7

Control

GPTA1

GPTA0

P8.1 / TREADY1A / IN41 / OUT41

P8.2 / TVALID1A / IN42 / OUT42

P8.3 / TDATA1 / IN43 / OUT43

P8.4 / RCLK1A / IN44 / OUT44

P8.5 / RREADY1A / IN45 / OUT45

P8.6 / RVALID1A / IN46 / OUT46

P8.7 / RDATA1A / IN47 / OUT47

MLI1
