12.1.4.2 DMA Channel Request Control

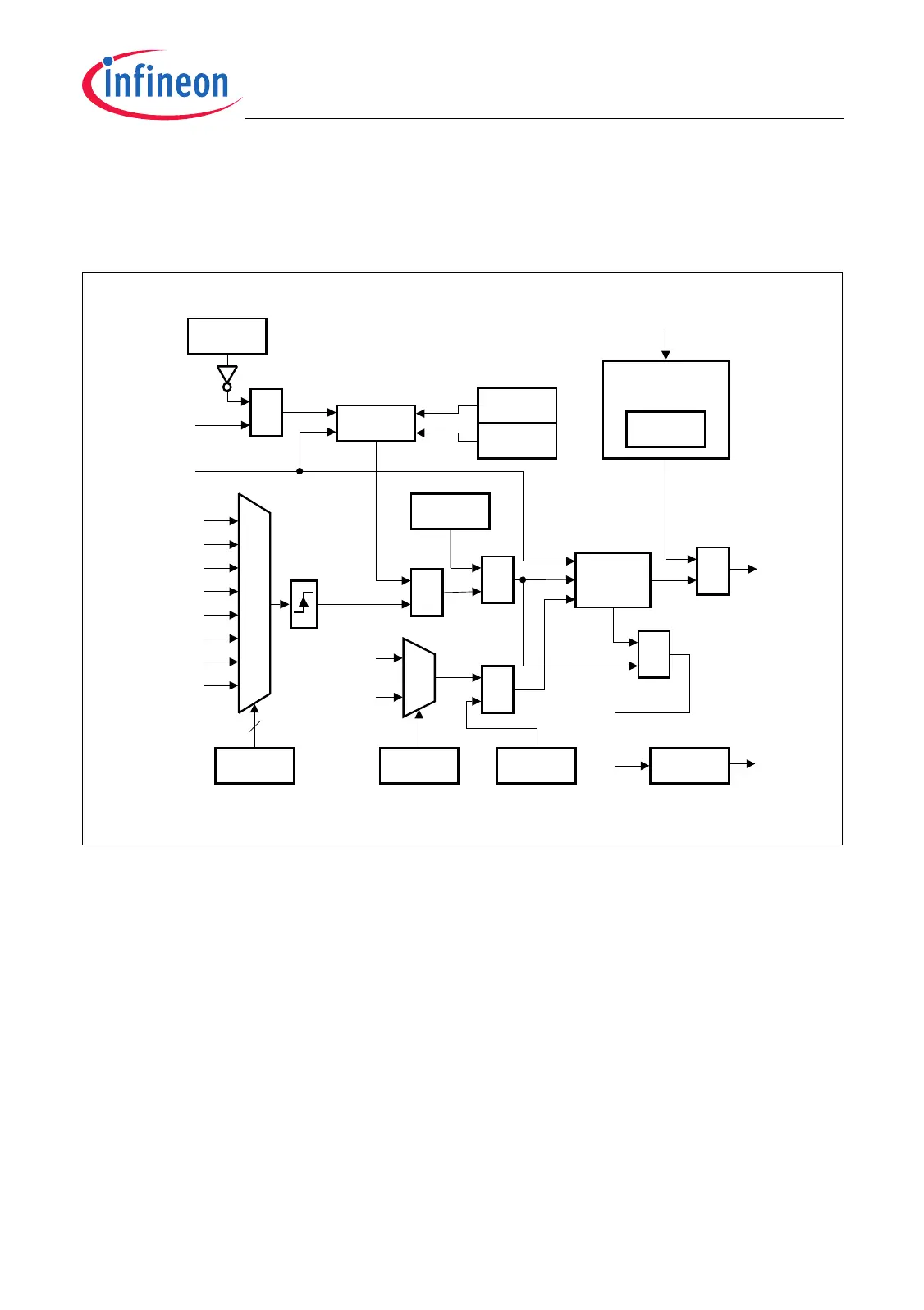

Figure 12-6 shows the control logic for DMA requests that is implemented for each DMA
channel.
Figure 12-6 Channel Request Control
Two different types of DMA requests are possible:
• Hardware DMA requests
• Software DMA requests
The hardware request CHmn_REQ can be connected to one of eight possible hardware
request input lines as selected by bit field CHCRmn.PRSEL. Hardware requests are
enabled/disabled by status bit TRSR.HTREmn. HTREmn can be set/cleared by software
or by hardware in Single Mode at the end of a DMA transaction. A software request can
be generated by setting bit STREQ.SCH0n.
Status flag TRSR.CHmn indicates whether or not a software or hardware generated
DMA request for DMA channel mn is pending. TRSR.CHmn can be cleared by software
or by hardware at the end of a DMA transfer (RROAT = 0) or at the end of a DMA
transaction (RROAT = 1).
