23.2.3.1 Transmitter I/O Line Control

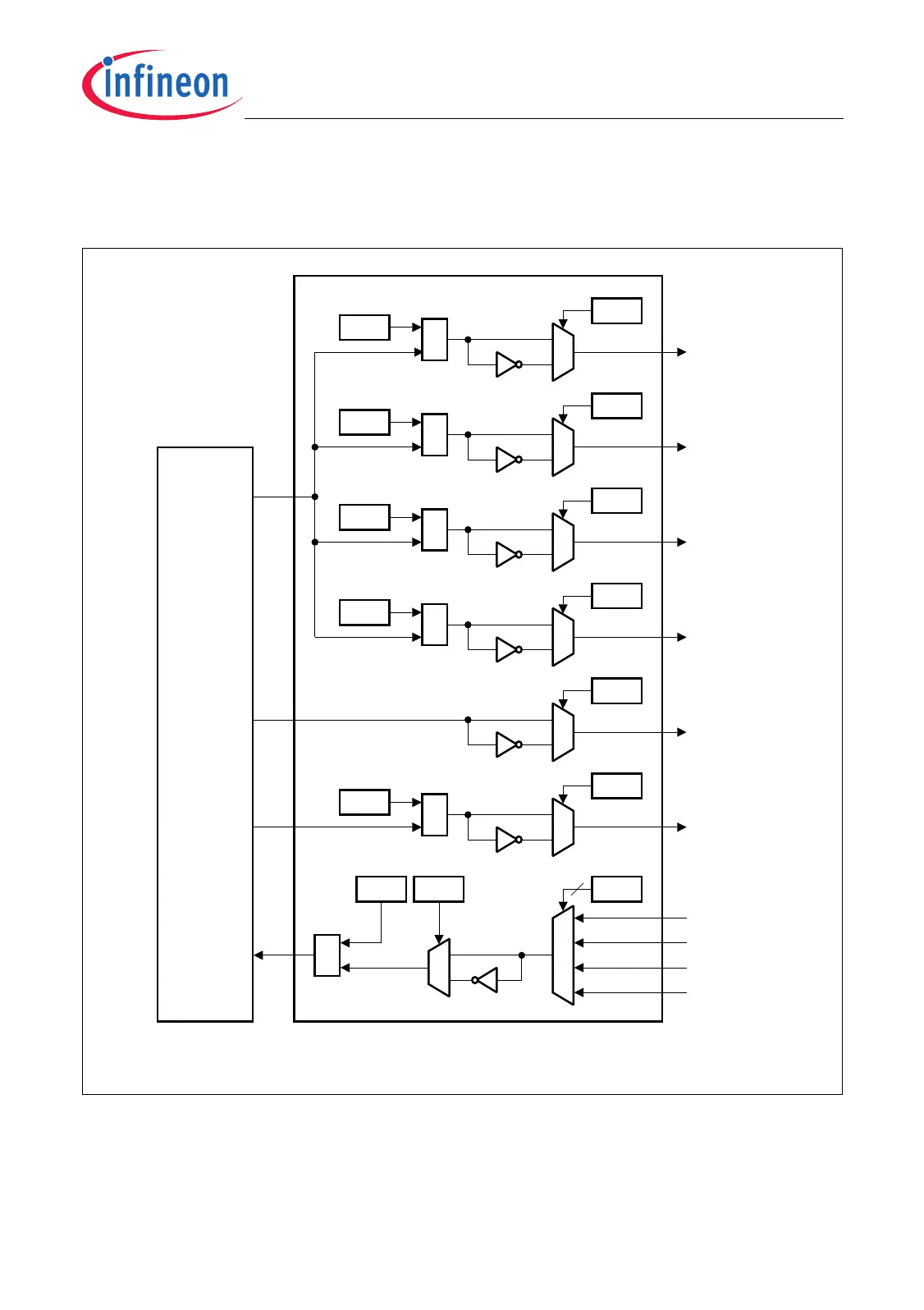

Figure 23-35 shows the MLI transmitter I/O control logic.

Figure 23-35 Transmitter Input/Output Control Logic

23.2.3.2 Receiver I/O Line Control

Figure 23-36 shows the MLI receiver I/O control logic.

MCA05886_mod

TVALID

TDATA

TCLK

TVALIDB

TVEB

TVPB

TDATA

TRS

TREADYA

TREADYB

TREADYC

TREADYD

TRP

TRE

TREADY

MLI

Transmitter

MLI Transmitter

I/O Control Logic

Note: All control bits shown in this figure are located in register OICR .

TVALIDA

TVEA

TVPA

TVALIDD

TVED

TVPD

TVALIDC

TVEC

TVPC

TDP

TCLK

TCE

TCP
