19.3.2.2 Peripheral Input Select Registers

The ASC0/ASC1 modules include a peripheral input select register that is used to switch

the RXD input lines of the ASC0/ASC1 module kernels alternatively to Port 5 or Port 6

as shown in Table 19-14. Register ASC0_PISEL controls the RXD input selection for

ASC0, and ASC1_PISEL controls the RXD input selection for ASC1.

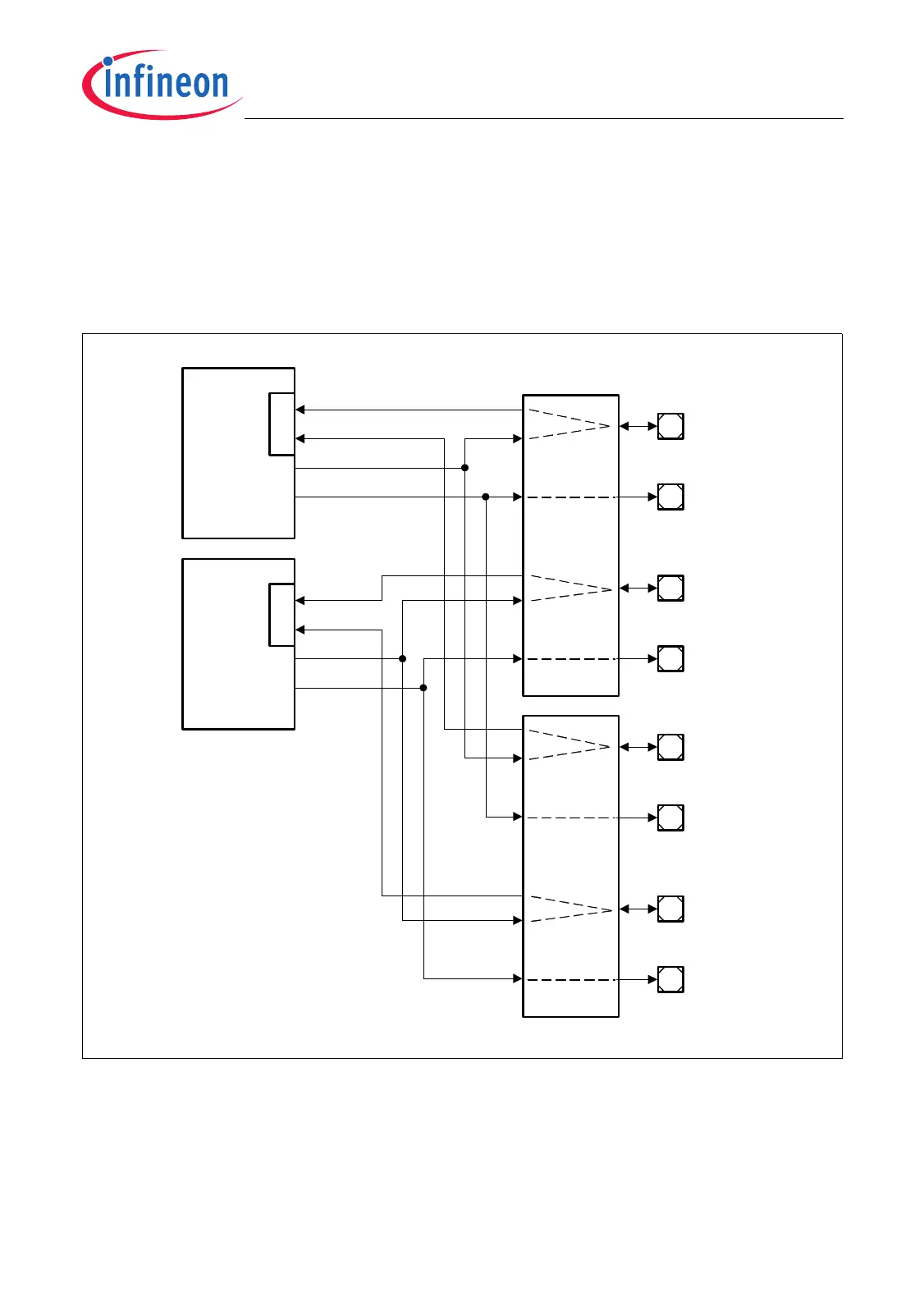

Figure 19-14 RXD Input Line Selection of the ASC Modules

ASC0

Module

(Kernel)

ASC1

Module

(Kernel)

MCA05775

P5.0 /

RXD0A

P5.1 /

TXD0A

RXD_I1

RXD_O

PISEL

RXD_I0

Port 5

Control

TXD_O

P5.2 /

RXD1A

P5.3 /

TXD1A

RXD_I1

RXD_O

PISEL

RXD_I0

TXD_O

P6.8 /

RXD0B

6.9 /

TXD0B

Port 6

Control

P6.10 /

RXD1B

P6.11 /

TXD1B
