TC1796

Peripheral Units (Vol. 2 of 2)

Controller Area Network (MultiCAN) Controller

User’s Manual 22-41 V2.0, 2007-07

MultiCAN, V2.0

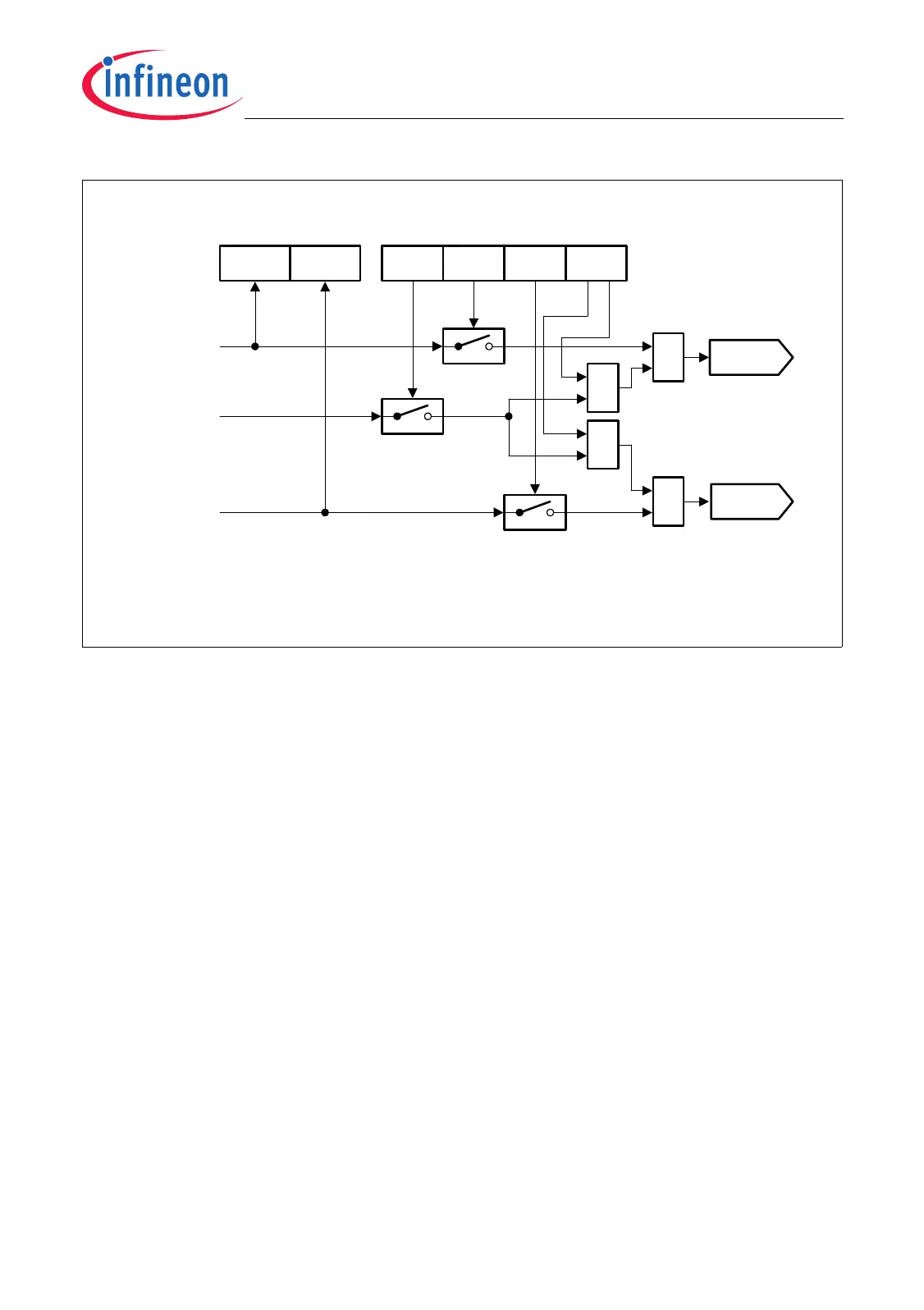

Figure 22-17 Message Interrupt Request Routing

MCA05843

TXIE

TXINP

TXPND

Message n

Received

Message n

Transmitted

RXINP

MOSTATn MOFCRn

MOIPRn

Message n

FIFO full

OVIE RXIERXPND MMC

≥1

= 0001

= 0010

≥1

MMC = 0001

: Message object n is a Receive FIFO Base Object

MMC = 0010

: Message object n is a Transmit FIFO Base Object
