TC1796

Peripheral Units (Vol. 2 of 2)

General Purpose Timer Array (GPTA)

User’s Manual 24-46 V2.0, 2007-07

GPTA, V2.0

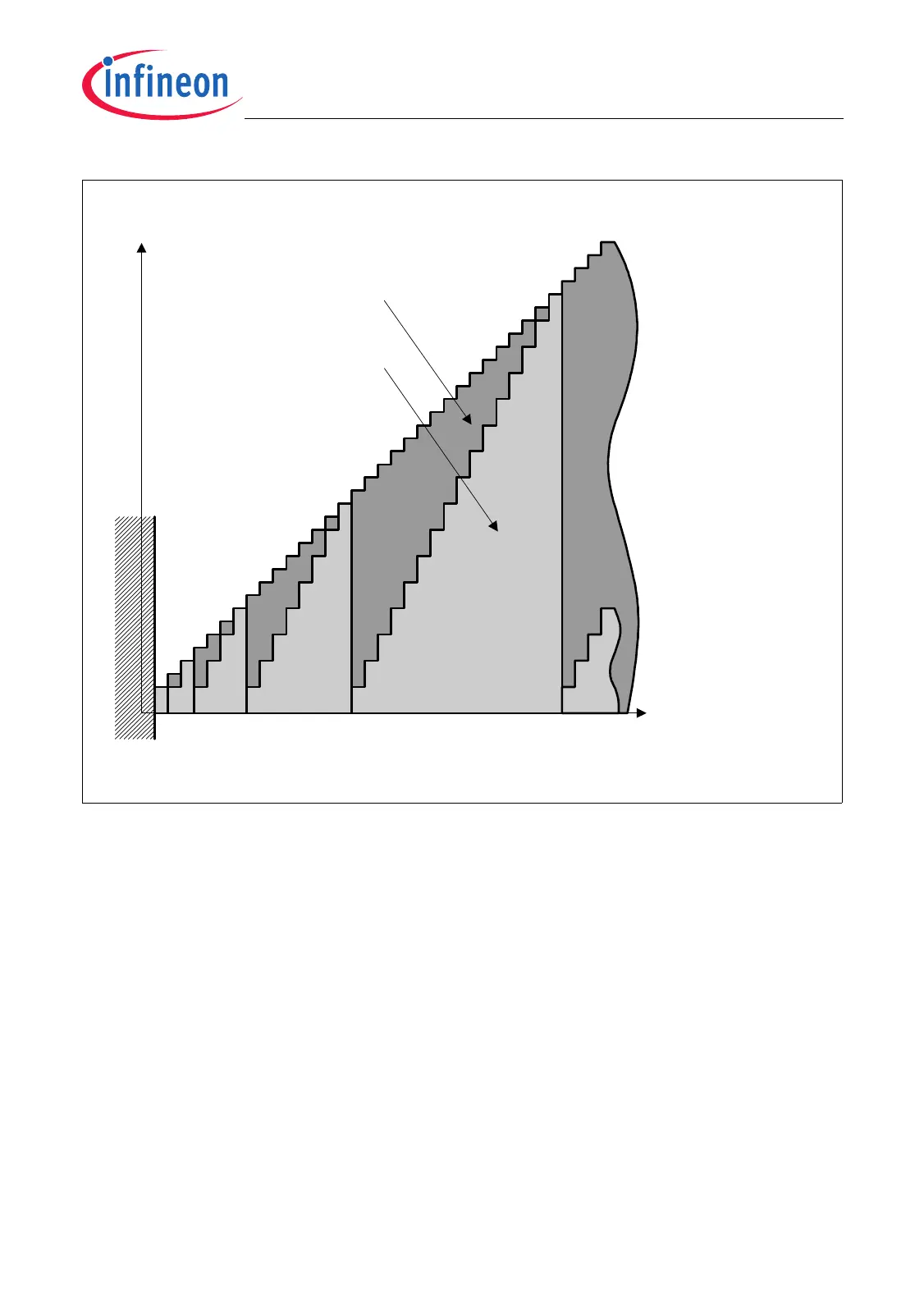

Figure 24-34 Core Observation Window Sizes Versus Period Sizes

MCT05943

1 2 4 8 16 32

Period

Observation Window

Core Observation Window

Width of Core

Observation Window =

2 x (period - 2

k

)

Condition:

2

k

< period

≤ 2 × 2

k
