The software-controlled mode that initiates a single DMA transfer to be executed is

selected for DMA channel mn by the following write operations:

• CHCRmn.RROAT = 0

• STREQ.SCHmn = 1, repeated for each DMA transfer

When CHCRmn.RROAT = 0, TRSR.CHmn becomes cleared after each DMA transfer of

the DMA transaction and a new software request (writing STREQ.SCHmn = 1) must be

generated for starting the next DMA transfer.

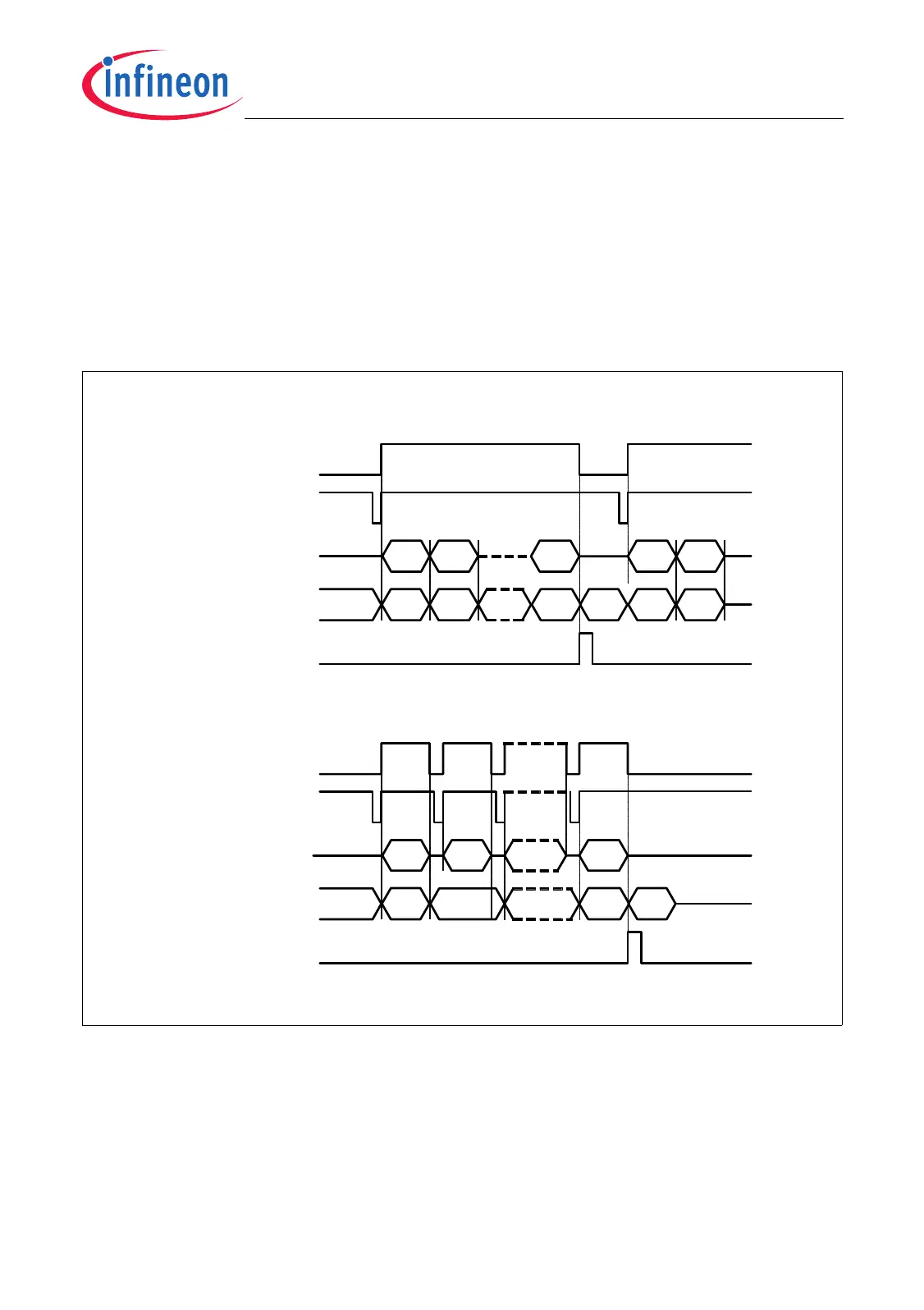

Figure 12-7 Software-controlled Mode Operation

TR0 TR1 TRn

tc-1

tc = initial transfer count

TR0 TR1

0 tc 1 0 tc tc-1

MCT05686

TR0 TR1 TRn

tc = initial transfer count

0tc 0

CHCRmn.RROAT = 1

CHCRmn.RROAT = 0

1tc-1

CHSRmn.TCOUNT

DMA Transfer mn

TRSR.CHmn

INTmn

(triggered by

TCOUNT = 0)

Writing

STREQ.SCHmn = 1

CHSRmn.TCOUNT

DMA Transfer mn

TRSR.CHmn

INTmn

(triggered by

TCOUNT = 0)

Writing

STREQ.SCHmn = 1
