TC1796

System Units (Vol. 1 of 2)

LMB External Bus Unit

User’s Manual 13-13 V2.0, 2007-07

EBU, V2.0

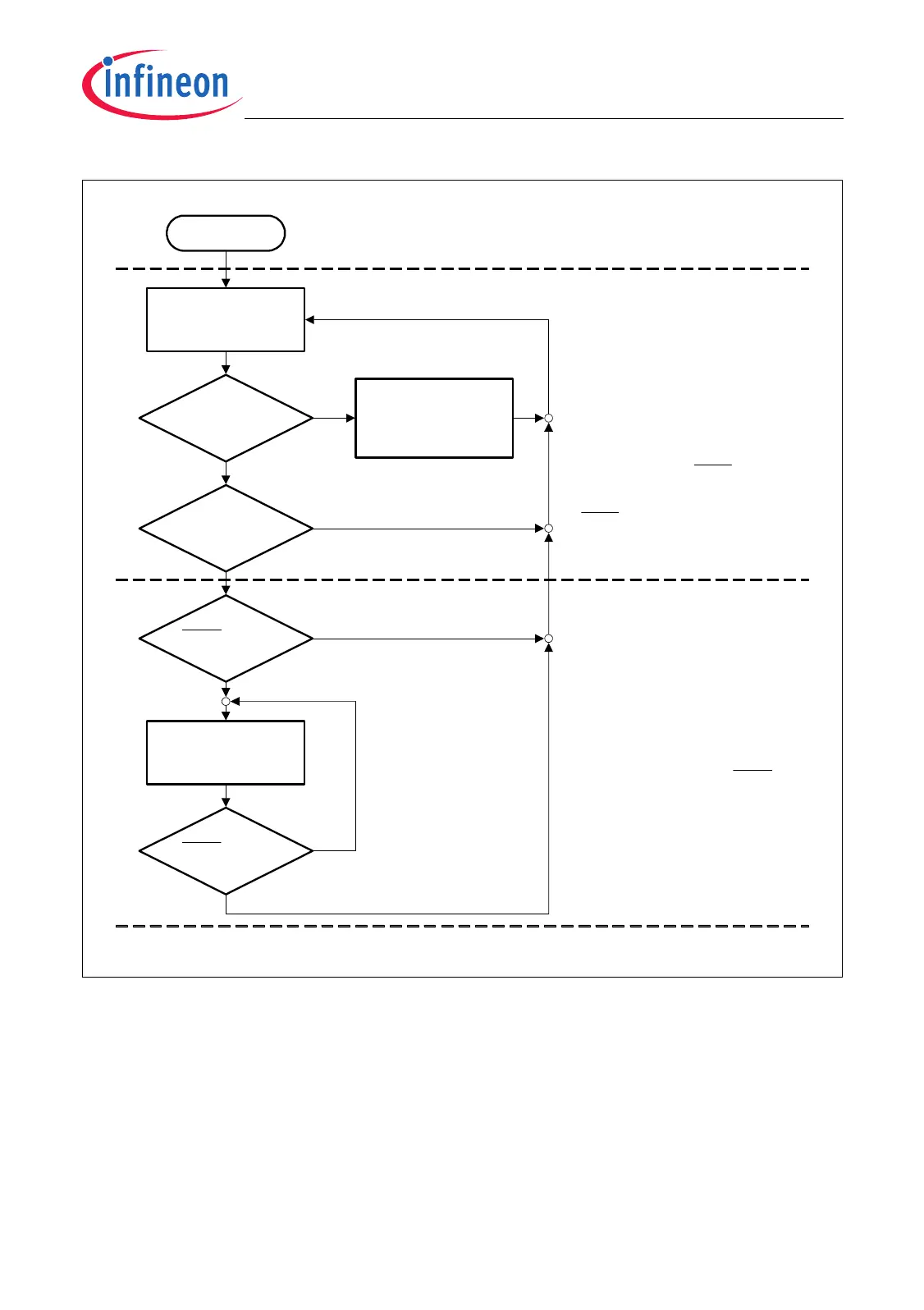

Figure 13-5 Bus Ownership Control in Arbiter Mode

MCA05716

EBU in Owner Mode

(i.e. owner of the

external bus)

The EBU holds ownership of the

external bus:

While EXTLOCK = 1

Until all current/queued external

accesses are completed.

When the external master requests

the external bus (HOLD = 0) and

conditions are appropriate the EBU

releases ownership of the bus by

HLDA = 0.

Start

PLMB access

to external bus

is starting?

EBU_CON.

EXTLOCK = 1?

HOLD = 0?

EBU in Hold Mode

(i.e. not owner of the

external bus)

Perform Appropriate

External Bus Access

(for read access return

result to PLMB)

yes

HOLD = 0?

yes

The EBU remains in Hold Mode

until the bus is released by the

external master (signalled by the

external master setting HOLD = 1).
